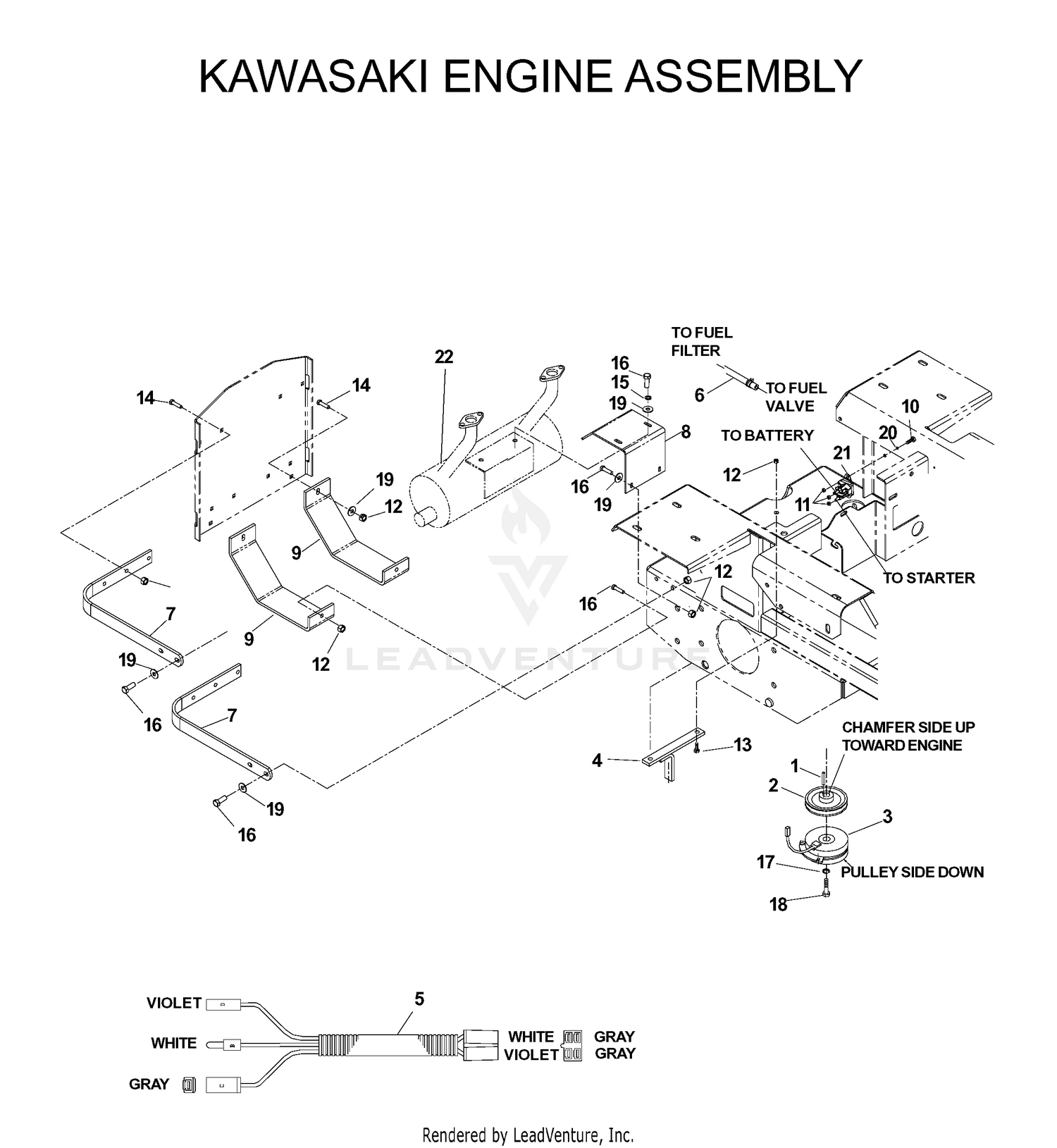

| Ref | Part Number | Description |
|---|
| 1 |
539912757 |
KEY, 1/4 SQ X 1 1/4 Price: $3.99 |
| 2 |
539106992 |
PULLEY Price: $64.99 |
| 3 |
539106880 |
CLUTCH-200 FT LB(RPLS 5218-102 Price: $449.99 |
| 4 |
539106819 |
CLUTCH TIE DOWN Price: $36.99 |
| 5 |
539104415 |
KAW PIGTAIL Price: $27.99 |
| 6 |
539105382 |
FUEL LINE 30" This part replaces 539105281. Price: $11.99 |
| 7 |
539106961 |
ENGINE SHROUD BRKT Price: $17.99 |
| 8 |
539106886 |
MUFFLER BRACKET Price: $14.99 |
| 9 |
539106957 |
SKID PLATE Price: $17.99 |
| 10 |
112-0185 |
TAPPET Price: $25.58 |
| 11 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 12 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 13 |
874780528 |
SCREW This part replaces 539990669. Price: $4.99 |
| 14 |
596435701 |
Bolts This part replaces 539107271. Price: $2.99 |
| 15 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 16 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 17 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 18 |
539991120 |
BOLT 7/16F X 2 1/2 Price: $5.99 |
| 19 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 20 |
127-0421 |
ROD-PUSH Price: $5.90 |
| 20 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 21 |
539101714 |
SOLENOID Price: $22.99 |
| 22 |
539106890 |
MUFFLER 18HP KAW Price: $187.01 |
| 30 |
130-1545 |
CAMSHAFT ASM Price: $592.11 |
| 40 |
110-3729 |
BALL Price: $0.69 |
| 50 |
98-9512 |
GEAR-CAM Price: $246.18 |
| 60 |
98-9378 |
KEY-FEATHER Price: $1.23 |
| 70 |
98-9510 |
STOPPER-CAMSHAFT Price: $12.25 |
| 80 |
98-7692 |
BOLT Price: $0.92 |
| 90 |
117-7584 |
IDLER GEAR ASM Price: $240.81 |
| 100 |
117-7585 |
BUSHING-GEAR, IDLE Price: $9.36 |
| 110 |
98-9535 |
COLLAR-GEAR, IDLE Price: $2.37 |
| 120 |
98-9536 |
COLLAR-GEAR, IDLE Price: $3.41 |
| 130 |
98-9534 |
CIRCLIP-GEAR, IDLE Price: $1.69 |
| 140 |
98-9533 |
SHAFT-GEAR, IDLE Price: $101.45 |
| 539105897 |
539105897 |
MUFFLER KAWASAKI GEN II Price: $349.99 |
