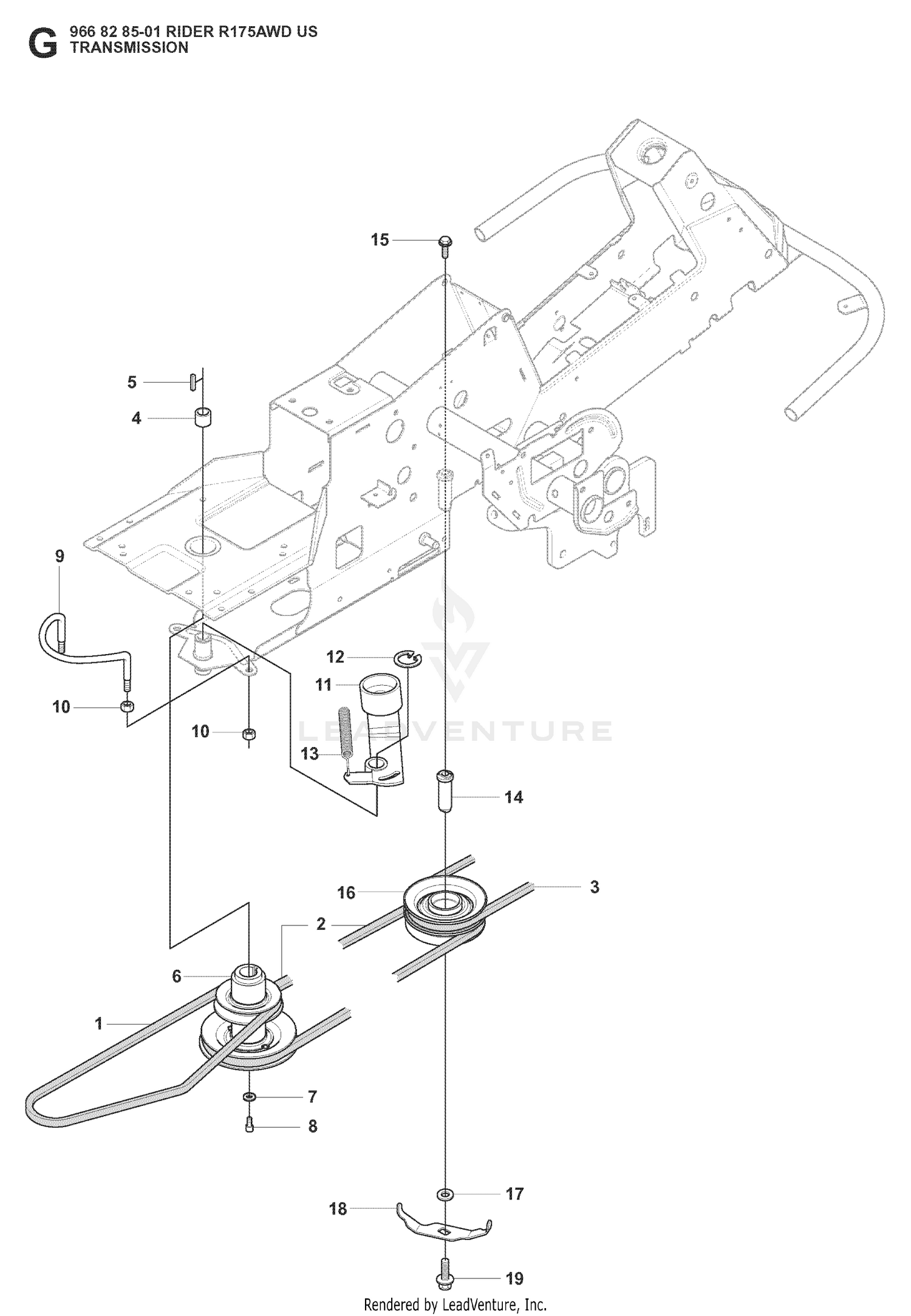

TRANSMISSION
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-2900 | TIRE AND WHEEL ASM Price: $361.51 |
| 1 | 589531201 | BELT Price: $27.99 |
| 2 | 120-0248-03 | ADAPTER-BRAKE Price: $87.89 |
| 2 | 599675902 | BELT KIT This part replaces 589530401. Price: $44.99 |
| 3 | 120-0235 | LH BRAKE ASM Price: $496.71 |
| 4 | 114-8864 | DRUM-BRAKE Price: $248.55 |
| 4 | 506509201 | SPACER Price: $9.99 |
| 5 | 115-0199-0P | SPACER-WHEEL This part replaces 115-0199-03. Price: $26.81 |
| 5 | 506555901 | KEY Price: $3.99 |
| 6 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 6 | 535482401 | PULLEY Price: $69.99 |
| 7 | 283-62 | PIN-CLEVIS Price: $0.61 |
| 7 | 506597501 | WASHER Price: $6.99 |
| 8 | 139-2564 | NUT-LUG This part replaces 242-50. Price: $0.99 |
| 8 | 506556002 | SCREW Price: $5.99 |
| 9 | 120-0233 | RH BRAKE ASM Price: $496.71 |
| 9 | 506664501 | BELT GUIDE Price: $19.99 |
| 10 | 115-0132 | BRACKET-SPRING, RETURN Price: $17.04 |
| 10 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 11 | 535484401 | TENSIONER Price: $54.99 |
| 11 | 87-4020 | SPRING-EXTENSION Price: $17.01 |
| 12 | 119-1352-03 | BRACKET-BRAKE CABLE, RH Price: $14.53 |
| 12 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 13 | 325-2 | SCREW-HH Price: $1.02 |
| 13 | 506665601 | SPRING Price: $24.99 |
| 14 | 119-1449-03 | BRACKET-BRAKE CABLE, LH Price: $12.21 |
| 14 | 581916401 | SHAFT This part replaces 544426101. Price: $19.99 |
| 15 | 323-5 | SCREW-HH Price: $0.41 |
| 15 | 506675402 | BOLT Price: $5.99 |
| 16 | 323-6 | SCREW-HH Price: $0.66 |
| 16 | 535482201 | PULLEY Price: $64.99 |
| 17 | 3334-945 | TIE-CABLE Price: $0.43 |
| 17 | 506775701 | WASHER Price: $4.99 |
| 18 | 3290-378 | TIE-CABLE Price: $0.79 |
| 18 | 544405301 | BELT GUIDE Price: $6.99 |
| 19 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
