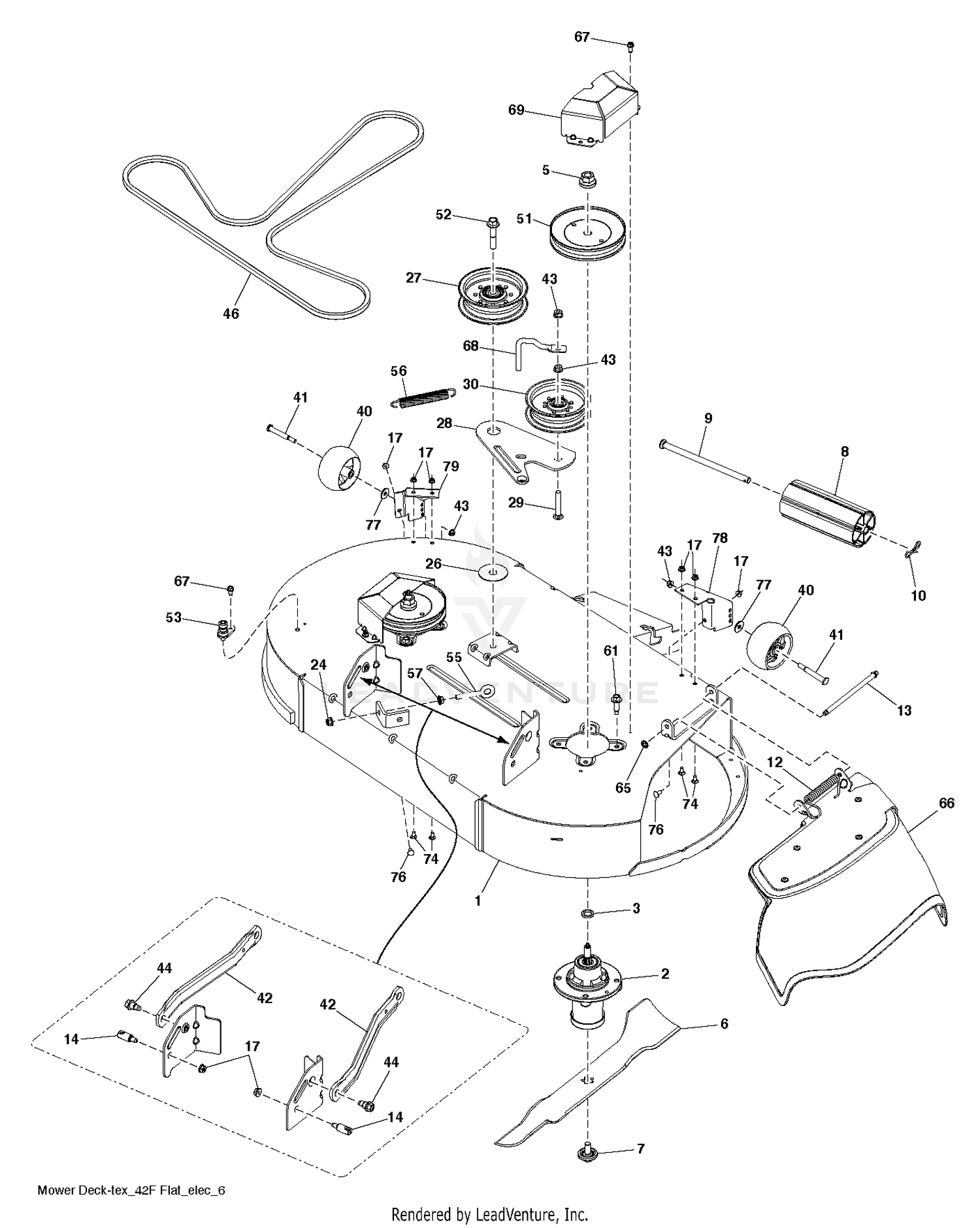

| Ref | Part Number | Description |
|---|
| 1 |
591117901 |
SERVICE KIT SVC.WELDMENT.42F This part replaces 589029002. Price: $899.99 |
| 1 |
98-7765 |
WATER FLANGE ASM Price: $212.88 |
| 2 |
539112170 |
MANDREL.DECK.ASSEMBLY Price: $69.99 |
| 2 |
98-7766 |
PIPE-RETURN, WATER Price: $9.95 |
| 3 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 3 |
98-7767 |
GASKET-FLANGE, WATER Price: $4.58 |
| 4 |
100-2562 |
BOLT This part replaces 98-7610. Price: $2.79 |
| 5 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 5 |
98-7769 |
STUD Price: $1.76 |
| 6 |
586918102 |
BLADE.42.FCS.BAGGING.BLADE. This part replaces 586918101. Price: $27.99 |
| 6 |
99-8336 |
BOLT This part replaces 98-7554. Price: $3.41 |
| 7 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 7 |
98-7534 |
NUT Price: $0.48 |
| 8 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 8 |
98-7535 |
WASHER-SPRING Price: $0.32 |
| 9 |
594092501 |
Rods This part replaces 532179127. Price: $5.99 |
| 9 |
98-7773 |
PIPE-RETURN, WATER Price: $9.79 |
| 10 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 10 |
98-7774 |
BAND-PIPE Price: $3.88 |
| 12 |
587354701 |
SPRING.42.FCS.DEFLECTOR Price: $5.99 |
| 13 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 13 |
98-7775 |
COVER-THERMOSTAT Price: $15.96 |
| 14 |
105-3748 |
GASKET-THERMOSTAT This part replaces 98-7776. Price: $4.31 |
| 14 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 15 |
98-7777 |
BOLT Price: $1.56 |
| 17 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 24 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 26 |
532178515 |
WASHER Price: $5.99 |
| 27 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 28 |
586874002 |
ARM.42"FCS.CLUTCHING.X431 Price: $17.99 |
| 29 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 30 |
532196106 |
PULLEY.IDLER.2006 Price: $34.99 |
| 40 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 41 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 42 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 43 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 44 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 46 |
587270101 |
BELT.42.FCS.TRACTOR.DECK.DRIVE Price: $44.99 |
| 51 |
532199791 |
PULLEY MANDREL 5.0" Price: $22.99 |
| 52 |
588438301 |
SCREW.7/16-14 X 2.125.WASHER Price: $5.99 |
| 53 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 55 |
596240801 |
GSPW Bolts This part replaces 539115574. Price: $3.99 |
| 56 |
587358401 |
SPRING.EXTN.42.FCS.TR.DECK.DRV Price: $6.99 |
| 57 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 61 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 65 |
532110452 |
NUT PUSH M Price: $2.99 |
| 66 |
587305701 |
DEFLECTOR.ASM.42.FCS.ORANGE Price: $69.99 |
| 67 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 68 |
532198468 |
KEEPER.BELT.IDLER.54"T Price: $7.99 |
| 69 |
586936805 |
COVER.42".MANDREL.FCS.PNT.498 Price: $7.99 |
| 74 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 76 |
585938101 |
NUT ACORN,FLANGED,5/16-18 Price: $2.99 |
| 77 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 78 |
501808302 |
BRACKET.PNT.GA-WHEEL.FCS.42.RH Price: $19.99 |
| 590520801 |
DECK.ASM.SVC.42FCS.EL.GW.WP |
This part replaces 587939201. Price: $2,399.99 590520801 |
