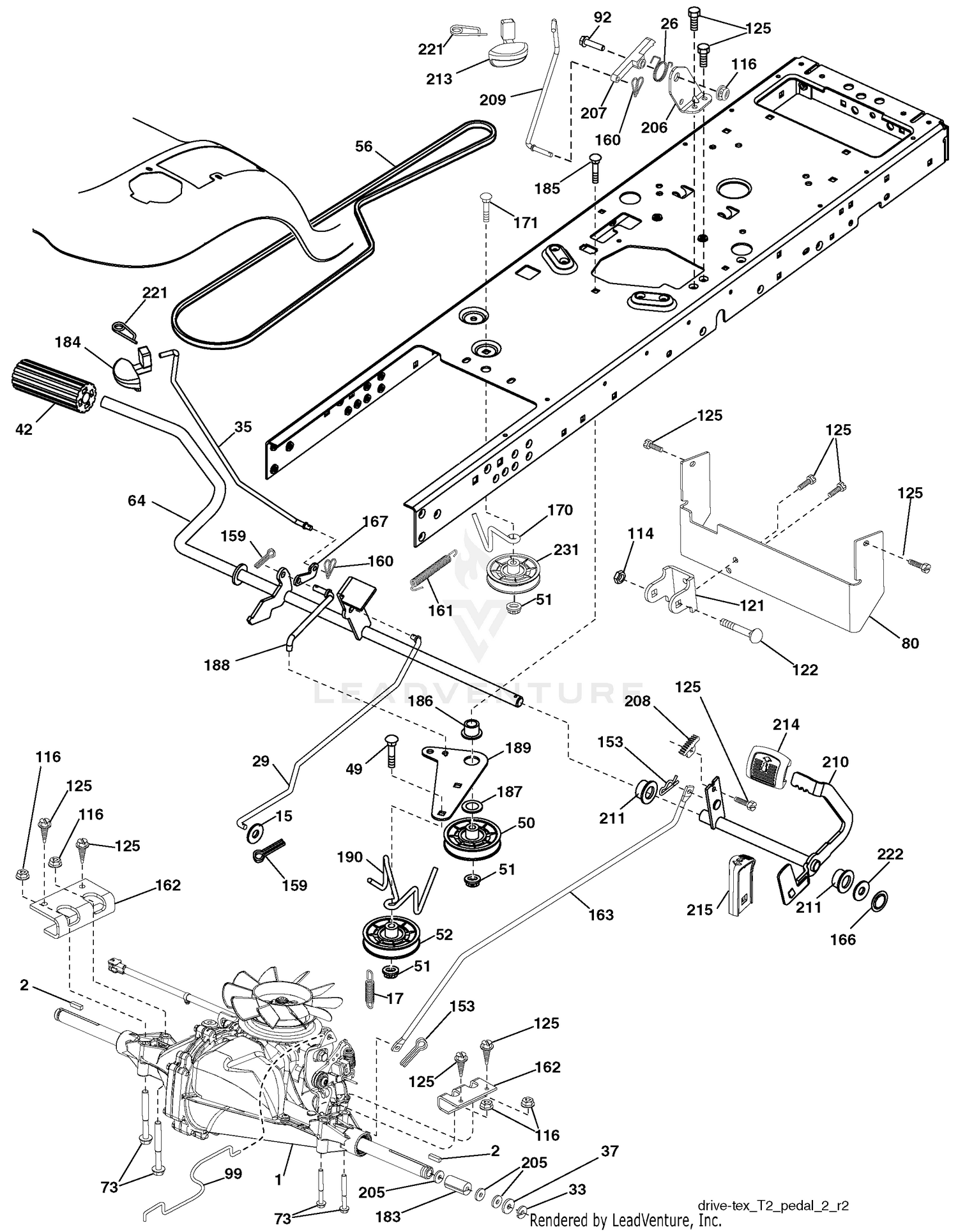

| Ref | Part Number | Description |
|---|
| 2 |
100-8268 |
SCREW Price: $1.97 |
| 2 |
123583X |
Key Price: Call Us |
| 3 |
100-8269 |
PLUG-BETA Price: $9.37 |
| 6 |
92-3961 |
C-RING Price: $4.04 |
| 9 |
100-8270 |
KEY Price: $9.10 |
| 10 |
92-3876 |
KEY-SHAFT Price: $23.11 |
| 11 |
92-2180 |
GASKET-COPPER This part replaces 100-8274. Price: $4.38 |
| 12 |
92-2184 |
CAP-HEX, RELIEF VALVE This part replaces 100-8271. Price: $10.15 |
| 13 |
100-8272 |
SCREW Price: $12.21 |
| 14 |
92-3870 |
SPRING Price: $7.31 |
| 15 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 15 |
92-3871 |
SPRING Price: $18.87 |
| 16 |
100-8273 |
BALL-STEEL Price: $6.55 |
| 17 |
197296 |
Spring, Brake Price: Call Us |
| 17 |
92-3880 |
GASKET Price: $4.90 |
| 18 |
92-2176 |
PIN-SHEAR This part replaces 100-8265. Price: $1.65 |
| 20 |
92-2191 |
BEARING-BALL This part replaces 92-3874. Price: $47.70 |
| 21 |
92-2186 |
SPACER This part replaces 92-3960. Price: $5.09 |
| 22 |
100-8275 |
SEAL Price: $20.07 |
| 26 |
199679 |
Spring Return Cruise Price: Call Us |
| 29 |
408391 |
Rod, Brake Price: Call Us |
| 33 |
12000001 |
Ring E Price: Call Us |
| 35 |
197722 |
Rod, Brake, Park Price: Call Us |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 42 |
8883R |
Cover, Foot Pedal Price: Call Us |
| 49 |
72110614 |
Bolt Price: Call Us |
| 50 |
194327 |
Pulley Idler Flat Price: Call Us |
| 51 |
73900600 |
Lock Nut 3/8-16 Price: Call Us |
| 52 |
194326 |
Idler V-Groove 910" Offset Price: Call Us |
| 56 |
125907 |
V-Belt, Drive Price: Call Us |
| 64 |
197865 |
Shaft Asm. Pedal Brake Control Price: Call Us |
| 73 |
74490544 |
Bolt 5/16-18 Gr. 5 Price: Call Us |
| 80 |
408393 |
Strap Torque Price: Call Us |
| 92 |
74760520 |
Bolt Fin Hex 5/16-18 unc x 1.25 Price: Call Us |
| 99 |
408418 |
Rod Asm Bypass Spring Price: Call Us |
| 114 |
73800500 |
Nut Lock 5/16-18 unc Price: Call Us |
| 116 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 121 |
175611 |
Bracket Strap Torque Price: Call Us |
| 122 |
72010520 |
Bolt 5/16-18 x 2.50 Price: Call Us |
| 125 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 153 |
4497H |
Retainer Spring Price: Call Us |
| 159 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 160 |
169484 |
Retainer Clip Price: Call Us |
| 161 |
105709 |
Spring, Return, Clutch Price: Call Us |
| 162 |
408784 |
Adapter Transaxle Price: Call Us |
| 163 |
413322 |
Rod Pedal Control Price: Call Us |
| 166 |
197290 |
Nut Push .625 Price: Call Us |
| 167 |
405257 |
Latch Brake Parking Price: Call Us |
| 170 |
413430 |
Keeper Belt Centerspan Price: Call Us |
| 171 |
72110622 |
Bolt Price: Call Us |
| 183 |
156972 |
Spacer Axle Price: Call Us |
| 184 |
198403X505 |
Handle Parking Brake Price: Call Us |
| 185 |
72110620 |
Bolt Price: Call Us |
| 186 |
194321 |
Spacer Retainer Price: Call Us |
| 187 |
19133210 |
Washer Price: Call Us |
| 188 |
194323 |
Link Clutch Ground Drive Price: Call Us |
| 189 |
194317 |
Bellcrank Ground Drive Price: Call Us |
| 190 |
194318 |
Keeper Bellcrank Ground Drive Price: Call Us |
| 205 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 206 |
197867 |
Bracket Mount Latch Cruise Price: Call Us |
| 207 |
197868 |
Latch Control Cruise Price: Call Us |
| 208 |
197869 |
Gear Sector Control Cruise Price: Call Us |
| 209 |
400769 |
Rod Control Cruise Price: Call Us |
| 210 |
400980 |
Rockr Asm. Pdeal Control Price: Call Us |
| 211 |
120183X |
Bearing Nylon Price: Call Us |
| 213 |
400799 |
X428 Knob control Cruise Price: Call Us 400799 X428 |
| 214 |
197302 |
X428 Pad Pedal Forward Price: Call Us 197302 X428 |
| 215 |
197301 |
X428 Pad Pedal Reverse Price: Call Us 197301 X428 |
| 221 |
403187 |
Retainer Spring Clip Handle Price: Call Us |
| 222 |
79212010 |
Washer 21/32 x 1-1/4 10 Ga. Price: Call Us |
