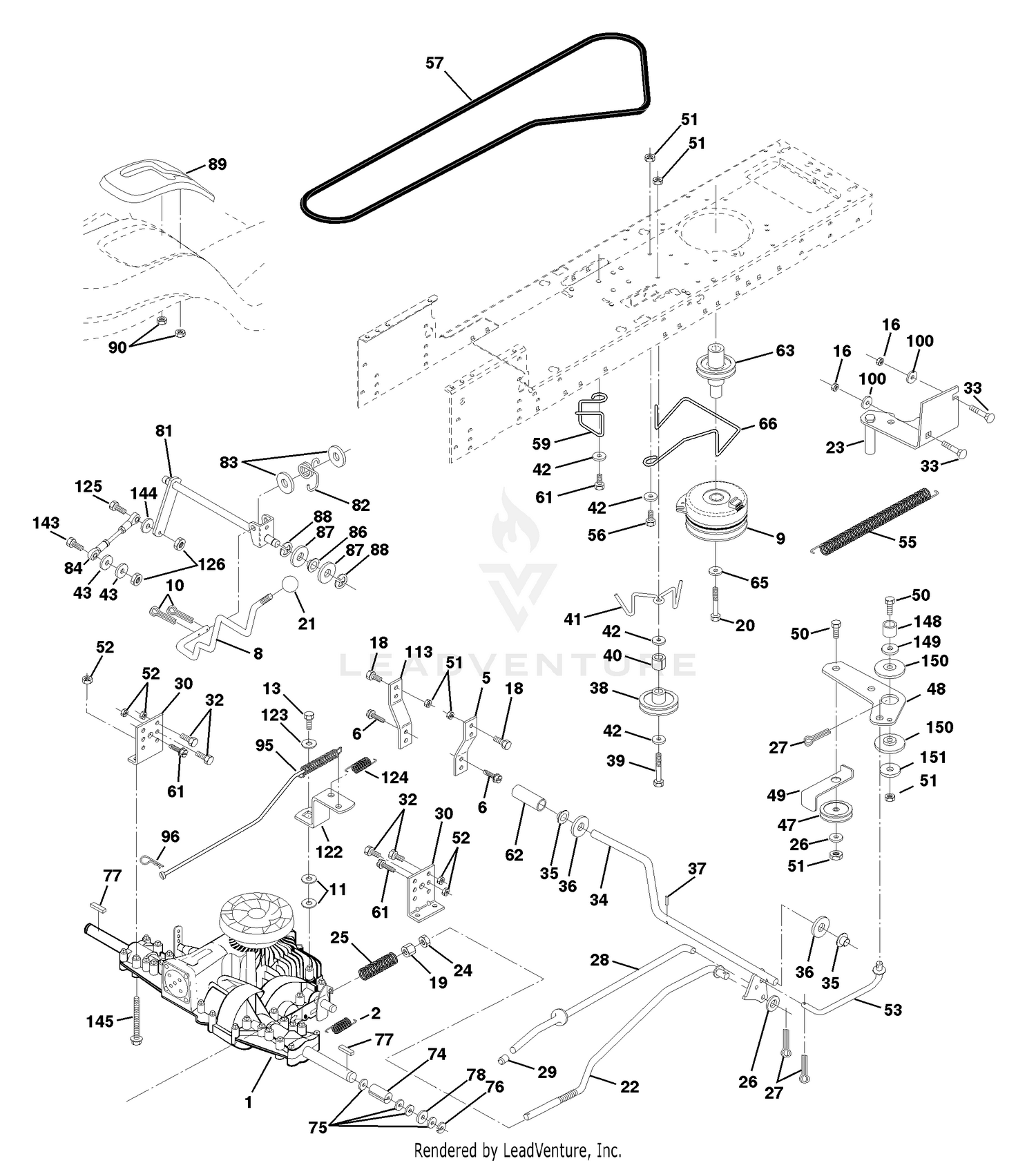

| Ref | Part Number | Description |
|---|
| 1 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 2 |
2412-133 |
CLAMP-R Price: $3.19 |
| 2 |
532146682 |
SPRING,BRAKE RETURN Price: $5.99 |
| 3 |
76-9460-03 |
DISCONTINUED This part replaces 76-9460. Price: Call Us |
| 4 |
77-3780 |
PIN ASM-LYNCH Price: $15.06 |
| 5 |
3290-282 |
RIVET-BLIND Price: $0.28 |
| 5 |
532121520 |
STRAP TORQUE Price: $6.99 |
| 6 |
3256-49 |
WASHER-PLAIN Price: $0.33 |
| 6 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 7 |
76-9930 |
FOAM-CENTER Price: $7.40 |
| 8 |
532154792 |
ROD SHIFT FENDER Price: $12.99 |
| 8 |
82-4900 |
FOAM-SEAT, REAR Price: $71.75 |
| 9 |
532145028 |
CLUTCH.ELECT.EVX. Price: $299.99 |
| 9 |
76-9440 |
ROD-PROP, SEAT Price: $65.18 |
| 10 |
32128-33 |
NUT-HF Price: $0.25 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 11 |
43-9071 |
LIMIT SWITCH ASM Price: $182.60 |
| 11 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 12 |
37-2690 |
CAPACITOR Price: $155.98 |
| 13 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 13 |
596136601 |
Bolts This part replaces 874550412. Price: $1.99 |
| 14 |
2412-74 |
R-CLAMP Price: $2.37 |
| 15 |
218-461 |
NUT-HH Price: $2.50 |
| 15 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 16 |
323-17 |
SCREW-HH Price: $2.05 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 17 |
72-4320 |
SWITCH-BALL Price: $90.18 |
| 18 |
237-30 |
O-RING Price: $2.50 |
| 18 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 19 |
43-8610 |
GUIDE Price: $23.35 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 20 |
43-8600 |
SPRING-COMPRESSION Price: $3.03 |
| 20 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532150280. Price: $2.99 |
| 21 |
43-8860 |
PLUNGER-SWITCH Price: $11.85 |
| 21 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 22 |
43-8620 |
PIN-GUIDE, SWITCH Price: $88.57 |
| 22 |
532130804 |
ROD BRAKE Price: $22.99 |
| 23 |
237-7 |
O-RING Price: $8.82 |
| 23 |
532154978 |
BRACKET, ASM CLUTCH MTG Price: $5.99 |
| 24 |
237-136 |
GROMMET Price: $3.52 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 25 |
80-7730 |
SPACER Price: $1.97 |
| 26 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 27 |
137-8085 |
SPRING-SEAT, COMPRESSION This part replaces 88-1420. Price: $8.86 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 28 |
532145204 |
ROD BRAKE PARK LT Price: $3.12 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 29 |
70-1480 |
RELAY Price: $105.19 |
| 30 |
321-5 |
SCREW-HH Price: $0.22 |
| 30 |
532130807 |
BRACKET TRANSAXLE Price: $3.99 |
| 31 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 32 |
116749 |
HORN This part replaces 48-4590. Price: $130.99 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 33 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 33 |
74-8910 |
DISCONTINUED Price: Call Us |
| 34 |
532155071 |
SHAFT, FOOT PEDAL Price: $19.99 |
| 34 |
86-2860-03 |
COVER-BELT, UPPER This part replaces 86-2860. Price: $16.75 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 35 |
76-9480 |
SLEEVE-PIVOT, SEAT Price: $4.64 |
| 36 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
325-9 |
SCREW-HH Price: $1.87 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
322-2 |
SCREW-HH Price: $0.69 |
| 38 |
532123674 |
PULLEY.IDLER.FLAT Price: $24.99 |
| 39 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 40 |
2412-74 |
R-CLAMP Price: $2.37 |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 41 |
37-2690 |
CAPACITOR Price: $155.98 |
| 41 |
532165838 |
KEEPER.BELT.IDLER.FLAT This part replaces 532154777. Price: $4.99 |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 43 |
596039901 |
Washers This part replaces 819111012. Price: $2.99 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532154604 |
BELLCRANK ASSEMBLY Price: $11.99 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
874760620 |
BOLT Price: $4.99 |
| 57 |
584448801 |
V-BELT,GRD DRIVE This part replaces 532156971. Price: $37.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $17.99 |
| 61 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 62 |
532123533 |
COVER, PEDAL (1 2) Price: $6.99 |
| 63 |
532145868 |
PULLEY, CLUTCH ELECT EVX Price: $69.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 74 |
532156972 |
SPACER, AXLE PVST Price: $5.99 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 81 |
532156969 |
SHAFT ASM CROSS HYDRO Price: $13.99 |
| 82 |
532123782 |
SPRING,TORSION Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532156962 |
ROD, TIE PVST 20" Price: $34.90 |
| 86 |
532071208 |
BUSHING.STEERING.ROD LTB-WSL Price: $3.99 |
| 87 |
819212016 |
WASHER D Price: $4.99 |
| 88 |
812000008 |
KLIP RING Price: $2.99 |
| 89 |
532164890 |
SHIFT CONSOLE BLACK This part replaces 532154882. Price: $19.99 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 95 |
532156970 |
ROD ASM BYPASS PVST Price: $7.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 100 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 113 |
531150301 |
SERVICE KIT STRAP STRAP TORQUE This part replaces 532127285. Price: $6.99 |
| 118 |
532154774 |
SPACER BELLCRANK Price: $4.99 |
| 121 |
532154419 |
NYLINER CLUTCHING Price: $3.99 |
| 122 |
532156963 |
PLATE BYPASS PVST Price: $2.99 |
| 123 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 124 |
532156967 |
RETURN SPRING Price: $5.99 |
| 125 |
874750516 |
Bolt Fin Hex 5/16-18 UNC x 1 Price: Call Us |
| 126 |
532124949 |
LOCKNUT Price: $3.99 |
