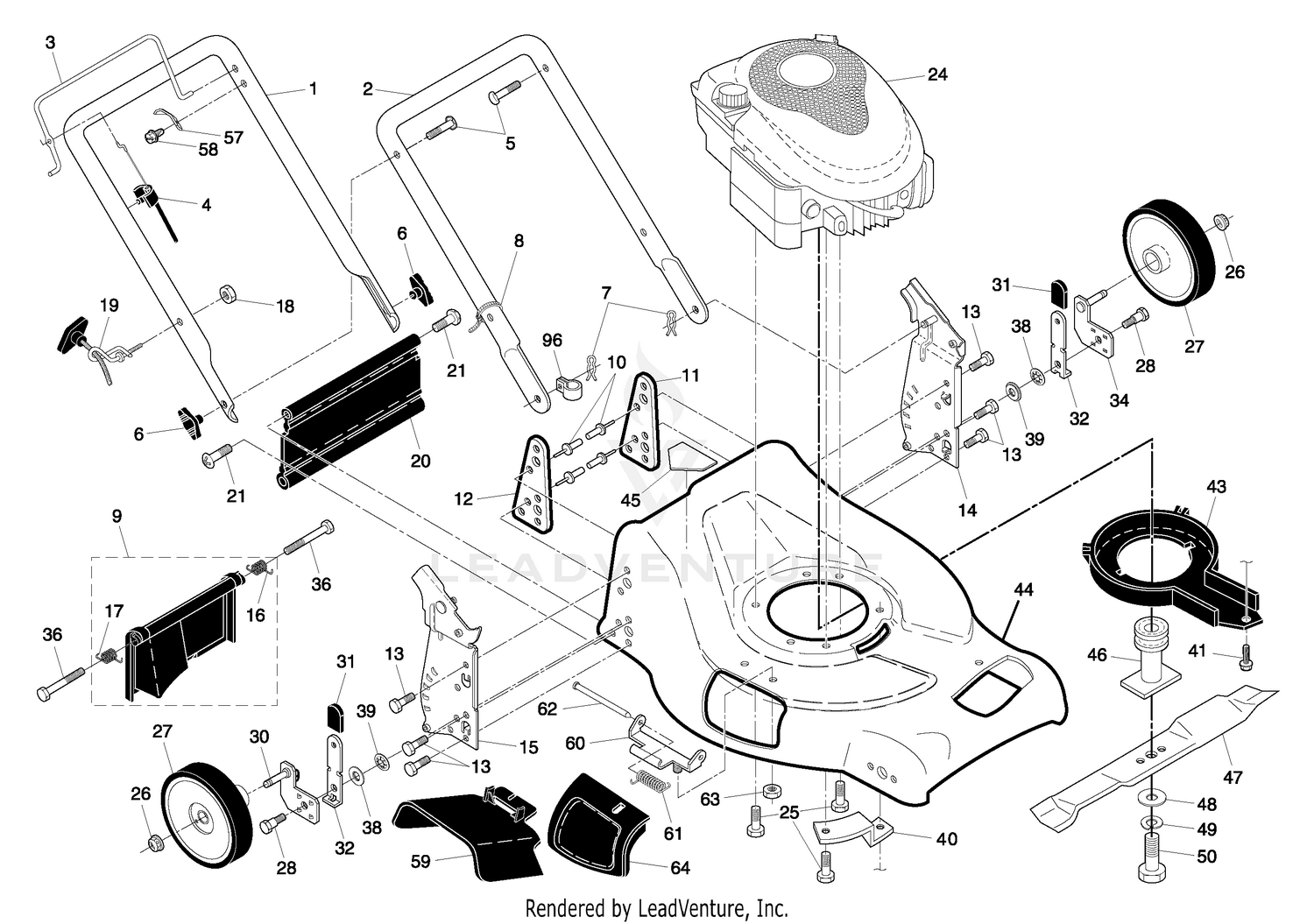

| Ref | Part Number | Description |
|---|
| 1 |
194200X479 |
Upper Handle Price: Call Us |
| 2 |
151721X479 |
Lower Handle Price: Call Us |
| 3 |
194199X428 |
Control Bar Price: Call Us |
| 4 |
183567 |
Engine Zone Control Cable Price: Call Us |
| 4 |
95-4364 |
BODY Price: $106.81 |
| 5 |
191574 |
Handle Bolt Price: Call Us |
| 6 |
189713X428 |
Handle Knob Price: Call Us |
| 7 |
51793 |
Hairpin Cotter Price: Call Us |
| 7 |
95-4366 |
GEAR-IDLER Price: $127.03 |
| 8 |
664-26 |
Wire Tie Price: Call Us |
| 9 |
95-4368 |
PLATE-WEAR Price: $109.69 |
| 10 |
128415 |
Pop Rivet Price: Call Us |
| 11 |
175069X479 |
Support Bracket, LH Price: Call Us |
| 11 |
94-8158 |
SCREW-CAP Price: $10.38 |
| 12 |
175070X479 |
Support Bracket, RH Price: Call Us |
| 13 |
17060410 |
Screw, Tapping 1/4-20 x 5/8 Price: Call Us |
| 14 |
175082X479 |
Handle Bracket Assembly, LH Price: Call Us |
| 15 |
175081X479 |
Handle Bracket Assembly, RH Price: Call Us |
| 16 |
180071 |
Spring, Rear Door, LH Price: Call Us |
| 16 |
95-4373 |
GEAR-FIT, SLIP Price: $69.20 |
| 17 |
180072 |
Spring, Rear Door, RH Price: Call Us |
| 18 |
132004 |
Nut, Hex 1/4-20 Price: Call Us |
| 19 |
194788 |
Rope Guide Price: Call Us |
| 20 |
189005 |
Rear Skirt Price: Call Us |
| 21 |
88652 |
Hinge Screw 1/4-20 x 1-1/4 Price: Call Us |
| 21 |
94-8161 |
SEAL REPAIR KIT Price: $286.42 |
| 25 |
150406 |
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 Price: Call Us |
| 26 |
83923 |
Hex Flange Nut Price: Call Us |
| 27 |
193909X421 |
Wheel & Tire Assembly Price: Call Us |
| 28 |
189312 |
Shoulder Bolt 5/16-18 x 1-21/64 Price: Call Us |
| 30 |
189596X004 |
Axle Arm Assembly, Rear, RH Price: Call Us |
| 31 |
87877 |
Selector Knob Price: Call Us |
| 32 |
175060X004 |
Selector Spring Price: Call Us |
| 34 |
189597X004 |
Axle Arm Assembly, Rear, LH Price: Call Us |
| 36 |
184193 |
Bolt, Rear Door Price: Call Us |
| 38 |
176185 |
Washer, Step 11/32 x 1-3/8 x 7/32 Price: Call Us |
| 39 |
176235 |
Push Nut Price: Call Us |
| 40 |
188839X004 |
Mounting Bracket, Debris Shield Price: Call Us |
| 41 |
192325 |
Screw, Debris Shield Price: Call Us |
| 43 |
188784 |
Debris Shield Price: Call Us |
| 45 |
404763 |
Danger Decal Price: Call Us |
| 46 |
189179 |
Blade Adapter / Pulley Price: Call Us |
| 47 |
189028 |
Blade, 21" Price: Call Us |
| 48 |
851074 |
Hardened Washer Price: Call Us |
| 49 |
850263 |
Helical Washer Price: Call Us |
| 50 |
851084 |
Hex Head Machine Screw, Grade 8, 3/8-24 x 1-3/8 Price: Call Us |
| 57 |
850733X004 |
Bracket, Upstop Price: Call Us |
| 58 |
750634 |
Screw #10-24 x 1/2 Price: Call Us |
| 59 |
175071 |
Discharge Deflector Price: Call Us |
| 60 |
175735 |
Hinge Bracket Price: Call Us |
| 61 |
193000 |
Spring Price: Call Us |
| 62 |
175650 |
Rod, Hinge Price: Call Us |
| 63 |
73800400 |
Keps Locknut 1/4-20 Price: Call Us |
| 64 |
175066 |
Mulcher Door Price: Call Us |
| 96 |
197991 |
Clip, Cable Price: Call Us |
| 193733 |
Operator's |
Manual, English Price: Call Us 193733 |
| 193743 |
Operator's |
Manual, Spanish Price: Call Us 193743 |
