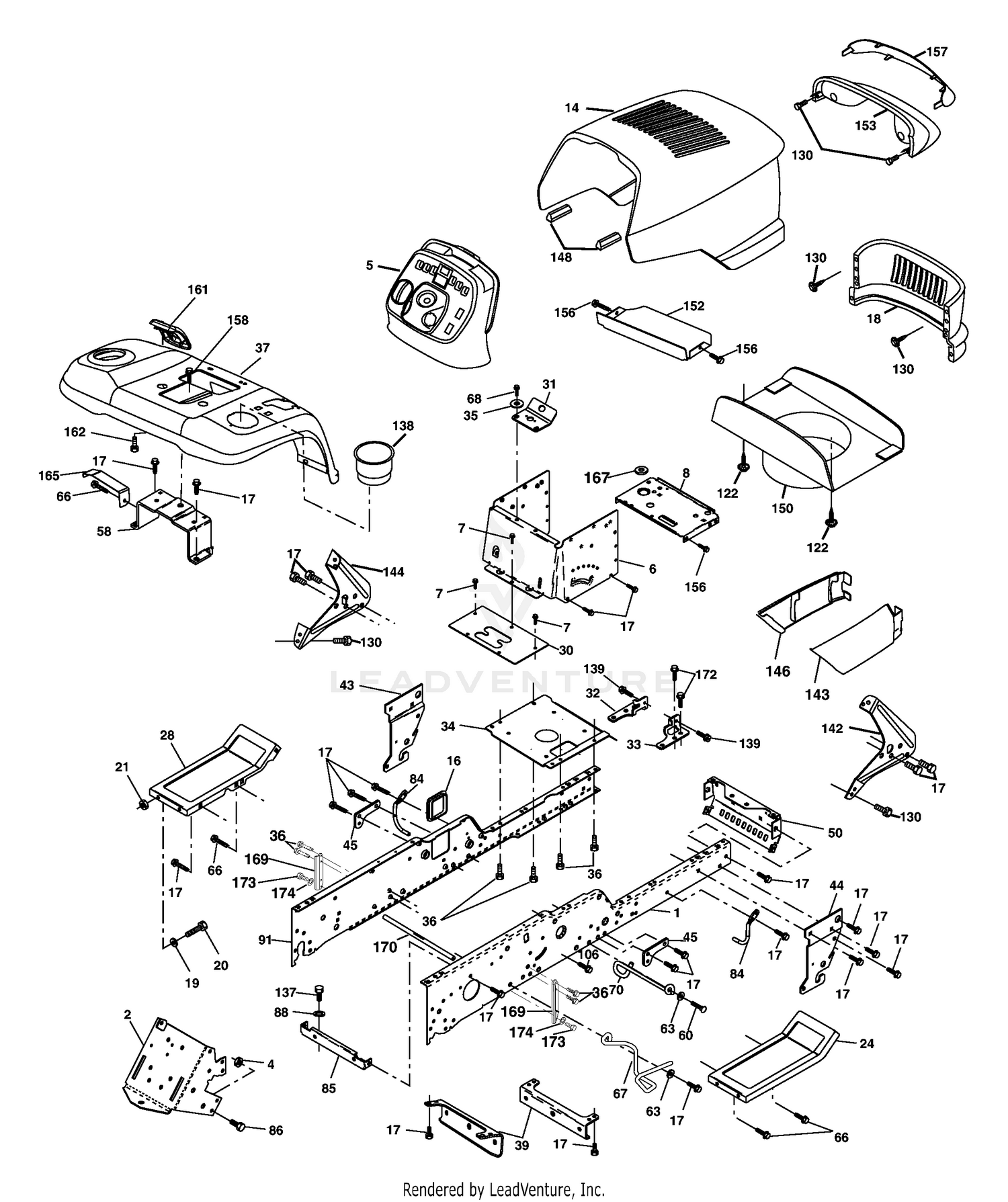

| Ref | Part Number | Description |
|---|
| 1 |
180375 |
Rail, Frame RH Price: Call Us |
| 2 |
175282 |
Drawbar, Gt Price: Call Us |
| 4 |
73680700 |
Nut, Crownlock Hex 7/16-14 unc Price: Call Us |
| 5 |
193636X428 |
Dash Price: Call Us |
| 6 |
157882 |
Dash, Lower Vgt One Piece Price: Call Us |
| 7 |
17720408 |
Screw, Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 8 |
184668 |
Support, Battery Price: Call Us |
| 14 |
175260X505 |
Hood Asm Price: Call Us |
| 16 |
121794X |
Cover, Access Price: Call Us |
| 17 |
17000612 |
Screw 3/8-16 x 3/4 Zc Price: Call Us |
| 18 |
175289X428 |
Grille Price: Call Us |
| 19 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 20 |
74780616 |
Bolt Fin Hex 3/8-16 x 1 Gr. 5 Price: Call Us |
| 21 |
73800600 |
Nut Lock 3/8-16 unc Price: Call Us |
| 24 |
179717X505 |
Footrest, RH Price: Call Us |
| 28 |
179716X505 |
Footrest, LH Price: Call Us |
| 30 |
145051X014 |
Saddle, Slkscr Vgt Price: Call Us |
| 31 |
161419 |
Bracket Support 1-pc Price: Call Us |
| 32 |
161327 |
Bracket, Pivot Chassis Lh Price: Call Us |
| 33 |
161326 |
Bracket, Pivot Chassis Rh Price: Call Us |
| 34 |
177018 |
Plate Asm Engine Chassis Price: Call Us |
| 35 |
19111116 |
Washer 11/32 x 11/16 x 16 Ga. Price: Call Us |
| 36 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 37 |
179772X505 |
Fender Price: Call Us |
| 39 |
175278 |
Bracket, Axle Front Price: Call Us |
| 43 |
136939 |
Bracket, Spnsn Front Lh Price: Call Us |
| 44 |
136940 |
Bracket, Spnsn Front Rh Price: Call Us |
| 45 |
187270 |
Bracket Chassis Price: Call Us |
| 50 |
175476 |
Bracket, Chassis Front Price: Call Us |
| 58 |
183569 |
Bracket Fender Price: Call Us |
| 60 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 66 |
17490608 |
Screw 3/8-16 x 1/2 Price: Call Us |
| 67 |
156973 |
Guide, Belt Gear Drive Price: Call Us |
| 68 |
17490508 |
Screw Thdrol. 5/16-18 x 1/2 Price: Call Us |
| 70 |
188578 |
Guide, Belt Price: Call Us |
| 84 |
188164 |
Up Stop Price: Call Us |
| 85 |
193923 |
Bracket, Support Transaxle Price: Call Us |
| 86 |
74780716 |
Bolt Fin Hex 7/16-14 unc x 1 Price: Call Us |
| 88 |
10040700 |
Washer, Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 91 |
180374 |
Rail, Frame Lh Price: Call Us |
| 106 |
17580520 |
Screw Thdrol 5/16-18 x 1.25 Price: Call Us |
| 122 |
192512 |
Screw Wshd Hex 10-32 x 5/8 Price: Call Us |
| 130 |
191611 |
Screw 10 x 3/4 Single Lead-Hex Price: Call Us |
| 137 |
74780716 |
Bolt Fin Hex 7/16-14 x 1 Gr. 5 Price: Call Us |
| 138 |
191121X428 |
Cupholder YTGT Price: Call Us |
| 139 |
171873 |
Bolt Shoulder 5/16-18 TT Price: Call Us |
| 142 |
161897 |
Bracket Dash Rh Price: Call Us |
| 143 |
169847X428 |
Skirt Grille RH Price: Call Us |
| 144 |
161900 |
Bracket Dash Lh Price: Call Us |
| 146 |
169848X428 |
Skirt Grille LH Price: Call Us |
| 148 |
164655 |
Extrusion Bumper Price: Call Us |
| 150 |
175352 |
Duct Heat Hood Price: Call Us |
| 152 |
177956 |
Shield Browning Price: Call Us |
| 153 |
179761 |
Light Box Asm w/Lens Price: Call Us |
| 156 |
17000512 |
Screw 5/16-18 x 3/4. Blk Price: Call Us |
| 157 |
161840 |
Lens Bar Price: Call Us |
| 158 |
17670608 |
Screw Thdrol. 3/8-16 x 1/2 Price: Call Us |
| 161 |
179612X428 |
Console Fuel Window Price: Call Us |
| 162 |
142432 |
Screw Hex Wsh Hi-Lo 1/4-1/2 Price: Call Us |
| 165 |
183554 |
Bracket Support Tank Price: Call Us |
| 167 |
184672 |
Bushing Snap Price: Call Us |
| 169 |
188598 |
Bracket Chassis Sway Price: Call Us |
| 170 |
194667 |
Rod Bracket Sway Brace Price: Call Us |
| 172 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 173 |
74780512 |
Bolt Fin Hex 5/16-18 unc x 3/4 Price: Call Us |
