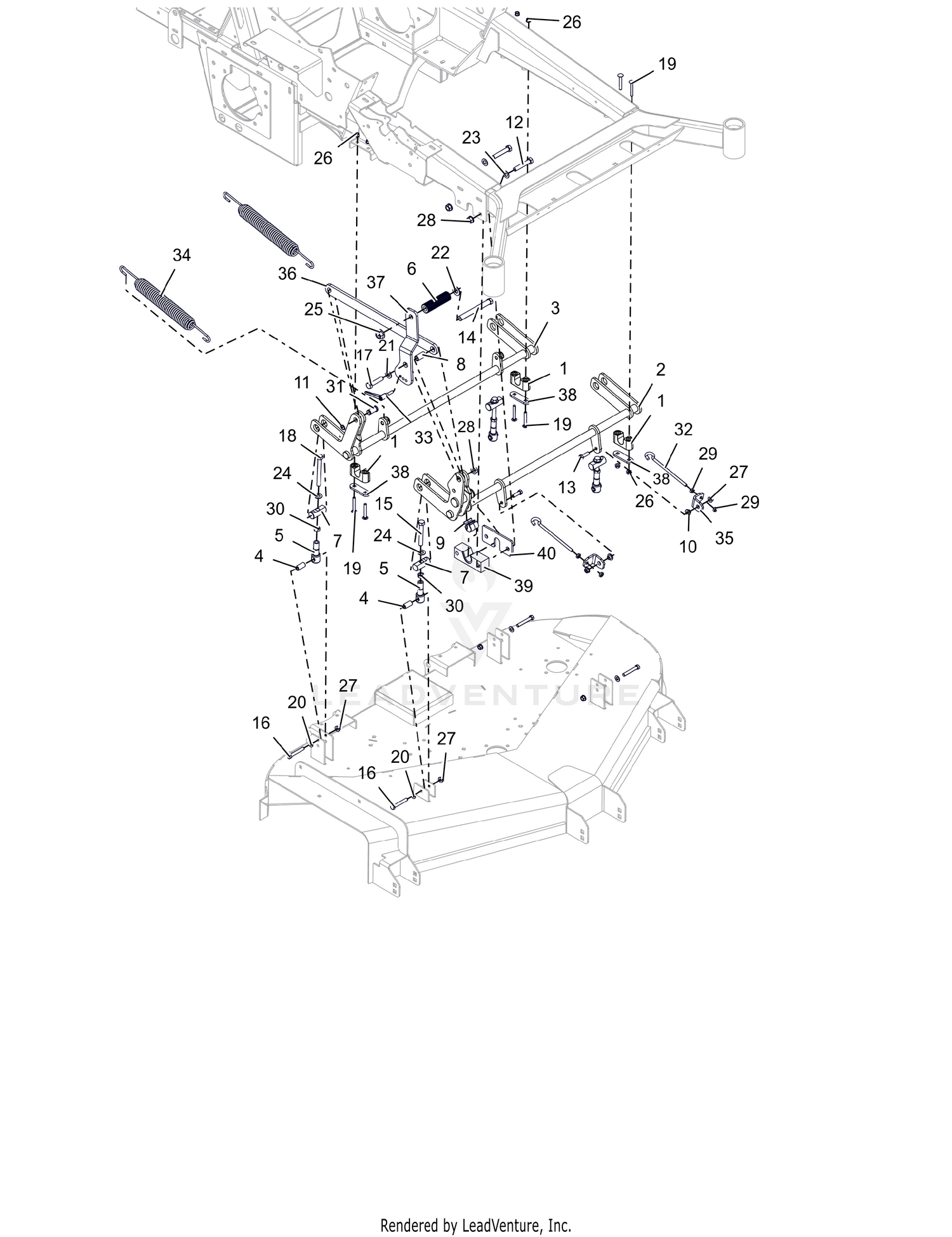

| Ref | Part Number | Description |
|---|
| 1 |
07500414 |
ASM-BUSHING, DECK LIFT Price: $21.95 |
| 2 |
09367751 |
WLDMT, FRONT DECK LIFT (BLACK) Price: $174.95 |
| 3 |
09367851 |
WLDMT, REAR DECK LIFT (BLACK) Price: $159.45 |
| 4 |
04895200 |
SPACER, DECK LEVELING Price: $2.45 |
| 5 |
05081400 |
LINK, DECK LIFT FORMED Price: $14.45 |
| 6 |
05120951 |
ROD, FOOT PEDAL (BLACK) Price: $20.45 |
| 7 |
05149500 |
PIN, DECK LIFT Price: $14.95 |
| 8 |
05400732 |
SPCR, SLV .531x.75x1.449 Price: $3.95 |
| 9 |
05400736 |
BUSHING, SHAFT Price: $12.45 |
| 10 |
05500435 |
BSHG-FLG .385X.500X.875X.406 Price: $1.95 |
| 11 |
05709200 |
RG-RTNG-EXT .625X.050 Price: $2.45 |
| 12 |
05901720 |
BLT,HEX .50-13X2.75 G5 ZCC Price: $4.45 |
| 13 |
05901724 |
BLT- HEX .38-16X1.25 G5 ZCC Price: $1.45 |
| 14 |
05901730 |
BLT, HEX .62-11X5.50 G5 FBP Price: $6.45 |
| 15 |
05901735 |
BLT, HEX 0.5-13X3.5F GR5 ZCC Price: $5.45 |
| 16 |
05901811 |
BLT, HEX .38-16X2.50 G8 ZCC Price: $3.45 |
| 17 |
05901835 |
BLT, HEX .50-13X2.25 G5 ZCC Price: $3.45 |
| 18 |
05902111 |
BLT, HEX 0.5-13X4.5S GR5 ZCC Price: $3.45 |
| 19 |
06200311 |
BLT, RHSSN.31-18X2.25 G5 ZCC Price: $3.95 |
| 20 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC Price: $0.95 |
| 21 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC Price: $0.95 |
| 22 |
06401039 |
WSHRFLT 5/8SAE CARBHARD FBP Price: $3.45 |
| 23 |
06401115 |
WSHR, FLT .531X1.00X.063 ZCC Price: $0.45 |
| 24 |
06401116 |
WSHR, FLT .557X1.040X.102 ZCC Price: $1.45 |
| 25 |
06500835 |
NUT,FLG-TOP LK .625-11 FBP Price: $6.45 |
| 26 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 27 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 28 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC Price: $0.95 |
| 29 |
06500910 |
NUT-JAM .375-16 G2 ZCC Price: $0.95 |
| 30 |
06500911 |
NUT-JAM .500-13 G2 ZCC Price: $1.45 |
| 31 |
06800207 |
PIN, CLEVIS .625 SNAP RING Price: $6.45 |
| 32 |
07001604 |
BOLT, .38-16X6.00 .62 DIA EYE Price: $6.45 |
| 33 |
07500502 |
HANDLE, CLAMPING Price: $16.45 |
| 34 |
08300722 |
SPRG, DECK LIFT Price: $20.45 |
| 35 |
09368751 |
BRKT, SPRING ANCHOR (BLACK) Price: $16.95 |
| 36 |
09368851 |
LINK, DECK LIFT (BLACK) Price: $22.45 |
| 37 |
09378251 |
ARM, ADJUSTABLE FOOT PEDAL (BLACK) Price: $33.95 |
| 38 |
09382951 |
PLATE, PT600 BEARING SUPPORT (BLACK) Price: $5.45 |
| 39 |
09466900 |
BUSHING- DECK LIFT This part replaces 09394900. Price: $30.95 |
