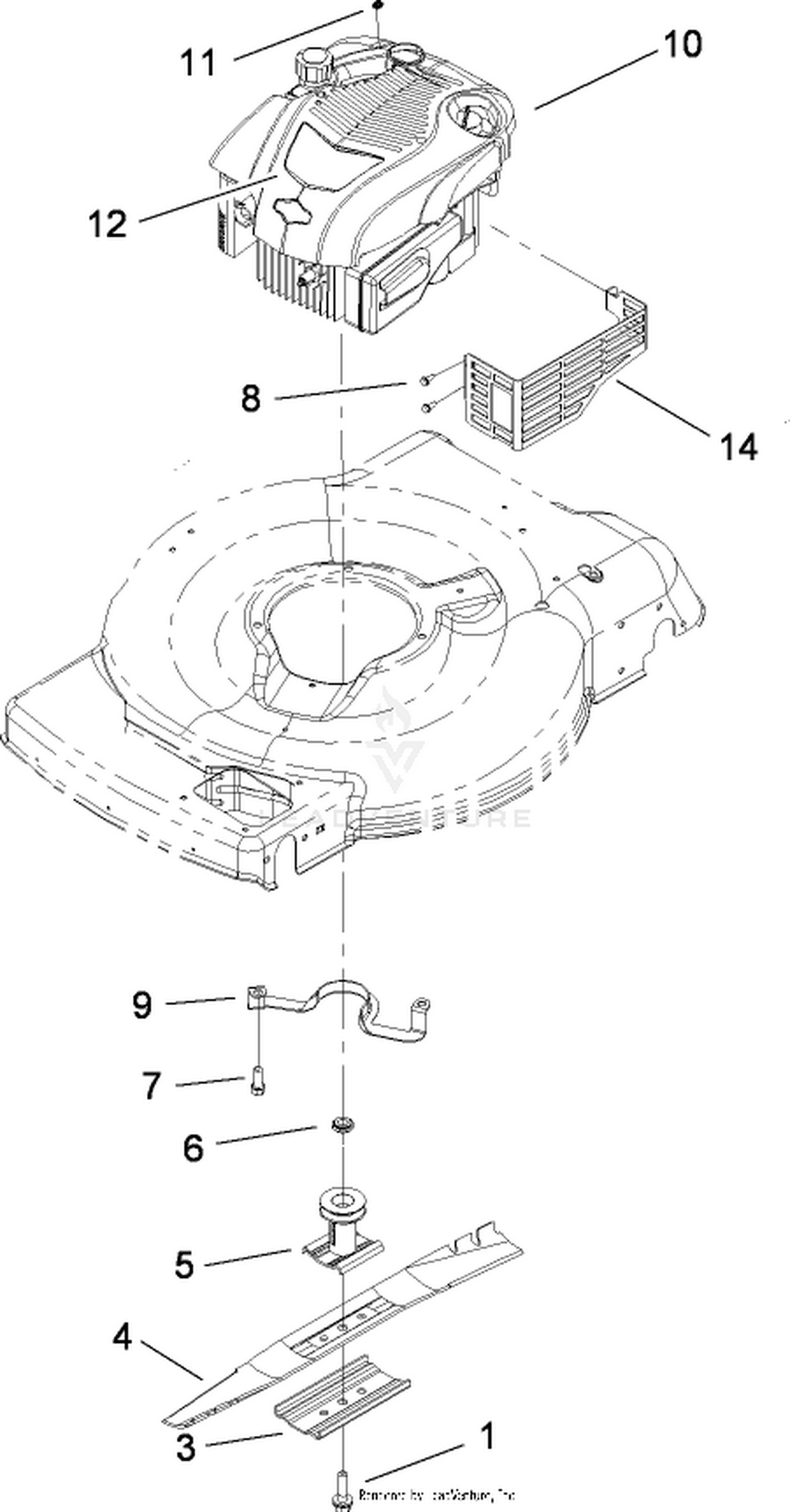

Engine and Blade Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-2466 | BOLT-BLADE This part replaces 105-8579. Price: $2.20 |
| 3 | 108-3766-03 | SUPPORT-BLADE Price: $7.65 |
| 4 | 131-4547-03 | BLADE-22 INCH This part replaces 108-9764-03. Price: $21.88 |
| 5 | 106-3987 | DRIVER-BLADE Price: $20.79 |
| 6 | 106-3999 | SPACER-DRIVER Price: $2.22 |
| 7 | 95-1726 | SCREW-TAPTITE Price: $1.79 |
| 8 | 32144-1 | SCREW-TAPTITE Price: $3.19 |
| 9 | 105-3031-03 | GUIDE-BELT Price: $8.96 |
| 11 | 2210-316 | STOP-ROPE This part replaces 92-1701. Price: $4.41 |
| 12 | 115-1308 | DECAL Price: $9.61 |
