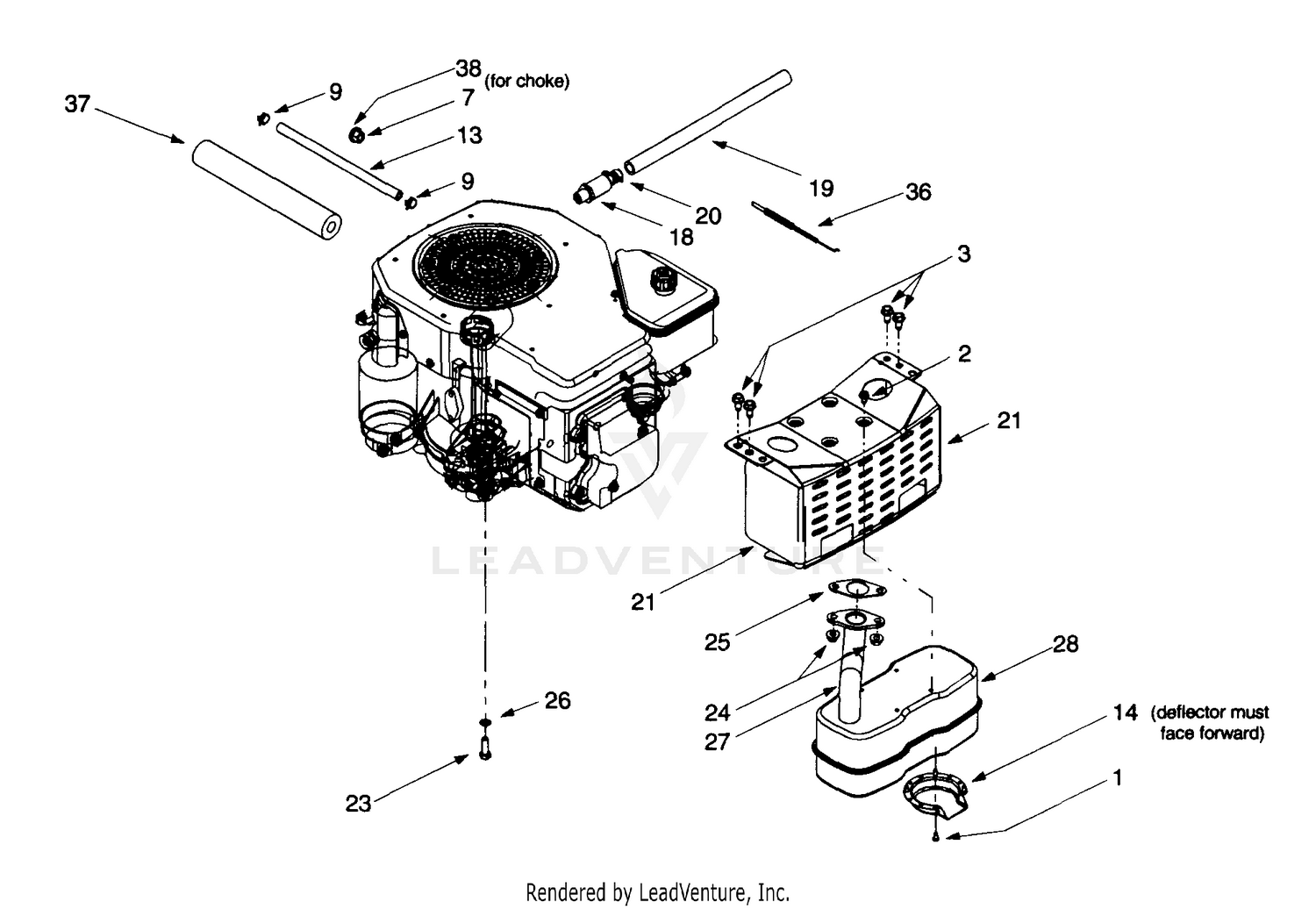

| Ref | Part Number | Description |
|---|
| 1 |
710-0148 |
Self-tapping Screw, #8-32 x .375 Price: $3.90 |
| 2 |
710-0599 |
Self-tapping Screw, 1/4-20 x .5 Price: $3.86 |
| 3 |
710-0604A |
Self-tapping Screw, 5/16-18 x .625 Price: $3.96 |
| 7 |
712-3017 |
HEX NUT 3/8-16 GR5 Price: $3.90 |
| 9 |
726-0205 |
Hose Clamp Price: $3.71 |
| 13 |
751-0535 |
Fuel Line Hose Price: Call Us |
| 14 |
751-0564B |
Deflector, Muffler This part replaces 7510564. Price: $12.14 |
| 18 |
951-10517A |
Oil Drain This part replaces 751-3140. Price: $22.67 |
| 19 |
751-3141-14 |
Oil Drain, Extension Hose This part replaces 751-3141. Price: $10.40 |
| 20 |
751-3142 |
Oil Drain Cap Price: $3.81 |
| 21 |
783-0615E-0637 |
Muffler Heat Shield This part replaces 783-0615. Price: $56.32 |
| 23 |
710-3206A |
Hex Cap Screw, M8-1.25 x 25 Price: $3.64 |
| 24 |
712-3086 |
Flange Nut, M8-1.25 Price: $3.86 |
| 26 |
736-0607 |
External Lock Washer, 5/16 Price: $3.66 |
| 28 |
951-0617C |
Single Inlet Muffler This part replaces 751-0617. Price: $138.70 |
