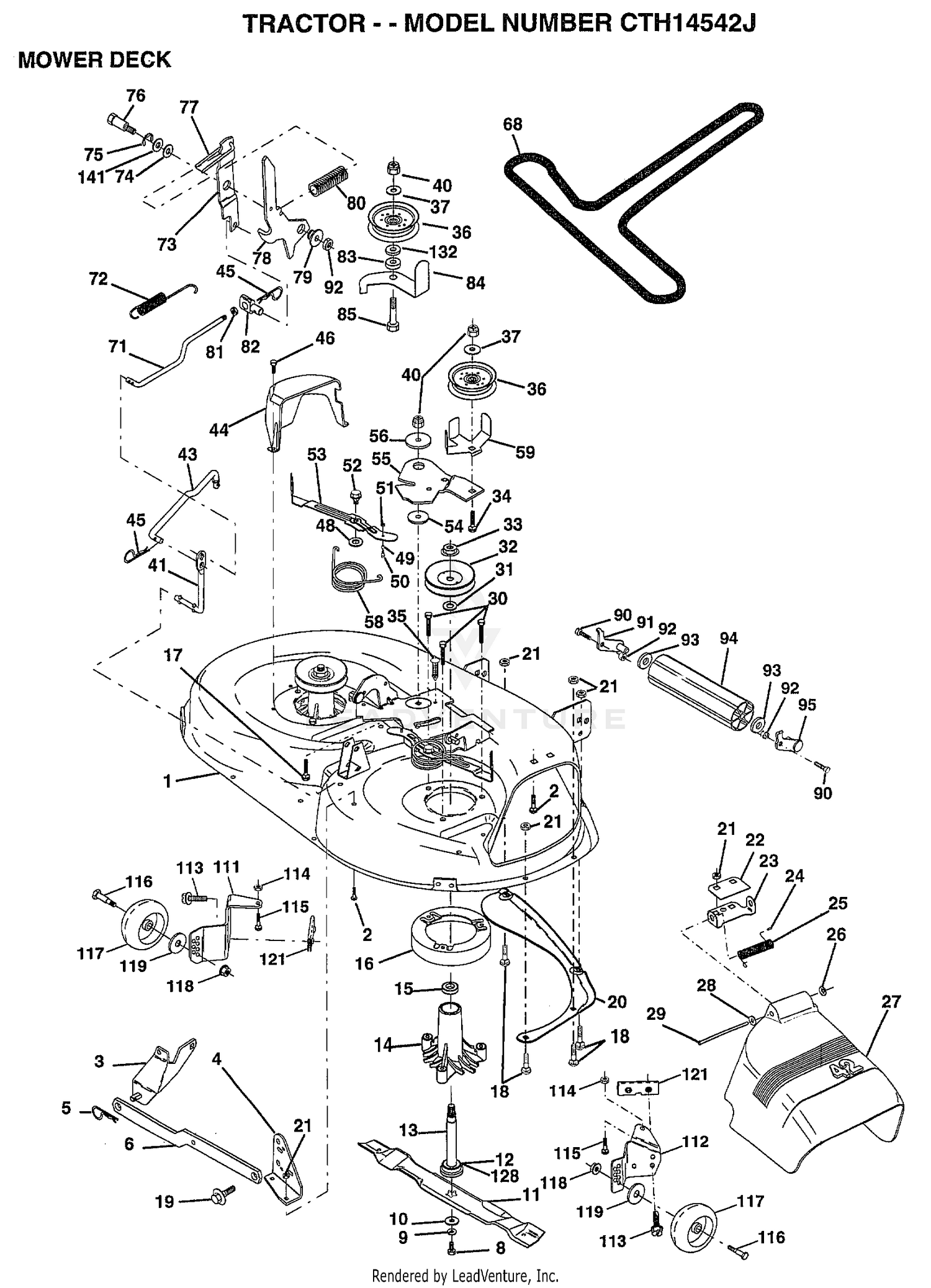

| Ref | Part Number | Description |
|---|
| 1 |
93-0032-03 |
HOUSING-SCREEN, FRONT Price: $455.35 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 2 |
75-3390-03 |
BRACKET-BACKLAP Price: $11.98 |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 3 |
66-8800 |
RELAY Price: $87.56 |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
99-8352 |
SWITCH-BACKLAP, MASTER Price: $91.81 |
| 5 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 6 |
93-6684 |
DECAL-BACKLAP Price: $7.84 |
| 7 |
322-2 |
SCREW-HH Price: $0.69 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 8 |
93-3623 |
STRIP-SEALING, RADIATOR Price: $12.44 |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
93-0077 |
HOSE ASM Price: $130.09 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
93-0078 |
HOSE ASM Price: $189.33 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
92-4999 |
FITTING Price: $67.92 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
75-1040 |
COOLER-OIL Price: $761.60 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
93-3624-03 |
PLATE-RETAINING Price: $8.64 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
321-4 |
SCREW-HH Price: $0.99 |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 16 |
98-3928 |
CLAMP-HOSE Price: $13.58 |
| 17 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 18 |
24-0760 |
DISCONTINUED Price: Call Us |
| 18 |
72140505 |
BOLT Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 19 |
340-124 |
ADAPTER Price: $23.18 |
| 20 |
159770 |
BAFFLE VORTEX 42 Price: Call Us |
| 20 |
3269-13 |
RIVET-POP Price: $0.25 |
| 21 |
100-3815 |
GROMMET-RUBBER Price: $8.15 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 22 |
93-1374 |
LATCH-SWELL Price: $27.60 |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 23 |
3269-10 |
WASHER-BACK Price: $0.61 |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 26 |
104-9257-03 |
DISCONTINUED Price: Call Us |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 27 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 28 |
19111016 |
WASHER Price: Call Us |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 30 |
70-1480 |
RELAY Price: $105.19 |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
240-3 |
GROMMET-RUBBER Price: $17.44 |
| 32 |
153535 |
PULLEY.MANDREL.42 Price: Call Us |
| 32 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 34 |
72110614 |
BOLT Price: Call Us |
| 35 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 37 |
19131316 |
WASHER Price: Call Us |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 43 |
140083 |
ROD CLUTCH W/NIBS Price: Call Us |
| 44 |
140088 |
GUARD MAND LH BLK Price: Call Us |
| 45 |
4497H |
RETAINER M Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 48 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 49 |
155066 |
ROLLER ASM-CAM Price: Call Us |
| 50 |
131340 |
SHOULDER BOLT Price: Call Us |
| 51 |
69180 |
LOCKNUT Price: Call Us |
| 52 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 53 |
131845 |
BRAKE PAD ARM ASM Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
155046 |
ARM-IDLER Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 58 |
140086 |
SPRING TORSN BRAK Price: Call Us |
| 59 |
141043 |
GUARD IDLER TUV Price: Call Us |
| 68 |
144200 |
BELT.V.T-PATH Price: Call Us |
| 71 |
142427 |
ROD CLUTCH 38/42 Price: Call Us |
| 72 |
146927 |
SPRING.EXT.RETURN Price: Call Us |
| 73 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 74 |
121748X |
WASHER Price: Call Us |
| 75 |
12000029 |
RING Price: Call Us |
| 76 |
128903 |
SHOULDER BOLT Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
160569 |
ARM CLUTCH PRIMARY Price: Call Us |
| 79 |
127498 |
BUSHING Price: Call Us |
| 80 |
153701 |
SPRING.CLUTCH.MWR Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 83 |
120958X |
WASHER Price: Call Us |
| 85 |
72140620 |
BOLT Price: Call Us |
| 90 |
74760616 |
BOLT Price: Call Us |
| 91 |
132274 |
SUB= 532132274 Price: Call Us |
| 92 |
73800600 |
NUT Price: Call Us |
| 93 |
19171416 |
WASHER Price: Call Us |
| 94 |
132264 |
SUB= 532132264 Price: Call Us |
| 95 |
132273 |
SUB= 532132273 Price: Call Us |
| 111 |
155197 |
BRACKET.GWHL.LH. Price: Call Us |
| 112 |
155198 |
BRACKET.GWHL.RH. Price: Call Us |
| 113 |
17490512 |
SCREW Price: Call Us |
| 114 |
73510500 |
NUT Price: Call Us |
| 115 |
72110504 |
SUB= 872110504 Price: Call Us |
| 116 |
4898H |
BOLT M Price: Call Us |
| 117 |
165746 |
WHEEL.GUAGE Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 121 |
143723 |
BRACKET.EXTRD.GWL Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 132 |
19132203 |
WASHER GT Price: Call Us |
| 141 |
6266H |
WASHER .T Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
