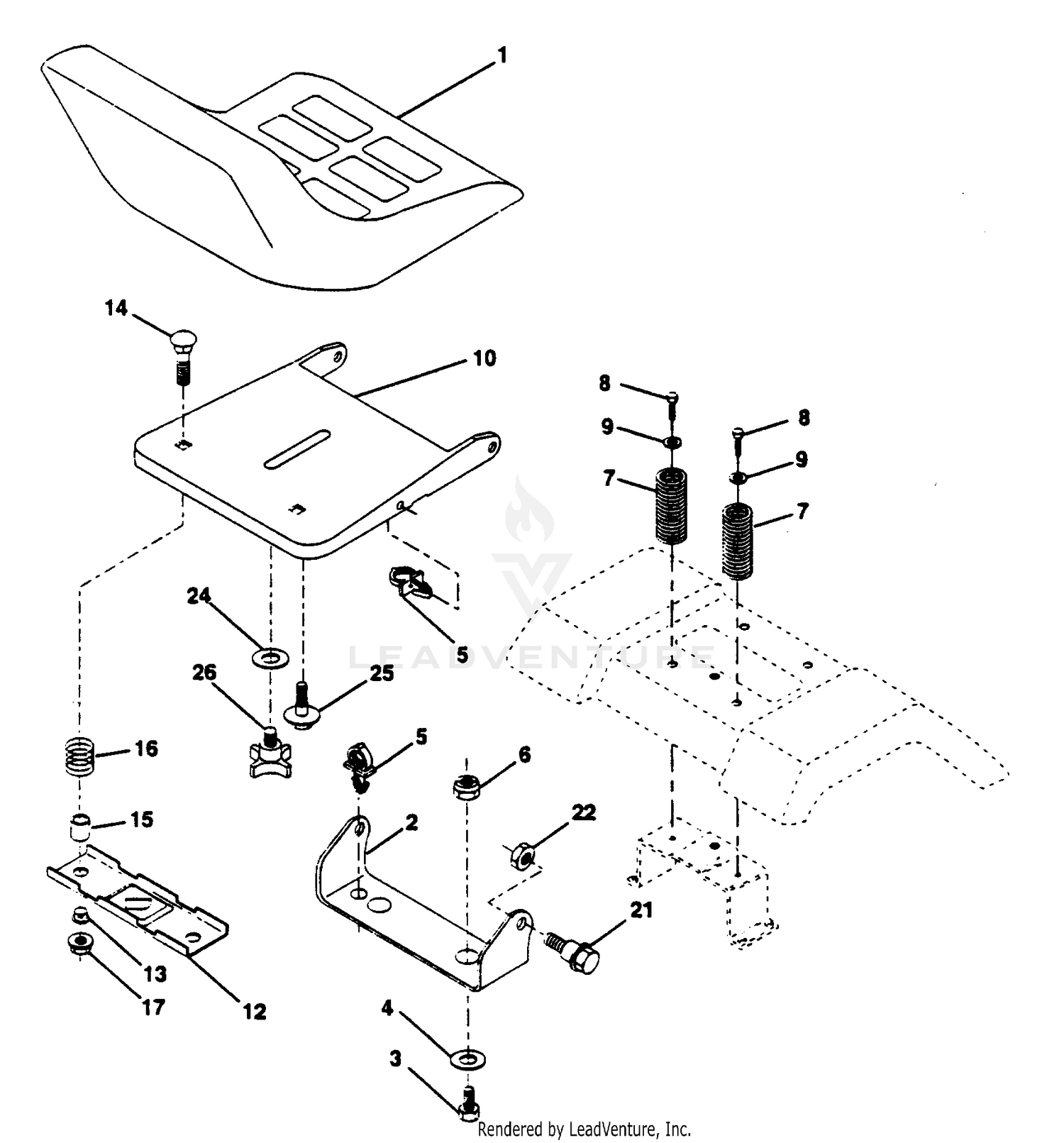

| Ref | Part Number | Description |
|---|
| 1 |
5-0743-03 |
SPRING-MOWER Price: $188.53 |
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532127429. Price: $180.99 |
| 2 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 2 |
532140551 |
Bracket Pivot Seat 8 720 Price: $3.99 |
| 3 |
282-4 |
SHACKLE Price: $32.98 |
| 3 |
874780616 |
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 This part replaces 874760616. Price: $3.99 |
| 4 |
32151-48 |
E-RING Price: $1.41 |
| 4 |
819131610 |
Washer 13/32 X 3/4 X 10 Ga Price: $3.99 |
| 5 |
532140407 |
Clip Push-In .375 x .250 Price: $3.99 |
| 5 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 6 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 6 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 7 |
539110300 |
SRPING.SEAT This part replaces 532124181. Price: $2.99 |
| 7 |
98-4548-03 |
BRACKET-SPRING, RH Price: $42.16 |
| 8 |
817000616 |
Screw 3/8-16 x 1-1/2 Smgml Tap/R Z This part replaces 817490616. Price: $3.99 |
| 8 |
98-4536-03 |
BRACKET-SPRING, LH Price: $42.16 |
| 9 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 9 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131614. Price: $3.99 |
| 10 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
532195530 |
PAN, SEAT This part replaces 532140552. Price: $14.99 |
| 11 |
100-3831-01 |
BRACKET-ROLLER, LH Price: $69.47 |
| 12 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 12 |
532174648 |
Bracket Mounting Switch This part replaces 532121246. Price: $4.99 |
| 13 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 13 |
532121248 |
Bushing Snap Blk Nyl 50 Id Price: $3.99 |
| 14 |
75-5400 |
PIN-ROLLER Price: $26.06 |
| 14 |
872050411 |
Bolt Rdhd Sht Nk 1/4-20x1-3/8 Price: $2.99 |
| 15 |
532121249 |
Spacer Split 28x 96 Yel Zinc Price: $3.99 |
| 15 |
75-5390 |
ROLLER Price: $56.69 |
| 16 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 16 |
532123740 |
Spring Cprsn 1 27 Blk Pnt Price: $3.99 |
| 17 |
75-5360 |
PIN-CYLINDER Price: $72.33 |
| 17 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 532123976. Price: $2.69 |
| 18 |
108-4432 |
CYLINDER-HYD, LIFT This part replaces 93-9311. Price: $730.09 |
| 19 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 20 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 21 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 21 |
532139888 |
Bolt Shoulder 5/16-18 Type T.T.T.R. Price: $2.99 |
| 22 |
104-0046 |
PIN-SLIDE, CYLINDER Price: $10.19 |
| 22 |
873800500 |
Nut Lock 5/16-18 Price: $2.69 |
| 23 |
93-0069-03 |
PIN-REAR Price: $424.34 |
| 24 |
819171912 |
Washer 17/32 X 1-3/16 X 12 Ga Price: $3.99 |
| 25 |
322-6 |
SCREW-HH Price: $0.45 |
| 25 |
532127018 |
Bolt Shoulder 5/16-18 X 62 Price: $3.99 |
| 26 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
