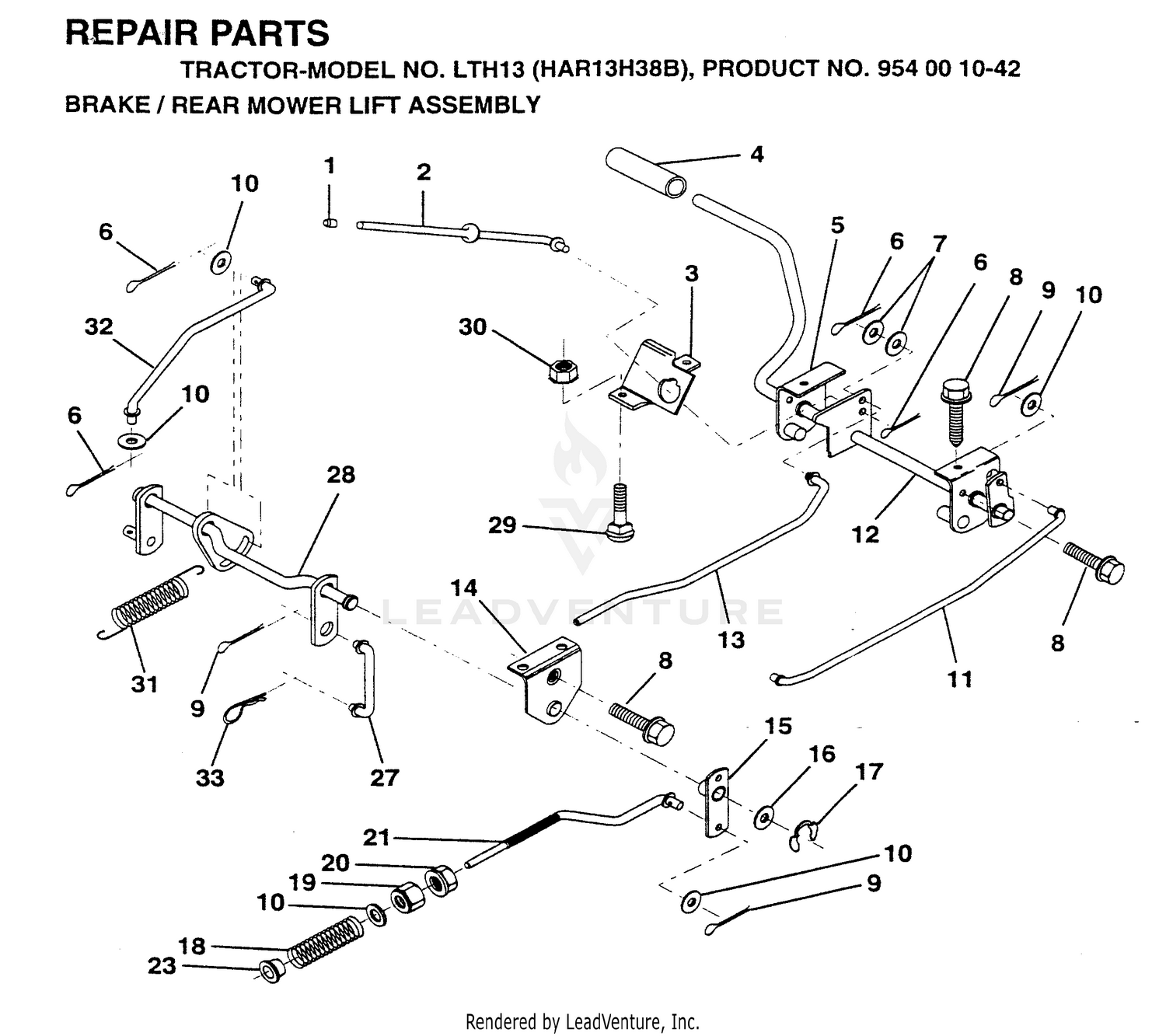

| Ref | Part Number | Description |
|---|
| 1 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 1 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 2 |
532123436 |
ROD,PARK BRAKE Price: $4.99 |
| 2 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 3 |
120-8095 |
PEDAL Price: Call Us |
| 3 |
532123437 |
BRKT,PARK BRAKE Price: $4.46 |
| 4 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 4 |
532008156 |
FOOT PEDAL COVER Price: $2.64 |
| 5 |
532132205 |
BRACKET CLUTCH PDL Price: $4.84 |
| 5 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 6 |
117-9507 |
PEDAL-ACCELERATOR Price: $12.86 |
| 6 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 7 |
323-29 |
SCREW-HH Price: $0.42 |
| 7 |
819131016 |
WASHER Price: $2.99 |
| 8 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 8 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 9 |
3220-3 |
NUT-HJ Price: $0.28 |
| 9 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 10 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 10 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 11 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 11 |
532123543 |
ROD,FRT BRAKE Price: $8.38 |
| 12 |
322-2 |
SCREW-HH Price: $0.69 |
| 12 |
532139934 |
PEDAL ASSY Price: $23.69 |
| 13 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 13 |
532123394 |
ROD,CLUTCH Price: $7.99 |
| 14 |
32128-20 |
NUT-HF Price: $0.99 |
| 14 |
532121978 |
BRKT,LIFT SHAFT Price: $2.38 |
| 15 |
532133332 |
ARM, BRAKE ASMBLY Price: $6.71 |
| 16 |
114-5608 |
SPACER-STANDOFF Price: $15.74 |
| 16 |
819251816 |
WASHER T Price: $4.99 |
| 17 |
812000034 |
Ring, Klip Truarc #5304-75 Price: $2.99 |
| 18 |
120-8088-0P |
HUB-TRACTION PEDAL PIVOT This part replaces 120-8088-03. Price: $69.27 |
| 18 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 19 |
115-4383 |
SHAFT-SPRING Price: $38.84 |
| 19 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 21 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 21 |
532144413 |
ROD Price: $12.18 |
| 22 |
92-7608-03 |
BRACKET-SPRING Price: $16.86 |
| 23 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 24 |
84-9100 |
SPRING Price: $11.99 |
| 25 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 27 |
532136780 |
LINK LIFT REAR Price: $6.99 |
| 28 |
532140777 |
LIFT ASMBLY REAR Price: $19.69 |
| 29 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 30 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 31 |
532133095 |
COUNTER SPRING Price: $6.99 |
| 32 |
117-2718 |
DECAL-ARRESTER, SPARK Price: $5.95 |
| 32 |
532133721 |
LIFT LEVER LINK Price: $13.90 |
| 33 |
120-8038 |
HUB ASM Price: $121.12 |
| 33 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 36 |
114-5609 |
SENSOR-POSITION Price: $371.51 |
| 37 |
114-5595 |
PLATE-CAPTURE Price: $5.99 |
| 38 |
32105-21 |
SCREW-HH Price: $1.09 |
| 40 |
120-8091 |
SHAFT-PIVOT, TRACTION Price: $33.82 |
| 41 |
32121-69 |
PIN-SPRING Price: $1.79 |
| 43 |
120-8089 |
PLATE-COVER, SENSOR Price: $3.38 |
| 44 |
121-3099 |
PLUG-PANEL, PLASTIC Price: $1.87 |
| 45 |
32121-78 |
PIN-ROLL Price: $3.09 |
| 46 |
3290-321 |
SCREW-HWH Price: $3.99 |
