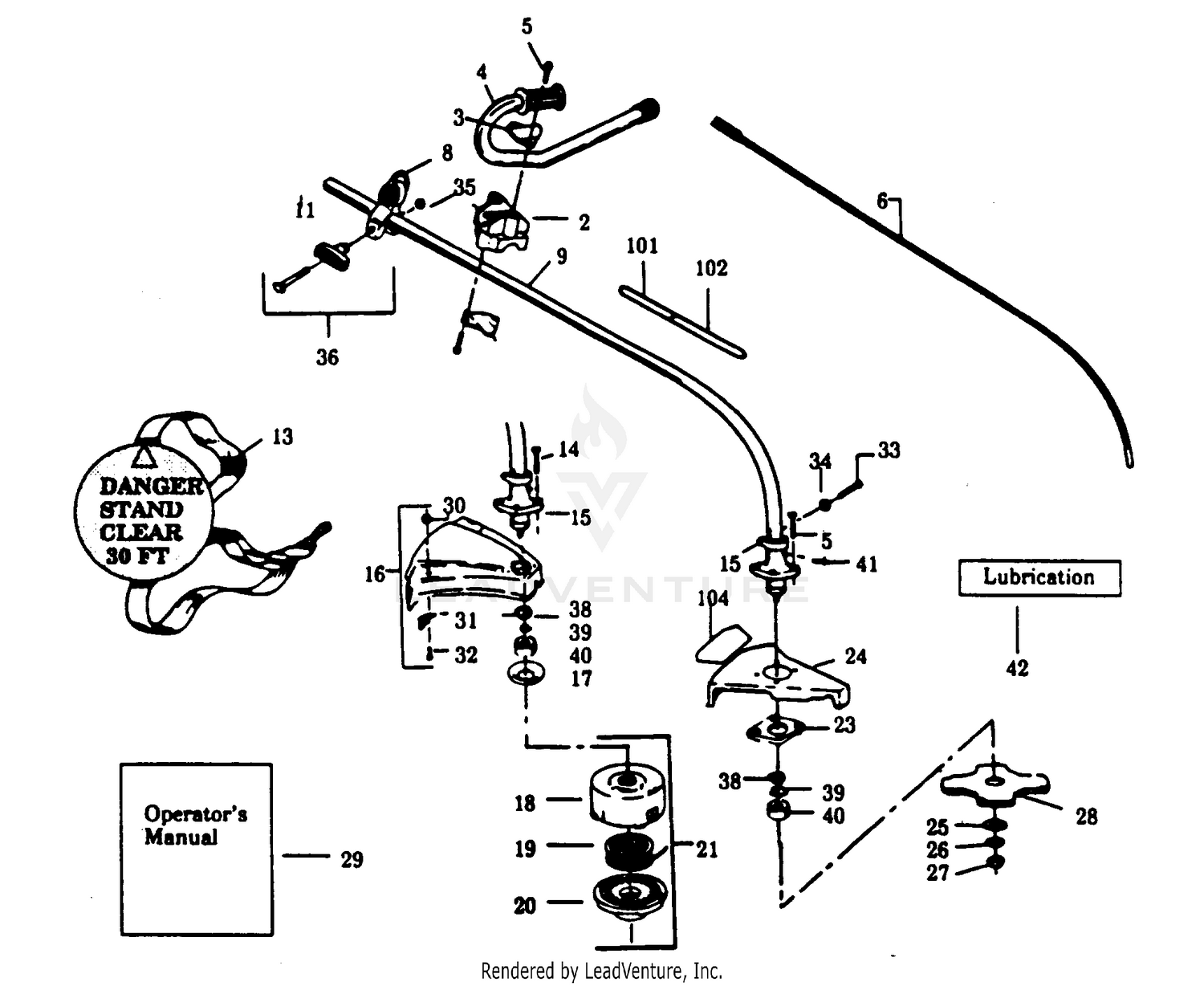

| Ref | Part Number | Description |
|---|
| 1 |
323-8 |
SCREW-HH Price: $1.20 |
| 2 |
29-4240 |
DISCONTINUED Price: Call Us |
| 2 |
530012207 |
Handlebar Clamp Price: $8.99 |
| 3 |
29-4270 |
DISCONTINUED Price: Call Us |
| 3 |
530094572 |
Handlebar Bracket Price: $1.99 |
| 4 |
29-3230 |
DISCONTINUED Price: Call Us |
| 4 |
530093169 |
Handlebar Price: Call Us |
| 5 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 5 |
530015791 |
Screw 1/4 - 20 x 1- 1/16 Price: $1.99 |
| 6 |
321-3 |
SCREW-HH Price: $0.28 |
| 6 |
530092261 |
Drive Shaft (Flex) Price: $19.99 |
| 7 |
38-5790 |
DISCONTINUED Price: Call Us |
| 8 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 8 |
530094686 |
Clamp Harness Ass'y. This part replaces 530094598. Price: $4.99 |
| 9 |
29-9870 |
DISCONTINUED X-REF Price: Call Us |
| 9 |
530093726 |
Drive Shaft Housing Price: $3.33 |
| 10 |
32103-12 |
NUT-WING Price: $1.15 |
| 11 |
218-331 |
BATTERY BOOT Price: $9.89 |
| 12 |
7-3328 |
DISCONTINUED Price: Call Us |
| 13 |
530094417 |
Shoulder Strap This part replaces 530094638. Price: $20.65 |
| 13 |
55-7500 |
DISCONTINUED This part replaces 39-2240. Price: Call Us |
| 14 |
29-8970 |
WASHER *O Price: $6.65 |
| 14 |
530016107 |
Screw This part replaces 530015790. Price: $1.99 |
| 15 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 15 |
530094581 |
Bearing Housing Ass'y. Price: $59.99 |
| 16 |
323-14 |
SCREW-HH Price: $1.34 |
| 16 |
530094594 |
Shield Kit Ass'y. (Incl. #14 30 31, 32) Price: $3.33 |
| 17 |
323-20 |
SCREW-HH Price: $1.28 |
| 17 |
530094571 |
Grass Washer Price: $1.99 |
| 18 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 18 |
530094620 |
Hub Ass'y. Price: Call Us |
| 19 |
702556 |
Spool w/Line Price: Call Us |
| 20 |
530094494 |
Cover Price: $4.99 |
| 21 |
952702553 |
Cutting Head Ass'y. (Incl. #18, 19, 20) Price: Call Us |
| 23 |
530027615 |
Shield Retention Plate Price: $3.99 |
| 24 |
530094576 |
Shield Price: $3.33 |
| 25 |
530093751 |
Washer Price: $3.33 |
| 26 |
530016240 |
Washer--Belleville This part replaces 530015492. Price: $1.99 |
| 27 |
530093748 |
Nut 3/8 Price: $2.99 |
| 28 |
952701546 |
Weed Blade Price: Call Us |
| 29 |
530067173 |
Operator's Manual Price: $3.33 |
| 30 |
530403094 |
Nut This part replaces 530015217. Price: $1.99 |
| 31 |
530094570 |
Line Limiter Price: $1.99 |
| 32 |
530015037 |
Screw # 10 - 24 x 5/8 Price: $1.99 |
| 33 |
530625509 |
Screw 1/4 - 20 x 1 Price: $1.99 |
| 34 |
530092227 |
Washer Price: $0.99 |
| 35 |
530015197 |
Locknut 1/4 - 20 Price: $1.99 |
| 36 |
530069347 |
HANDLE KIT This part replaces 530069252. Price: $4.99 |
| 38 |
530091783 |
Retaining Ring Price: $1.99 |
| 39 |
530092216 |
Washer Price: $1.99 |
| 40 |
530092359 |
Dust Cup Price: $4.99 |
| 41 |
530015518 |
Screw Price: $1.99 |
| 42 |
952708514 |
LUBE, FLEX SHAFT NLA This part replaces 530030102. Price: Call Us |
| 101 |
530027864 |
Decal - Shaft Warning (Upper) Price: $3.33 |
| 102 |
530027865 |
Decal - Shaft Warning (Lower) Price: $3.33 |
