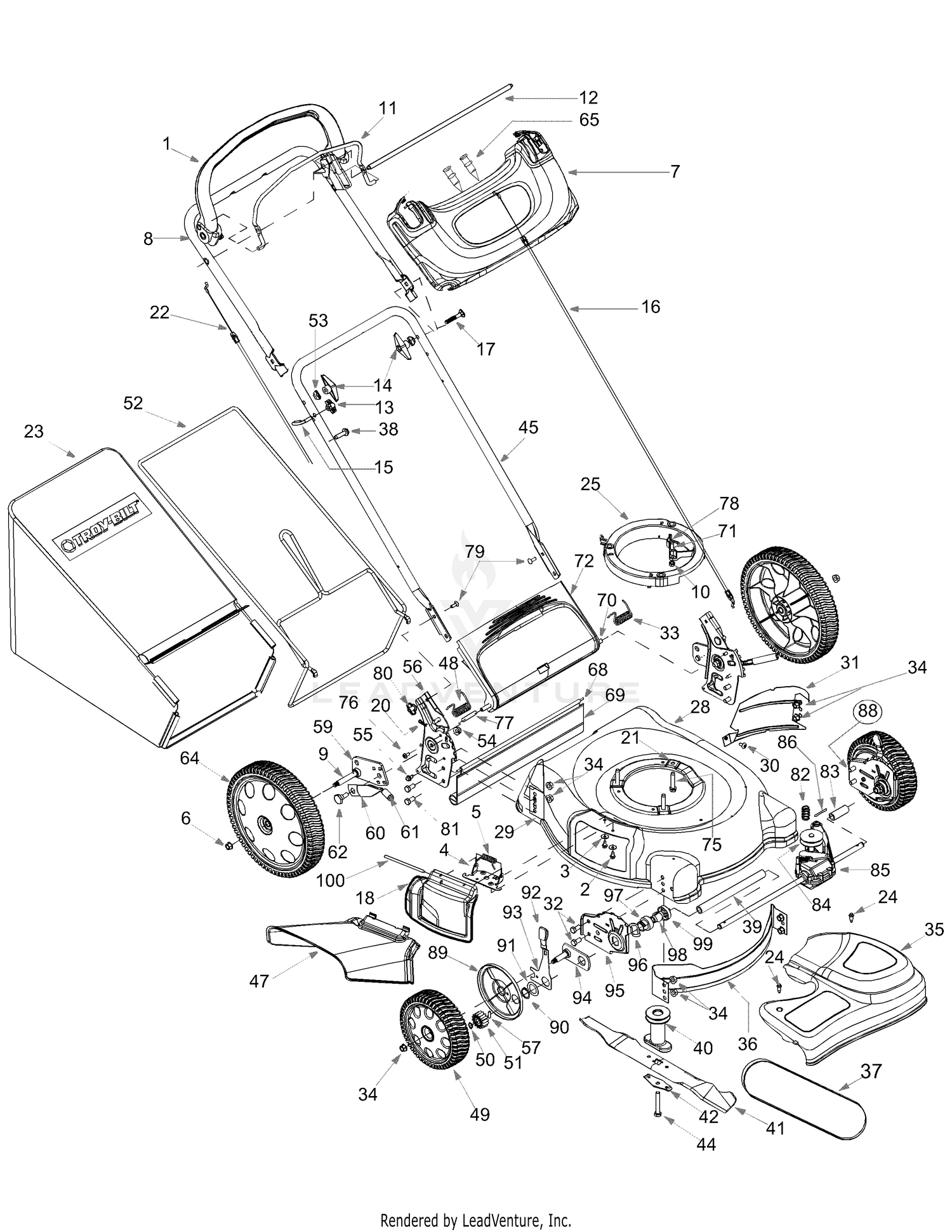

| Ref | Part Number | Description |
|---|
| 1 |
631-04025 |
Handle Assembly Comp.: Red Not Available Price: |
| 2 |
710-0599 |
TT Screw 1/4-20 x 0.5 Price: $3.86 |
| 3 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 4 |
782-7006 |
MOUNTING BRACKET Not Available Price: |
| 5 |
732-1014C |
TORSION SPRING This part replaces 732-1014. Price: $7.40 |
| 6 |
712-3005 |
Lock Nut Price: $5.99 |
| 7 |
731-04087A |
HANDLE PANEL Not Available This part replaces 731-2628A. Price: |
| 8 |
749-1507-0637 |
UPPER HANDLE (POWDER BLACK) Not Available This part replaces 749-1507. Price: |
| 9 |
N/A |
Axle: Rear |
| 10 |
712-0271 |
Hex Nut Price: $3.78 |
| 11 |
747-2133A-0637 |
BAIL Not Available This part replaces 747-2133A. Price: |
| 12 |
747-2132A |
CONTROL ROD Not Available Price: |
| 13 |
720-0279 |
Handle Knob Price: $3.93 |
| 14 |
720-0284 |
Handle Knob Price: $4.08 |
| 15 |
710-1205 |
Eye Bolt Price: $3.53 |
| 16 |
946-1252 |
CONTROL CABLE This part replaces 746-1252. Price: $17.47 |
| 17 |
710-1174 |
Carriage Bolt 5/16-18 x 2.0 Price: $6.28 |
| 18 |
987-02055 |
Hinged Mulch Plug Assembly This part replaces 687-02055. Price: $24.18 |
| 20 |
714-0104 |
Cotter Pin Price: $3.90 |
| 21 |
710-1008 |
Self-Tapping Sems Screw Price: $4.75 |
| 22 |
946-1250 |
Fwd Drive Cable: Smart Speed (TM) This part replaces 746-1250. Price: $30.98 |
| 23 |
964-04007A |
Grass Bag This part replaces 664-04011. Price: $114.46 |
| 24 |
710-1650 |
Shoulder Screw # 12 -24 Price: $4.22 |
| 25 |
631-0075B |
ENGINE SPACER ASSEMBLY Not Available Price: |
| 26 |
710-0606 |
Hex Bolt 1/4-20 x 1.5 Price: $4.67 |
| 27 |
712-0324 |
Lock Nut 1/4-20 Price: $3.38 |
| 29 |
782-5004B |
RH Rear Baffle This part replaces 782-5004A. Price: $21.86 |
| 30 |
710-1017 |
Screw AB: 1/4-14: .625 Price: $7.26 |
| 31 |
782-5003A |
LH Rear Baffle This part replaces 782-5003. Price: $26.48 |
| 32 |
710-0216 |
Hex Screw 3/8-16 x .75 Price: $3.93 |
| 33 |
732-04089A |
Torsion Spring - LH (not shown) This part replaces 732-04089. Price: $7.00 |
| 34 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 35 |
931-05132A |
TRANSMISSION COVER (BLACK) Not Available This part replaces 731-04584. Price: |
| 36 |
782P5002B |
FRONT BAFFLE Not Available This part replaces 782-5002A. Price: |
| 37 |
954-04032B |
V-Belt This part replaces 754-0465. Price: $23.31 |
| 38 |
710-0817 |
TT-Scr. 5/16-18 Price: $5.77 |
| 39 |
750-1210 |
SLEEVE SPACER Not Available This part replaces 750-1165. Price: |
| 40 |
948-04015A |
Blade Adapter w/ Pulley This part replaces 748-04015A. Price: $60.75 |
| 41 |
942-0741A |
Blade This part replaces 742-0741. Price: $27.55 |
| 42 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524A. Price: $5.34 |
| 44 |
710-1257 |
Hex Screw 3/8-24 x 2.50 Price: $7.02 |
| 45 |
749-0907B |
Lower Handle Price: $43.95 |
| 47 |
731-04177 |
Chute Deflector Price: $16.88 |
| 48 |
732-04090A |
Torsion Spring - RH This part replaces 732-04090. Price: $6.66 |
| 49 |
734-04018C |
Wheel 8 x 2.125 This part replaces 734-04018. Price: $16.82 |
| 50 |
716-0865 |
Snap Ring Price: $3.86 |
| 51 |
717-1761 |
Gear 14T LH FWD Price: $12.11 |
| 52 |
747-04080A |
Grass Bag Frame This part replaces 747-04080. Price: $52.39 |
| 53 |
736-0451 |
Saddle Washer Price: $3.75 |
| 54 |
712-3005 |
Hex Flange Lock Nut 3/8-16 Price: $5.99 |
| 55 |
710-1652 |
Tt Screw 1/4-20 x .625" Price: $3.86 |
| 56 |
687-02056 |
HANDLE BRACKET ASSEMBLY (RH) Not Available Price: |
| 56 |
687-02057 |
HANDLE BRACKET ASSEMBLY (LH) Not Available Price: |
| 57 |
915-0221 |
Dowel Pin This part replaces 715-0221. Price: $3.93 |
| 58 |
710-0286 |
Pan Head Screw Price: $3.86 |
| 59 |
987-02335 |
Pivot Bar RH This part replaces 687-02039. Price: $23.73 |
| 60 |
732-0866 |
HEIGHT ADJUSTMENT LEVER Not Available Price: |
| 61 |
720-0312 |
Foam Grip Price: $4.06 |
| 62 |
738-0507B |
Shoulder Scr .500 Dia. x .434 Price: $3.86 |
| 63 |
736-0105 |
Washer .401 x .870 x .063 Price: $3.96 |
| 64 |
734-04019 |
Wheel, 12 x 2.125 Price: $61.69 |
| 65 |
728-0199 |
Plastic Rivet Price: $4.08 |
| 66 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 7360272. Price: $4.37 |
| 67 |
938-0481A |
Shoulder Screw This part replaces 738-0481A. Price: $6.30 |
| 68 |
732P0700 |
TRAILSHIELD WIRE This part replaces 732-0700. Price: $3.85 |
| 69 |
731-04998 |
Trailshield This part replaces 731-1236. Price: $27.86 |
| 70 |
747-0996 |
Pivot Rod Price: $28.10 |
| 71 |
711-1293 |
Belt Keeper Pin Price: $4.21 |
| 72 |
931-04134 |
REAR DOOR 21" Not Available This part replaces 731-04134. Price: |
| 75 |
710-1650 |
Shoulder Screw Price: $4.22 |
| 77 |
950-04162 |
SPACER Not Available This part replaces 750-04162. Price: |
| 78 |
738-1002 |
SHOULDER SCREW .375X.25AB1/4-20 Not Available Price: |
| 79 |
710-0703 |
Carriage Bolt 1/4-20 Price: $3.66 |
| 80 |
712-0397A |
WING NUT This part replaces 712-0397. Price: $3.71 |
| 81 |
710-0216 |
Hex Bolt 3/8-16 x 1.0 Price: $3.93 |
| 82 |
732-1043 |
Belt Tension Spring Price: $4.02 |
| 83 |
750-1166 |
Slev. Spacer 2.1" Lg. Price: $4.08 |
| 84 |
756-1231 |
INPUT PULLEY W/PIN Not Available Price: |
| 85 |
918-04006 |
Transmission Assembly This part replaces 618-04006. Price: $273.99 |
| 88 |
987-02194A |
Height Adjustment Assembly RH This part replaces 682-0512A. Price: $58.00 |
| 89 |
782-7551A |
Wheel Dust Cap This part replaces 782-7551. Price: $4.80 |
| 90 |
716-0102 |
Snap Ring Price: $4.40 |
| 91 |
736-0474 |
Washer Price: $5.94 |
| 92 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 93 |
732-0706 |
Front Lever RH Price: $14.83 |
| 94 |
687-02044 |
PIVOT PLATE ASSEMBLY Not Available Price: |
| 95 |
782-0512B-0637 |
Height Adjuster Plate - RH This part replaces 782-0512B. Price: $20.16 |
| 96 |
736-0447 |
Wave Washer Price: $3.90 |
| 97 |
748-0355 |
SUPPORT BEARING Not Available Price: |
| 98 |
741-0604A |
Bearing Sleeve Price: $11.31 |
| 99 |
732-0708 |
BEARING RETAINER Not Available Price: |
