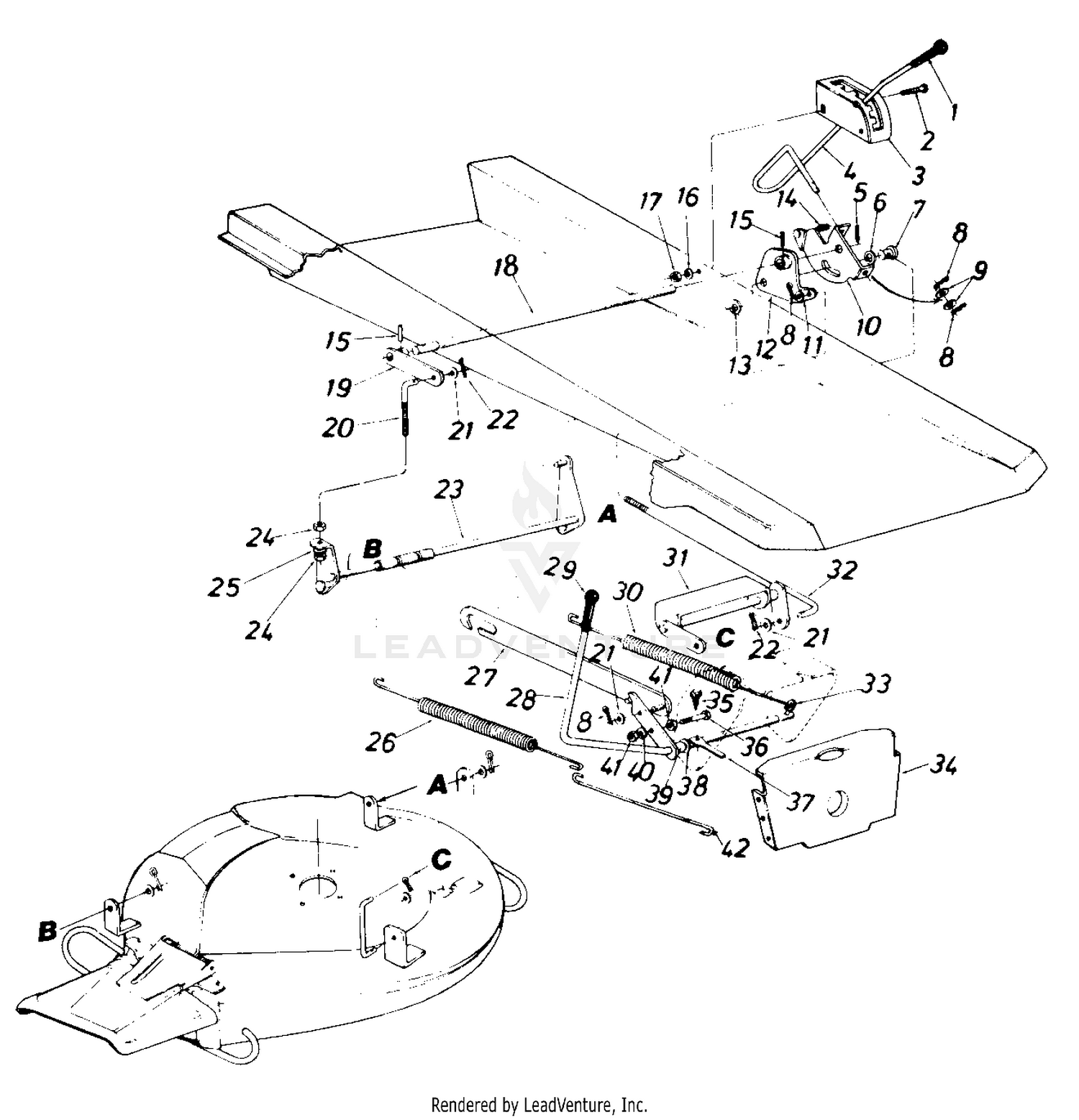

| Ref | Part Number | Description |
|---|
| 1 |
720-0143 |
GRIP Not Available Price: |
| 2 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg.* Price: $4.02 |
| 3 |
16397 |
BRACKET-DECK INDEX Not Available Price: |
| 4 |
747-0651 |
DECK LIFT HANDLE Not Available Price: |
| 5 |
915-0134 |
SPRING PIN3/16 x 1.50 Not Available This part replaces 715-0134. Price: |
| 6 |
736-0187 |
Fl-Wash. .385" I.D. x .87" O.D. Price: $4.02 |
| 7 |
711-0749 |
FERRULE Not Available Price: |
| 8 |
714-0115 |
Cotter Pin 1/8" Dia. x 1.00" Lg.* Price: $3.48 |
| 9 |
736-0160 |
Fl-Wash. .531" I.D. x .930" O.D. Price: $3.90 |
| 10 |
16402 |
DECK LIFT HANDLE RETAINER ASS'Y . Not Available Price: |
| 11 |
736-0300 |
Fl-Wash. .385" I.D. x .87" O.D. Price: $3.93 |
| 12 |
15578 |
BRACKET ASSY-LIFT-LH Not Available Price: |
| 13 |
736-0162 |
Fl-Wash. .635" I.D. x 1.04" O.D. Price: $3.86 |
| 14 |
732-0430 |
COMPRESSION SPRING Not Available Price: |
| 15 |
715-0114 |
Spring Pin Spir. 1/4" Dia. x 1.50" Lg. Price: $8.68 |
| 16 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 17 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 18 |
738-0550 |
SHAFT-HGT ADJ-RR Not Available Price: |
| 19 |
15609 |
BRACKET ASSY-LIFT-RH Not Available Price: |
| 20 |
710-0866 |
SCREW-DECK ADJ 3/8-16 THD Not Available Price: |
| 21 |
736-0300 |
Fl-Wash. .385" I.D. x .87" O. D. Price: $3.93 |
| 22 |
714-0145 |
Intern. Cotter Pin 1/2" Dia. Price: $4.42 |
| 23 |
15600 |
Deck Link Ass'y.-Rear Price: Call Us |
| 24 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 25 |
736-0169 |
L-Wash. 3/8" I.D.* Price: $3.33 |
| 26 |
732-0540 |
EXTENSION SPRING Not Available Price: |
| 27 |
15644 |
BRACKET ASSY-DECK DR Not Available Price: |
| 28 |
15568A |
LEVER ASSEMBLY-BLADE E Not Available This part replaces 15568. Price: |
| 29 |
720-0143 |
GRIP Not Available Price: |
| 30 |
732-0540 |
EXTENSION SPRING Not Available Price: |
| 31 |
15573 |
DECK LIFT ASS'Y. FRONT Not Available Price: |
| 32 |
747-0426 |
CONNECTING ROD Not Available Price: |
| 33 |
711-0753 |
CLEVIS PIN Not Available Price: |
| 34 |
15613 |
BRACKET-PIVOT BAR Not Available Price: |
| 35 |
710-0642 |
Hex TT-Tap Scr. 1/4-20 x .75" Lg. Price: $4.05 |
| 36 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 37 |
732-0435 |
ACTUATOR-SWITCH Not Available Price: |
| 38 |
736-0160 |
Fl-Wash. .531" I.D. x .930" O.D. Price: $3.90 |
| 39 |
750-0515 |
Spacer .511" I.D. x .70" O.D. x.38" Lg. Price: $3.85 |
| 40 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 41 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
