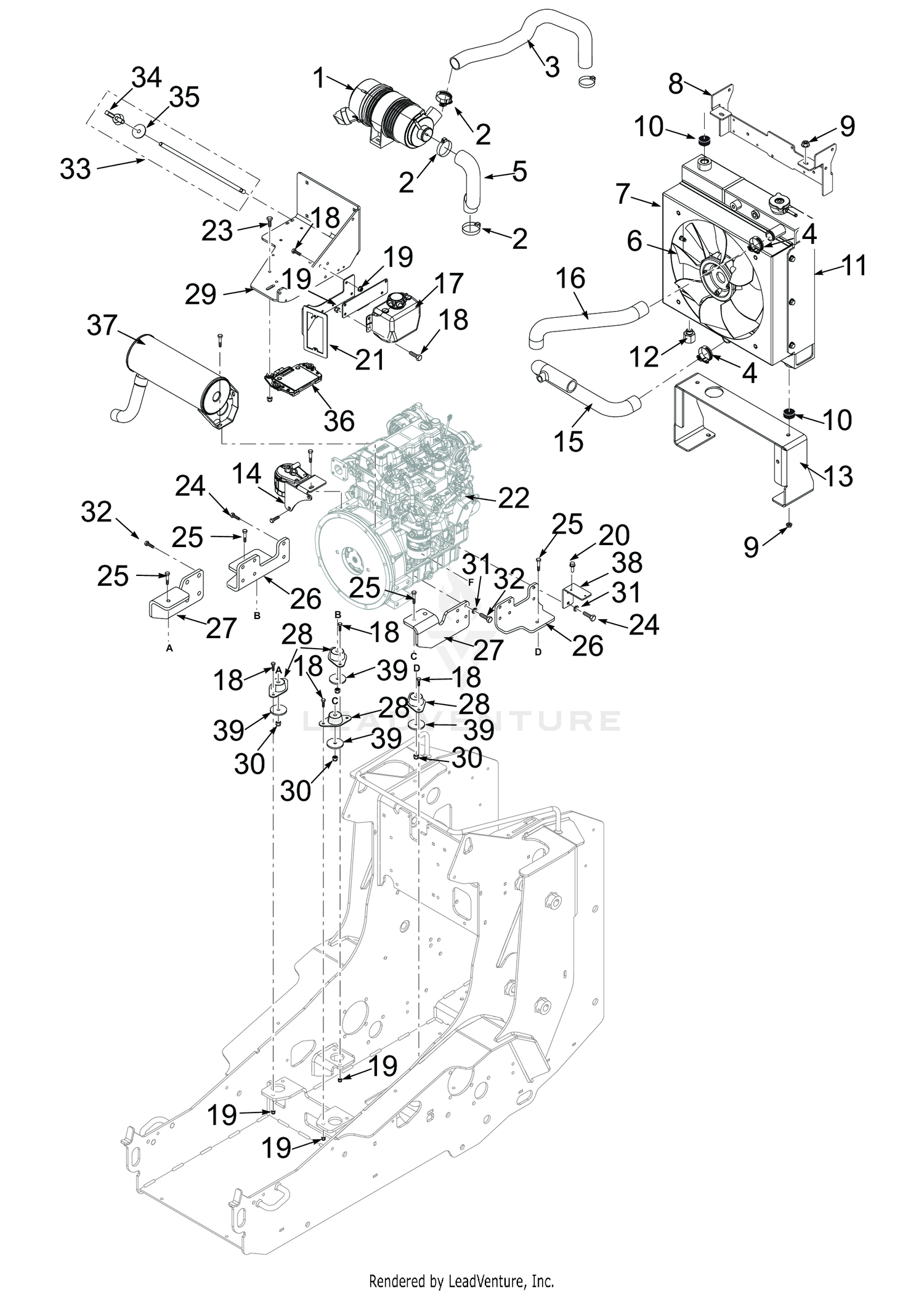

| Ref | Part Number | Description |
|---|
| 1 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
48136-25 |
Clamp, 2-3/4" Max. Dia. Price: Call Us |
| 2 |
5-1470 |
SCREW-HH Price: $0.61 |
| 3 |
487607 |
Hose, Air Cleaner Inlet To Filter Price: Call Us |
| 4 |
48136-28 |
Clamp Price: Call Us |
| 5 |
487606 |
Hose, Engine Price: Call Us |
| 6 |
488675 |
Radiator Fan, 350MM Price: Call Us |
| 7 |
429783 |
Shroud, Fan Price: Call Us |
| 8 |
429545 |
Bracket, Valve Mtg Price: Call Us |
| 9 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 10 |
487872 |
Isolator, Radiator Price: Call Us |
| 11 |
488674 |
Cooler Price: Call Us |
| 12 |
487735-05 |
Fitting, Reducer - Straight Price: Call Us |
| 13 |
429750 |
Bracket, Cooler Support Price: Call Us |
| 14 |
488672 |
Bracket, Oil Filter Price: Call Us |
| 15 |
488678 |
Hose, Water Inlet Price: Call Us |
| 16 |
488677 |
Hose, Water Outlet Price: Call Us |
| 17 |
488684 |
Expansion Tank Price: Call Us |
| 18 |
04017-17 |
Cpscrw, 5/16-18 x 1"Serrated Flange Hex Head Price: Call Us |
| 19 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 20 |
04011-14 |
Screw, Self-Tapping 1/4-20 x 3/4 Price: Call Us |
| 21 |
429451 |
Bracket, Fuse Box Price: Call Us |
| 23 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 24 |
04002-18 |
Bolt, Hex Head M10-1.5 x 25 fULL Thread Price: Call Us |
| 25 |
04001-22 |
Capscrew, Hex Head 3/8-16 x 2.75" Price: Call Us |
| 26 |
429341 |
Support, Engine Mtg - Rear LH Price: Call Us |
| 27 |
429343 |
Support, Engine Mtg - Front LH Price: Call Us |
| 28 |
487846 |
Isolator, Flange Mount Price: Call Us |
| 29 |
429827 |
Battery Support Price: Call Us |
| 30 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 31 |
04040-07 |
Flatwasher, 1/2 - .531 x 1.062 x .095 Price: Call Us |
| 32 |
04002-36 |
Metric HH Capscrew M12-1.75 X 30 LG Price: Call Us |
| 34 |
04125-02 |
WING-NUT, 1/4-20 UNC Price: Call Us |
| 35 |
04040-14 |
Flatwasher, 1/4" (.312 x .750 x .065") Price: Call Us |
| 37 |
488673 |
Muffler, KSD Price: Call Us |
| 38 |
429533 |
Bracket Cooler MTG Price: Call Us |
| 39 |
431268 |
Spacer, Isolator Price: Call Us |
| 429342 |
Support, |
Engine MTG - Rear RH Price: Call Us 429342 |
| 429344 |
Support, |
Engine Mtg - Front RH Price: Call Us 429344 |
