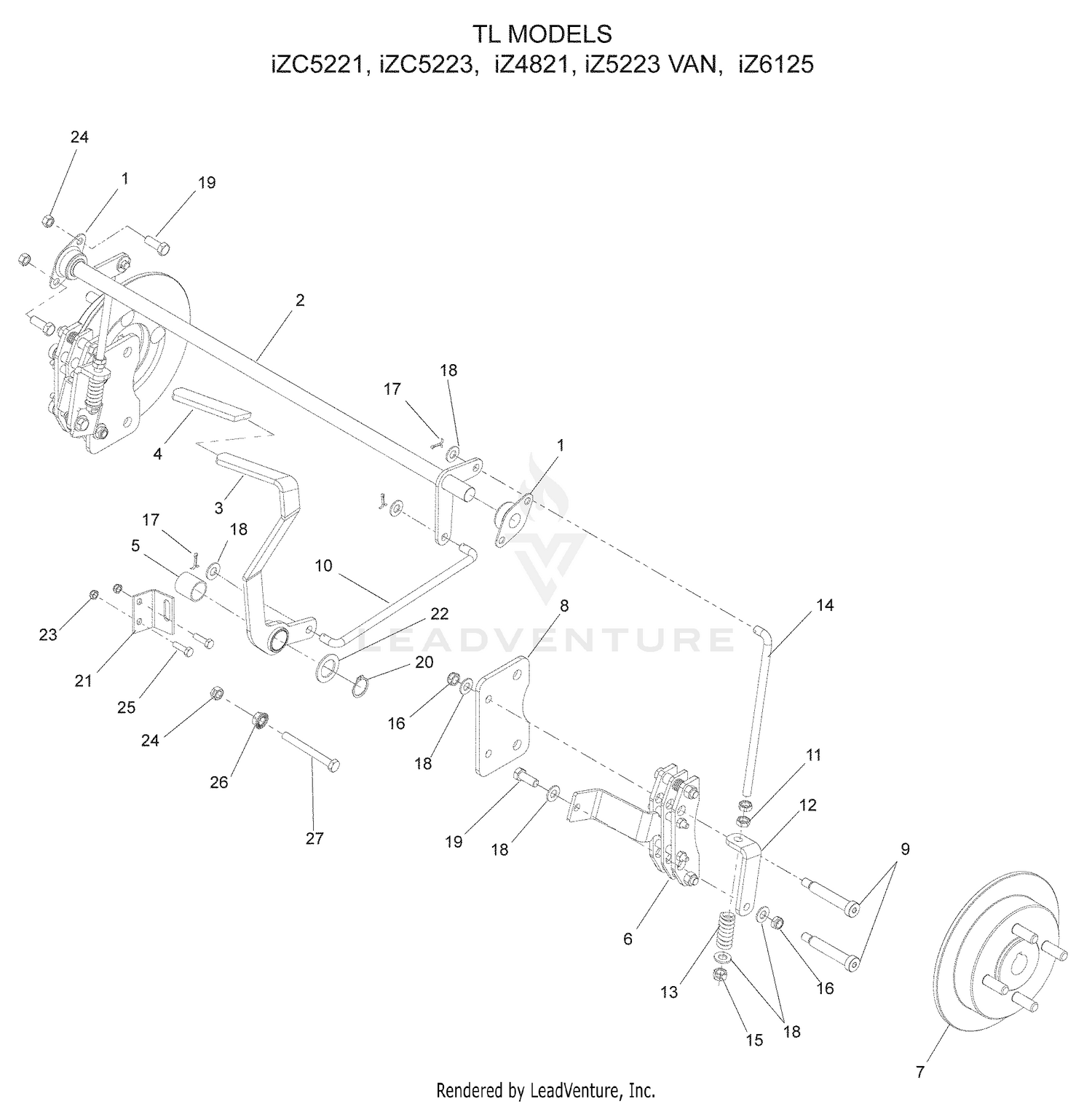

| Ref | Part Number | Description |
|---|
| 1 |
539102797 |
FLANGE BEARING Price: $9.99 |
| 1 |
93-7836 |
DECAL-PEDAL, TRACTION This part replaces 27-7320. Price: $14.38 |
| 2 |
539106969 |
BRAKE CROSS SHAFT Price: $34.99 |
| 2 |
70-2200 |
DECAL Price: $5.09 |
| 3 |
539108616 |
BRAKE LEVER WLDMT Price: $44.99 |
| 3 |
66-6390 |
DECAL-CAUTION Price: $27.63 |
| 4 |
21-2660-01 |
PLATE-SIDE This part replaces 21-2660. Price: $299.86 |
| 4 |
539105036 |
GRIP, PARK BRAKE Price: $3.99 |
| 5 |
32128-21 |
NUT-HF Price: $0.39 |
| 5 |
539108619 |
BUSHING Price: $2.99 |
| 6 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 6 |
539133047 |
CALIPER Price: $69.99 |
| 7 |
3217-6 |
NUT-HEX Price: $1.19 |
| 7 |
539113945 |
HUB Price: $159.99 |
| 8 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 8 |
539113948 |
PLATE, BRAKE Price: $17.99 |
| 9 |
539113951 |
SB 3/8-16 X 2-1-1/2 SKT HDD ZD Price: $5.99 |
| 10 |
24-6390 |
STUD-HOLDDOWN, BATTERY Price: $19.83 |
| 10 |
539113954 |
LINKAGE, BRAKE Price: $7.99 |
| 11 |
32103-2 |
NUT-WING Price: $0.68 |
| 11 |
596029901 |
Hardware This part replaces 539108732. Price: $2.99 |
| 12 |
28-1280 |
DISCONTINUED Price: Call Us |
| 12 |
539113950 |
BRACKET, L Price: $12.99 |
| 13 |
594891901 |
Springs This part replaces 539113952. Price: $1.99 |
| 13 |
70-1180 |
DISCONTINUED Price: Call Us |
| 14 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 14 |
539113955 |
LINKAGE, REAR BRAKE Price: $8.99 |
| 15 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 15 |
539990289 |
NUT 3/8F CENTERLOCK Price: $2.99 |
| 16 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 16 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 17 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 17 |
539990037 |
COTTER PIN 3/32 X 3/4 Price: $2.99 |
| 18 |
27-7290 |
DECAL-PTO Price: $17.38 |
| 18 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 19 |
38-4550-03 |
COVER-INSTRUMENTS This part replaces 38-4550. Price: $448.71 |
| 19 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 20 |
539101151 |
RETAINING RING, 7/8" Price: $1.99 |
| 20 |
92-7802 |
DECAL-INSTR., START This part replaces 43-4290. Price: $22.12 |
| 21 |
539114803 |
BRACKET, BRAKE SWITCH Price: $29.99 |
| 21 |
92-7800 |
BATTERY COVER ASM This part replaces 24-9740. Price: $65.49 |
| 22 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 22 |
539923787 |
BSHG .875 X 1.375 X .074 ZD Price: $2.99 |
| 23 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 23 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 24 |
24-6420-03 |
HOLDDOWN-BATTERY This part replaces 24-6420. Price: $55.90 |
| 24 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 25 |
2412-61 |
TINNERMAN CLIP Price: $4.93 |
| 25 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 26 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 26 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 27 |
2412-4 |
CLAMP-R Price: $4.22 |
| 28 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 29 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 30 |
67-1710 |
DECAL-WARNING Price: $7.83 |
| 31 |
49-2280 |
DECAL Price: $22.38 |
| 32 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 33 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 34 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 35 |
2412-74 |
R-CLAMP Price: $2.37 |
| 36 |
93-3183 |
TOOL BOX ASM This part replaces 38-4530. Price: $240.67 |
| 37 |
32128-20 |
NUT-HF Price: $0.99 |
| 38 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 39 |
32128-33 |
NUT-HF Price: $0.25 |
| 40 |
82-9970 |
DISCONTINUED Price: Call Us |
| 41 |
72-3690 |
DISCONTINUED Price: Call Us |
| 42 |
93-7830 |
DECAL-TORQUE This part replaces 67-1720. Price: $23.91 |
| 43 |
68-8610-01 |
EXTENSION-FENDER This part replaces 68-8610. Price: $186.20 |
| 44 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 45 |
12-3270 |
SCREW Price: $3.09 |
| 46 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 47 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 48 |
88-0070-01 |
PLATE-FLOOR This part replaces 77-3210. Price: $169.68 |
| 49 |
75-0810 |
CAUTION DECAL Price: $15.36 |
