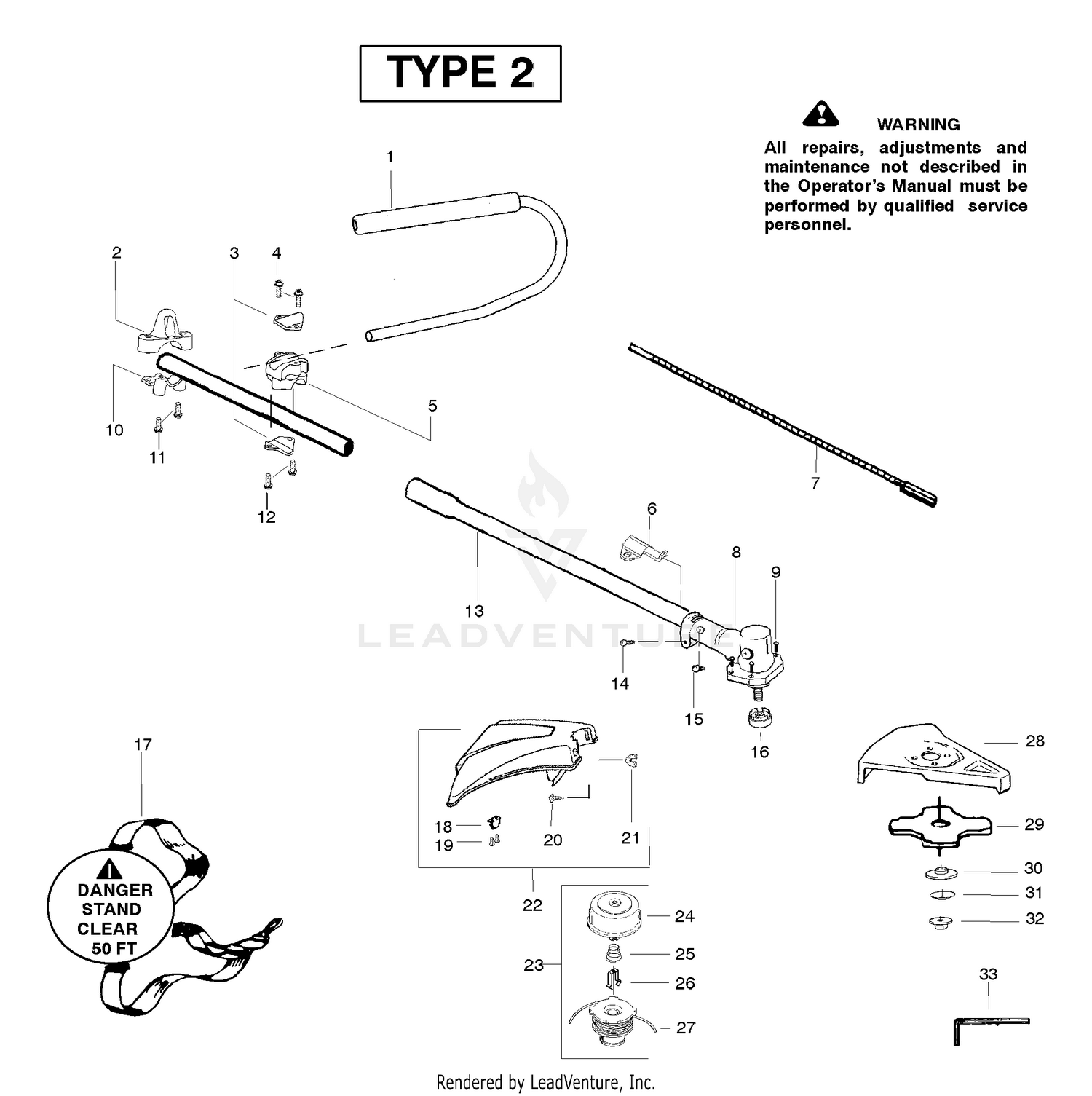

| Ref | Part Number | Description |
|---|
| 1 |
237-90 |
DISCONTINUED Price: Call Us |
| 2 |
530071605 |
KIT HARNESS CLAMP This part replaces 530055392. Price: $2.99 |
| 2 |
99-5651 |
WHEEL BOLT & NUT This part replaces 3-2652. Price: $1.15 |
| 3 |
20-7370 |
DISCONTINUED Price: Call Us |
| 3 |
530058563 |
Clamp-Bracket Price: $2.99 |
| 4 |
21-9110 |
DISCONTINUED Price: Call Us |
| 4 |
530015886 |
Screw Price: $1.99 |
| 5 |
32151-44 |
RING-RETAINING Price: $2.99 |
| 5 |
530058765 |
Clamp-Handlebar (1") Price: $2.99 |
| 5 |
530058766 |
Clamp-Handlebar (7/8") Price: $2.99 |
| 6 |
530095812 |
Bracket-Shield Price: $1.99 |
| 7 |
530096183 |
Flexshaft-Split boom Price: $2.99 |
| 8 |
20-7390 |
SPACER Price: $22.15 |
| 8 |
530071585 |
Assy-Gearbox Price: $54.99 |
| 9 |
20-7380-01 |
BLADE-SPIKE, PROFILED This part replaces 20-7380. Price: $36.82 |
| 9 |
530016312 |
Screw Price: $1.99 |
| 10 |
20-7400 |
SPACER-END Price: $11.87 |
| 10 |
530071605 |
KIT HARNESS CLAMP This part replaces 530055395. Price: $2.99 |
| 11 |
20-7790 |
WASHER Price: $15.82 |
| 11 |
530016406 |
Screw Price: $1.99 |
| 12 |
3218-17 |
NUT-JAM Price: $22.60 |
| 12 |
530015886 |
Screw Price: $1.99 |
| 13 |
251-256 |
DISCONTINUED Price: Call Us |
| 13 |
530071861 |
Assy.-Driveshaft Price: $17.99 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 14 |
530016014 |
Screw Price: $1.99 |
| 15 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 15 |
530016224 |
Screw-Alignment Price: $1.99 |
| 16 |
20-7720 |
DISCONTINUED Price: Call Us |
| 16 |
530095815 |
Dust cup - Blade Price: $6.99 |
| 17 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 17 |
530094417 |
Shoulder Strap This part replaces 530094408. Price: $20.65 |
| 18 |
52-3170 |
FULL FRONT ROLLER ASM This part replaces 23-5110. Price: $235.84 |
| 18 |
530052285 |
Limiter-Line Price: $1.99 |
| 19 |
323-15 |
SCREW-HH Price: $1.53 |
| 19 |
530015805 |
Screw Price: $1.99 |
| 20 |
323-11 |
SCREW-HH Price: $1.08 |
| 20 |
530015820 |
Bolt Price: $1.99 |
| 21 |
20-7530 |
DISCONTINUED Price: Call Us |
| 21 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 22 |
322-3 |
SCREW-HH Price: $0.79 |
| 23 |
20-7540 |
DISCONTINUED Price: Call Us |
| 24 |
324-6 |
SCREW-HH Price: $0.81 |
| 24 |
530095772 |
Assy-Hub Price: $5.42 |
| 25 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 25 |
530053241 |
Spring Price: $1.99 |
| 26 |
530401957 |
Retainer Price: $1.99 |
| 26 |
94-2958 |
STUD/BALL This part replaces 2411-7. Price: $6.70 |
| 27 |
321-4 |
SCREW-HH Price: $0.99 |
| 27 |
952711551 |
Accy--Spool w/Line This part replaces 952711580. Price: $8.95 |
| 28 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 28 |
530071383 |
Kit-Blade Shield Price: $9.99 |
| 29 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 29 |
952711584 |
Accy.-Weed Blade (8") Price: $12.81 |
| 30 |
3217-5 |
NUT-HEX Price: $0.25 |
| 30 |
530095816 |
Washer-Blade Retaining Price: $6.99 |
| 31 |
20-7570-01 |
DISCONTINUED This part replaces 20-7570. Price: Call Us |
| 31 |
530016240 |
Washer-Belleville Price: $1.99 |
| 32 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 32 |
530015793 |
Nut-Flange Price: $1.99 |
| 33 |
3255-16 |
WASHER-LOCK/EXT Price: $0.61 |
| 33 |
530031159 |
Wrench-Hex (5/32") Price: $1.99 |
| 34 |
52-3170 |
FULL FRONT ROLLER ASM This part replaces 21-6440. Price: $235.84 |
| 35 |
3217-8 |
NUT-HEX Price: $1.34 |
| 36 |
20-7520 |
DISCONTINUED Price: Call Us |
| 37 |
20-7510 |
DISCONTINUED Price: Call Us |
| 38 |
20-7420 |
DISCONTINUED Price: Call Us |
| 39 |
281-1 |
PLUG-PIPE, SQH Price: $4.56 |
| 40 |
21-6410 |
BEARING-ROLLER, FRONT Price: $29.82 |
