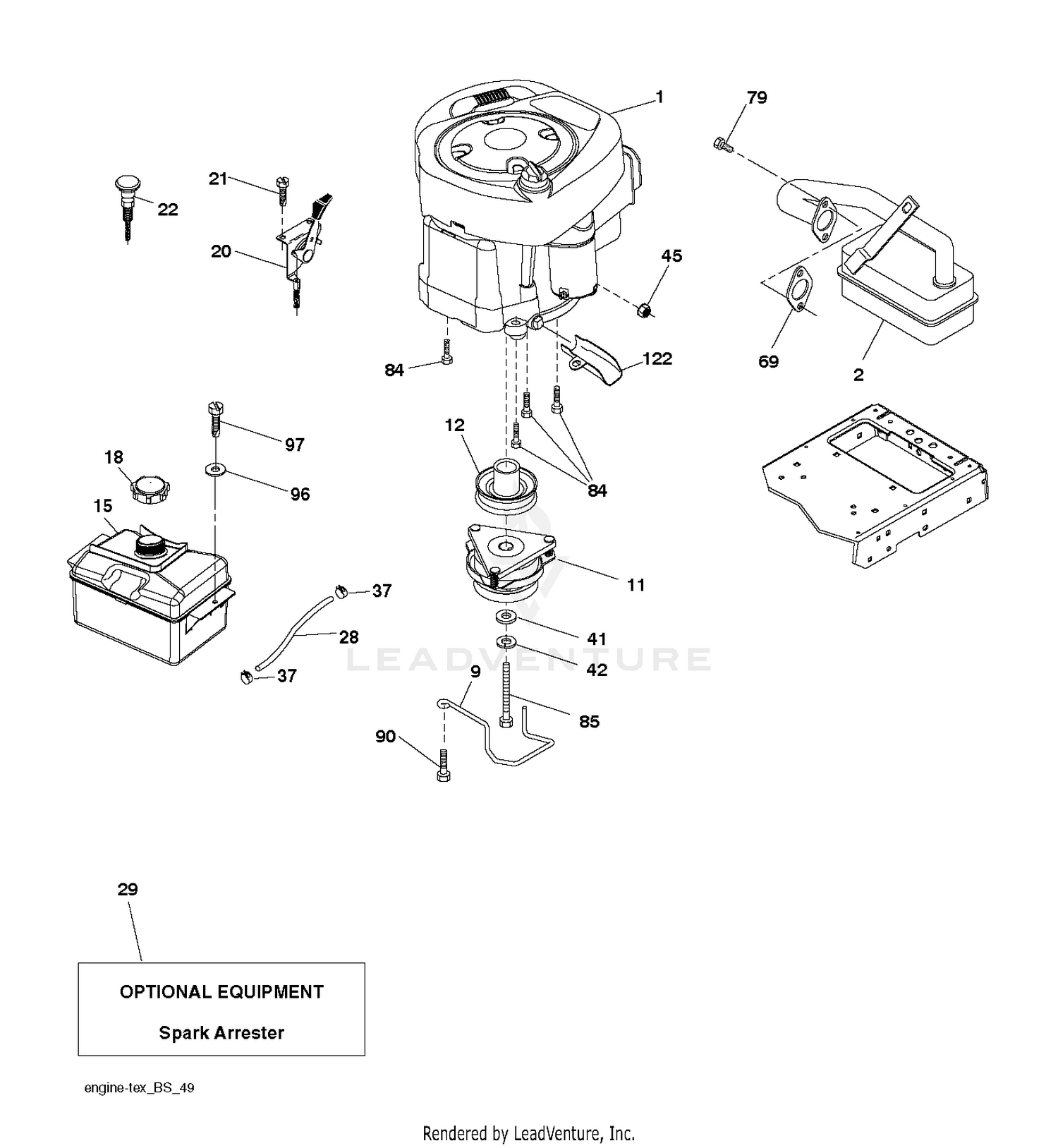

| Ref | Part Number | Description |
|---|
| 1 |
94-3002 |
SCREW-CAP This part replaces 100-2550. Price: $7.19 |
| 2 |
100-2551 |
BACKPLATE Price: $842.23 |
| 2 |
532137352 |
MUFFLER Price: $31.99 |
| 3 |
76-6980 |
O-RING Price: $11.28 |
| 5 |
76-6970 |
INSERT-PLATE, CAM Price: $140.84 |
| 6 |
100-2552 |
HOUSING Price: $943.35 |
| 8 |
76-7000 |
RING-RETAINING Price: $7.46 |
| 9 |
532194320 |
KEEPER.BELT.ENGINE.4.2 Price: $8.99 |
| 9 |
76-6950 |
RACE-THRUST Price: $25.65 |
| 10 |
76-6960 |
BEARING-THRUST Price: $23.23 |
| 11 |
105-3331 |
SEAL-SHAFT This part replaces 100-2553. Price: $35.63 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELE.LT48 This part replaces 532400008. Price: $265.99 |
| 12 |
100-2554 |
SHAFT-DRIVE Price: $706.66 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $60.99 |
| 13 |
76-7010 |
RING-RETAINING Price: $3.66 |
| 15 |
581289901 |
FUEL.TANK.ASM.1.5.GAL.NON-EPA This part replaces 532407545. Price: $54.99 |
| 18 |
581075501 |
CAP.FUEL.TANK.SS/SNO.EPA.DOME This part replaces 532430220. Price: $14.99 |
| 20 |
532411724 |
Price: $29.99 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS THREAD Price: $2.99 |
| 22 |
532411725 |
Price: $11.99 |
| 28 |
532137040 |
LINE.FUEL.20 Price: $3.99 |
| 29 |
532137180 |
ARRESTER SPARK (OPTIONAL) Price: $128.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $4.99 |
| 42 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 69 |
532272293 |
Gasket Eng 1 313 Id Tin Plated This part replaces 532165291. Price: $7.99 |
| 79 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
532150280 |
SUB= 150280 This part replaces 532173937. Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 96 |
819091416 |
WASHER Price: $3.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
