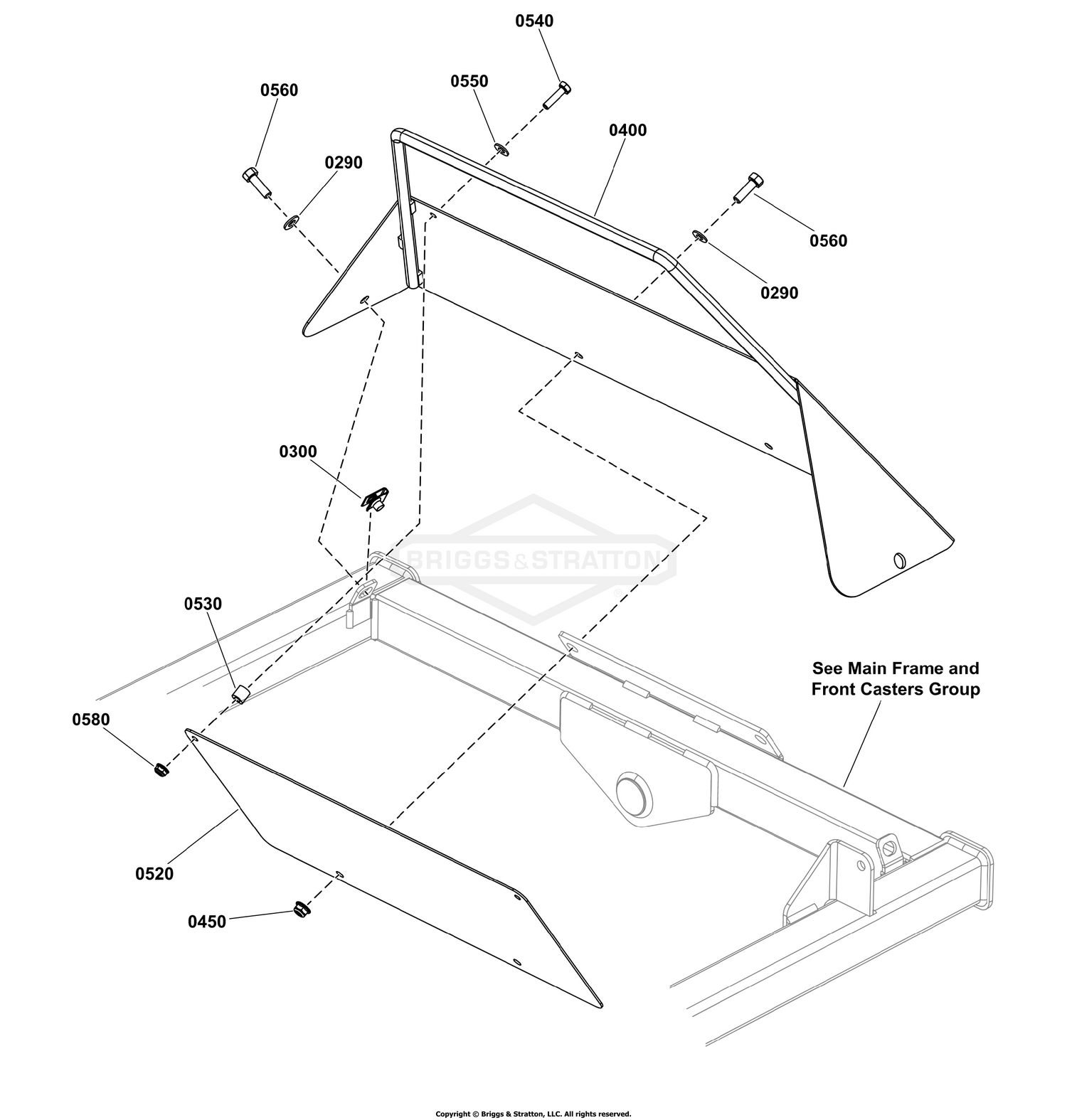

Main Frame & Front Casters Group - Muffler Heat Shields - S/N 4002516643 and Below
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 0290 | 703350 | WASHER Price: $3.72 |
| 0300 | 5022308SM | BODY CLIP, 5/16-18 X Price: $5.00 |
| 0400 | 84008425 | GUARD, FRONT Price: $125.07 |
| 0450 | 703115 | NUT Price: $3.06 |
| 0520 | 84011171 | SHIELD, Heat Price: $19.76 |
| 0530 | 5106902FS | SPACER Price: $6.71 |
| 0540 | 5025010X8SM | BOLT, 1/4-20 X 1", GD Price: $3.29 |
| 0550 | 703332 | WASHER Price: $3.72 |
| 0560 | 5025011X8FS | BOLT Price: $3.26 |
