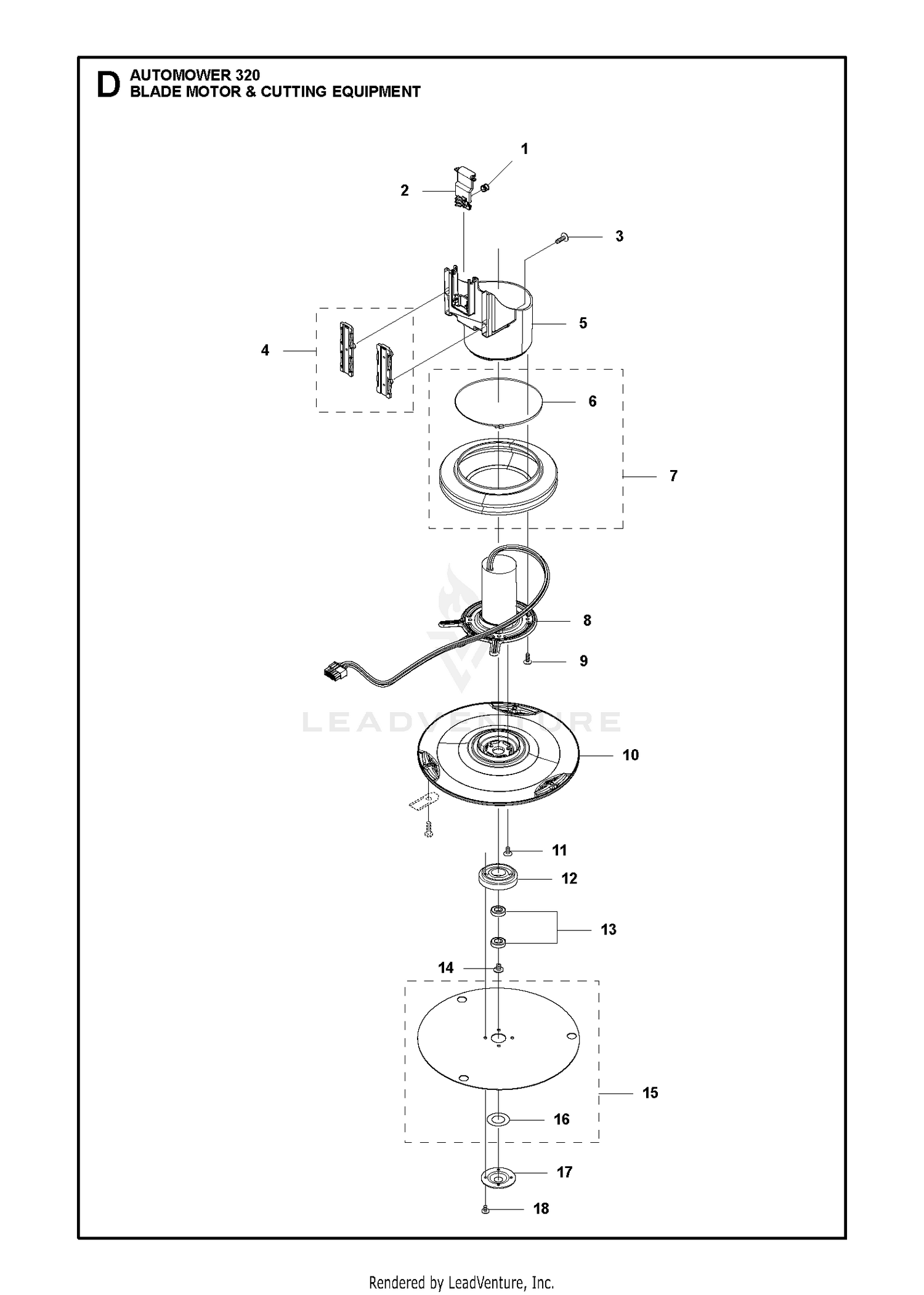

BLADE MOTOR & CUTTING EQUIPMENT
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 580624401 | SPRING LINK Price: $3.99 |
| 2 | 579564601 | LINK MOTOR HOUSING Price: $4.99 |
| 3 | 575543314 | SCREW 14MM Price: $3.99 |
| 4 | 581621801 | BEARING KIT Price: $6.99 |
| 6 | 580754101 | Price: Call Us |
| 7 | 581622101 | Price: Call Us |
| 8 | 585350301 | MOTOR ASSY CUTTING MOTOR Price: $149.99 |
| 9 | 575543314 | SCREW 14MM Price: $3.99 |
| 10 | 115-3443 | CRANKCASE ASM Price: $1,731.92 |
| 10 | 580793002 | NEEDS DESCRIPTION Price: Call Us |
| 11 | 535130502 | SCREW TORX M4X8 8.8 NYLON PATC This part replaces 535130501. Price: $2.99 |
| 12 | 535126401 | BEARING Price: $7.99 |
| 13 | 535075703 | BALL BEARING 2 RS,TIGHT CLEAR Price: $5.99 |
| 14 | 535076001 | SCREW Price: $3.99 |
| 15 | 581621902 | NEEDS DESCRIPTION Price: Call Us |
| 16 | 535082501 | GASKET Price: $2.99 |
| 17 | 535081501 | COVER SKID PLATE Price: $5.99 |
| 18 | 575543310 | SCREW SILVER 10MM Price: $2.99 |
| 20 | 98-9398 | CAP-SEALING Price: $6.08 |
| 30 | 98-7539 | CAP-SEALING Price: $6.44 |
| 40 | 98-9687 | PLUG Price: $2.86 |
| 50 | 105-3779 | PLUG Price: $8.05 |
| 60 | 98-9597 | PLUG Price: $17.66 |
| 70 | 98-7487 | PLUG Price: $3.18 |
| 80 | 98-9379 | PLUG-EXPANSION Price: $0.76 |
| 90 | 98-9668 | PLUG-EXPANSION Price: $2.17 |
| 100 | 98-9375 | PIN-STRAIGHT Price: $0.41 |
| 110 | 98-9377 | PIN-STRAIGHT Price: $1.00 |
| 120 | 98-9376 | PIN-STRAIGHT Price: $0.41 |
| 130 | 98-9387 | PIN-PIPE Price: $2.92 |
| 140 | 98-9539 | PIN-PIPE Price: $1.15 |
| 150 | 98-9599 | PLUG Price: $6.08 |
| 160 | 98-9630 | PIN-SPRING, START Price: $1.47 |
| 170 | 98-9675 | PLUG Price: $8.54 |
| 180 | 98-9656 | BUSHING-GOVERNOR, GEAR Price: $29.04 |
| 190 | 120-2559 | PLUG Price: $1.19 |
| 200 | 98-7428 | GASKET Price: $0.68 |
| 210 | 99-3447 | PLUG Price: $3.11 |
| 220 | 106-7056 | GASKET Price: $1.48 |
