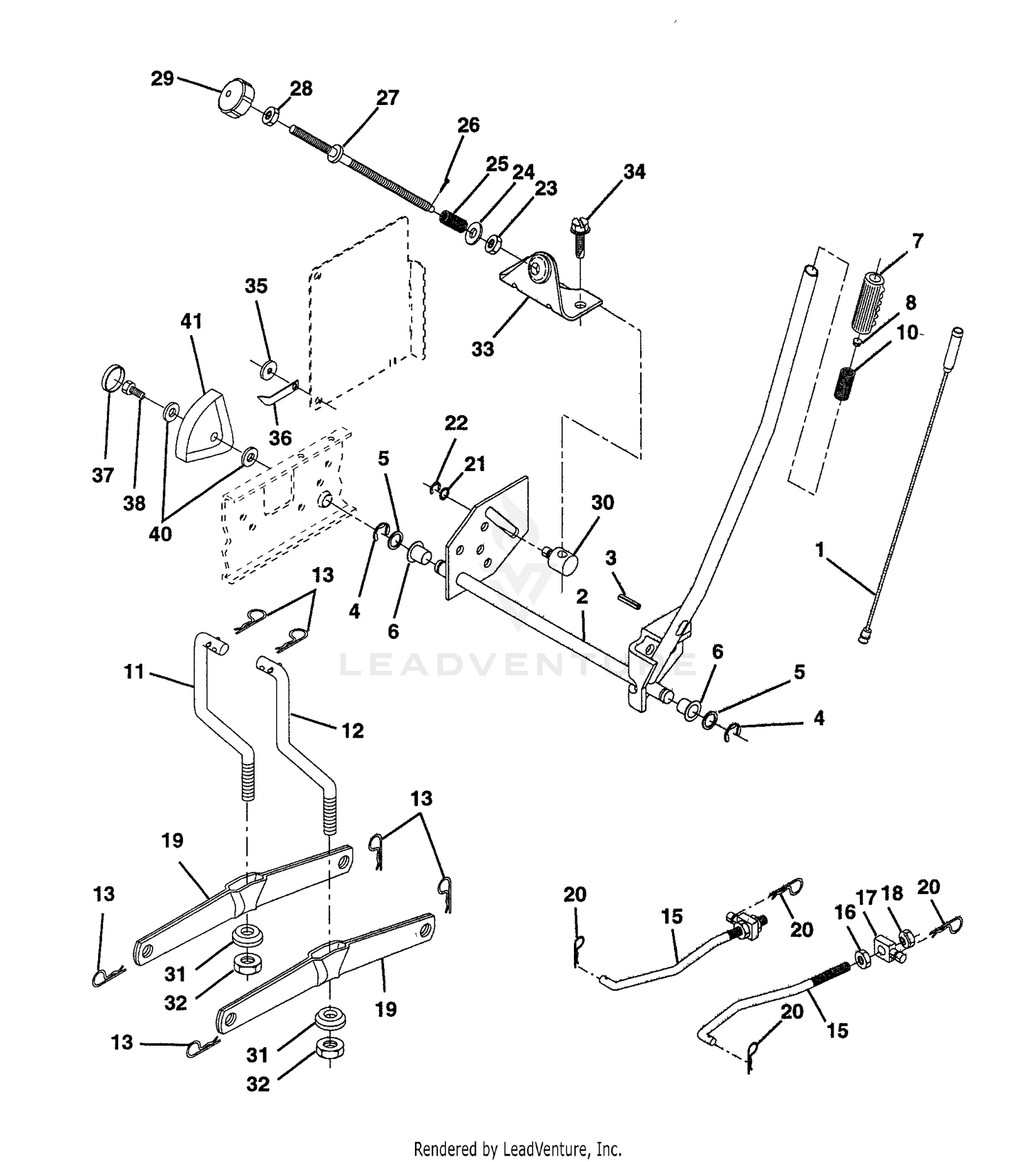

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 1 |
532136973 |
WIRE.INNER.HANDLE.LIFT.LEVER Price: $12.99 |
| 2 |
323-6 |
SCREW-HH Price: $0.66 |
| 2 |
532145117 |
SHAFT ARM LIFT RH Price: $74.99 |
| 3 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 3 |
532105767 |
PIN GROOVE. Price: $4.99 |
| 4 |
61-3810 |
PLATE-REAR, 5 BLADE Price: $12.60 |
| 4 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 5 |
61-0790 |
SCREW-HH Price: $2.57 |
| 5 |
819211621 |
WASHER Price: $4.99 |
| 6 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 6 |
61-0420-01 |
SUPPORT-HOC This part replaces 61-0420. Price: $31.94 |
| 7 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 8 |
71-3690 |
SPADE-BENT Price: $16.90 |
| 9 |
3290-55 |
RIVET-POP Price: $0.25 |
| 10 |
532122512 |
SPRING, COMP T Price: $7.99 |
| 10 |
61-0910 |
BRACKET-ANGLE Price: $12.36 |
| 11 |
532145537 |
LIFT LINK LH This part replaces 532139865. Price: $22.99 |
| 11 |
61-0380-01 |
CAP-END,ROLLER This part replaces 61-0380. Price: $64.74 |
| 12 |
105-0156 |
SHAFT-ROLLER This part replaces 61-0400. Price: $88.81 |
| 12 |
532145536 |
LIFT LINK RH This part replaces 532139866. Price: $22.99 |
| 13 |
253-152 |
SEAL-OIL Price: $4.54 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 14 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 |
532127218 |
FRONT LINK Price: $14.99 |
| 16 |
14-4479 |
REAR HOC BRACKET AND BUSHING ASM This part replaces 61-0430. Price: $79.03 |
| 16 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 17 |
532175689 |
TRUNNION This part replaces 532130171. Price: $3.99 |
| 17 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 18 |
56-9510 |
BUSHING ASM Price: $12.89 |
| 18 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 19 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 20 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $2.99 |
| 20 |
71-3590 |
NUT-ADJUSTMENT Price: $19.21 |
| 21 |
105-0150 |
SEAL-GREASE This part replaces 253-153. Price: $4.88 |
| 21 |
819151216 |
Washer 15/32 X 3/4 X 16 Ga Price: $2.45 |
| 22 |
254-78 |
BEARING-CONE Price: $12.22 |
| 22 |
812000037 |
Ring Klip #t5304-37 Price: $4.99 |
| 23 |
03446 |
Kit-Front Skid (Incl. 3 Assemblies) Price: Call Us |
| 23 |
532110807 |
NUT T Price: $3.99 |
| 24 |
819131016 |
WASHER Price: $2.99 |
| 25 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 26 |
596917601 |
Pins This part replaces 876020308. Price: $1.99 |
| 27 |
532126971 |
ROD ADJ LIFT Price: $5.99 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 29 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 30 |
532110810 |
TRUNION LT Price: $17.99 |
| 31 |
532169865 |
BEARING.PIVOT.LIFT This part replaces 532140302. Price: $5.99 |
| 32 |
873810600 |
LOCK NUT Price: $3.99 |
| 33 |
532140168 |
BRACKET Price: $2.90 |
| 34 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 35 |
532120529 |
WASHER T Price: $2.99 |
| 36 |
532123933 |
HEIGHT INDICATOR PNTR This part replaces 532138346. Price: $3.99 |
| 37 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 38 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 40 |
819112410 |
WASHER Price: $3.99 |
