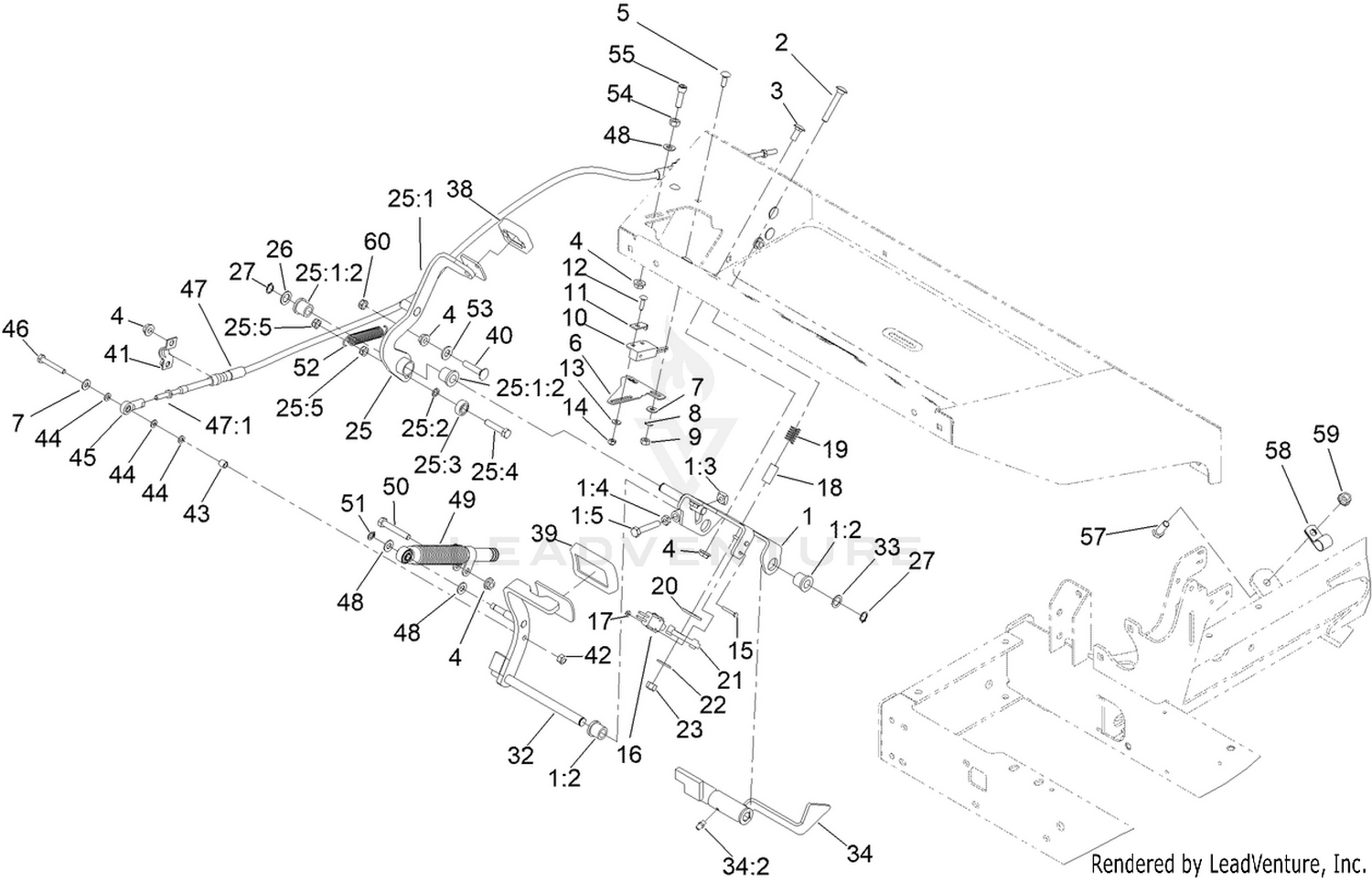

| Ref | Part Number | Description |
|---|
| 1 |
140-6253 |
TRACTION BRACKET ASM Price: $58.24 |
| 2 |
3230-6 |
BOLT-CARR Price: $0.59 |
| 3 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 4 |
32128-20 |
NUT-HF Price: $0.99 |
| 5 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 6 |
100-4871 |
BRACKET-SWITCH, NEUTRAL Price: $17.90 |
| 7 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 8 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 9 |
3217-5 |
NUT-HEX Price: $0.25 |
| 10 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 11 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 12 |
3229-20 |
SCREW-CARR Price: $0.80 |
| 13 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 14 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 15 |
32105-9 |
SCREW Price: $0.54 |
| 16 |
95-8900 |
SWITCH Price: $95.42 |
| 17 |
3296-9 |
NUT-HEX Price: $0.25 |
| 18 |
95-8866 |
TUBE-ARM, ROCKER Price: $11.97 |
| 19 |
65-9940 |
SPRING Price: $4.01 |
| 20 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 21 |
99-3593 |
ARM-ROCKER Price: $9.29 |
| 22 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 23 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 25 |
140-6251 |
REVERSE PEDAL ASM Price: $100.06 |
| 26 |
41-8440 |
WASHER Price: $1.49 |
| 27 |
32151-84 |
RING-SHAFT, EXT Price: $1.89 |
| 32 |
140-6263 |
TRACTION PEDAL ASM Price: $133.16 |
| 33 |
73-0040 |
WASHER-THRUST Price: $1.29 |
| 34 |
140-6255 |
DETENT SLIDER ASM Price: $161.79 |
| 38 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 39 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 40 |
3230-27 |
SCREW-CARR Price: $0.75 |
| 41 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 42 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 43 |
99-3545 |
SPACER Price: $6.45 |
| 44 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 45 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 46 |
321-10 |
SCREW-HH Price: $1.29 |
| 47 |
100-4815 |
CABLE-CONTROL, TRACTION Price: $140.70 |
| 48 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 49 |
140-6248 |
DAMPER Price: $159.54 |
| 50 |
322-10 |
SCREW-HH Price: $0.70 |
| 51 |
32151-3 |
RING-GRIP Price: $6.49 |
| 52 |
99-3476 |
SPRING-EXTENSION Price: $7.11 |
| 53 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 54 |
3217-6 |
NUT-HEX Price: $1.19 |
| 55 |
3274-22 |
SCREW-HSH Price: $0.68 |
| 57 |
323-6 |
SCREW-HH Price: $0.66 |
| 58 |
2412-41 |
CLAMP-R Price: $4.82 |
| 59 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
