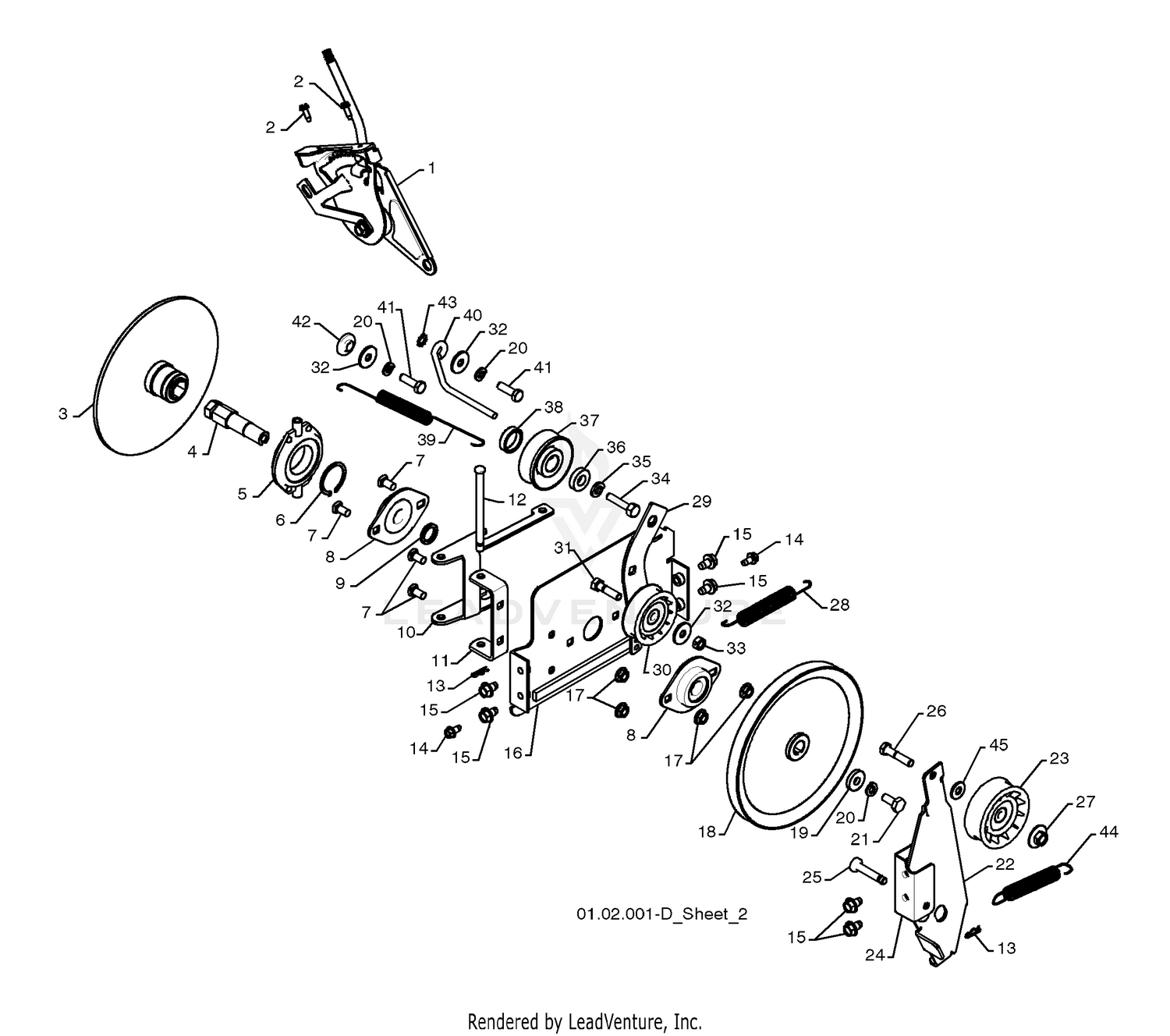

| Ref | Part Number | Description |
|---|
| 1 |
121-4698 |
NUT-KEPS This part replaces 32149-5. Price: $1.15 |
| 1 |
532429667 |
KIT.CONTROL.SPEED.SELECTOR.SNO This part replaces 532198474. Price: $74.99 |
| 2 |
817501010 |
SCREW #10-24 X 5/8 Price: $4.99 |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 3 |
532197763 |
DRIVE PLATE WELDMENT Price: $54.99 |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 4 |
532197764 |
SHAFT.HEX.SHORT Price: $11.99 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 5 |
597412801 |
BEARING HOUSING ASSY TRUNNION This part replaces 532175344. Price: $29.99 |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 6 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 7 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 8 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 9 |
532182504 |
SPACER, BEARING Price: $5.99 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 10 |
532184077 |
LEVER.SHIFTER.PLATE.BLACK Price: $9.99 |
| 11 |
532175349 |
BRACKET, SHIFTER SUPPORT This part replaces 532184076. Price: $4.99 |
| 12 |
532178695 |
PIN, PIVOT LEVER Price: $4.99 |
| 13 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 13 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 14 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 15 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 16 |
532184075 |
PLATE.DRIVE.MOUNTING.BLACK Price: $14.99 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 17 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 18 |
532191080 |
PULLEY.TRACTION.7.75 Price: $49.99 |
| 19 |
3210-8 |
SCREW-HH Price: $1.02 |
| 19 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 20 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 20 |
71-4350 |
NUT Price: $3.46 |
| 21 |
83-5130 |
SPACER-PINION Price: $87.56 |
| 21 |
874950512 |
SCREW 5/16-18 X .750 Price: $3.99 |
| 22 |
532422111 |
ARM.IDLER.BRAKE.BLACK This part replaces 532419925. Price: $12.99 |
| 22 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 22 |
72-3573 |
SHIM-BEARING, FRONT (.100) Price: $24.63 |
| 22 |
72-3574 |
SHIM-BEARING, FRONT (.102) Price: $23.68 |
| 22 |
72-3575 |
SHIM-BEARING, FRONT (.104) Price: $22.53 |
| 22 |
72-3576 |
SHIM-BEARING, FRONT (.106) Price: $23.68 |
| 22 |
72-3577 |
SHIM-BEARING, FRONT (.108) Price: $22.53 |
| 22 |
72-3578 |
SHIM-BEARING, FRONT (.110) Price: $22.53 |
| 22 |
72-3580 |
SHIM-BEARING, FRONT (.112) Price: $22.53 |
| 22 |
72-3581 |
SHIM-BEARING, FRONT (.114) Price: $22.53 |
| 22 |
72-3582 |
SHIM-BEARING, FRONT (.116) Price: $22.53 |
| 22 |
72-3583 |
SHIM-BEARING, FRONT (.118) Price: $56.93 |
| 22 |
72-3584 |
SHIM-BEARING, FRONT (.120) Price: $24.63 |
| 22 |
72-3585 |
SHIM-BEARING, FRONT (.125) Price: $22.53 |
| 22 |
72-3586 |
SHIM-BEARING, FRONT (.127) Price: $22.53 |
| 22 |
72-3587 |
SHIM-BEARING, FRONT (.129) Price: $23.68 |
| 22 |
72-3588 |
SHIM-BEARING, FRONT (.131) Price: $22.53 |
| 22 |
72-3590 |
SHIM-BEARING, FRONT (.133) Price: $22.53 |
| 22 |
72-3591 |
SHIM-BEARING, FRONT (.135) Price: $21.44 |
| 22 |
72-3592 |
SHIM-BEARING, FRONT (.137) Price: $22.53 |
| 22 |
72-3593 |
SHIM-BEARING, FRONT (.139) Price: $23.68 |
| 22 |
72-3594 |
SHIM-BEARING, FRONT (.141) Price: $23.68 |
| 22 |
72-3595 |
SHIM-BEARING, FRONT (.143) Price: $22.53 |
| 22 |
72-3596 |
SHIM-BEARING, FRONT (.145) Price: $22.53 |
| 22 |
72-3597 |
SHIM-BEARING, FRONT (.147) Price: $22.53 |
| 22 |
72-3598 |
SHIM-BEARING, FRONT (.149) Price: $24.63 |
| 22 |
72-3600 |
SHIM-BEARING, FRONT (.151) Price: $23.68 |
| 23 |
254-91 |
CONE-BEARING Price: $18.65 |
| 23 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 24 |
254-90 |
BEARING-CUP This part replaces 21-8390. Price: $11.29 |
| 24 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532184074. Price: $79.99 |
| 25 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 25 |
532175330 |
PIN, IDLER PIVOT Price: $4.99 |
| 26 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 26 |
93-3619 |
UPPER HOUSING ASM Price: $1,825.32 |
| 27 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 27 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532166785. Price: $4.99 |
| 28 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 28 |
532414557 |
SPRING.TRACTION.IDLER This part replaces 532181044. Price: $4.99 |
| 29 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532179354. Price: $27.99 |
| 29 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 30 |
32121-15 |
PIN-ROLL This part replaces 21-7710. Price: $1.60 |
| 30 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 31 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 31 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 32 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 32 |
532059289 |
STEEL WASHER Price: $3.99 |
| 33 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 33 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 34 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 34 |
75-0721 |
DISCONTINUED Price: Call Us |
| 35 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 35 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 36 |
532400026 |
WASHER, FLAT 3/8 Price: $7.99 |
| 37 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 37 |
595926601 |
PULLEY This part replaces 532180478. Price: $27.99 |
| 38 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 38 |
532409475 |
SPACER.ENGINE.PULLEY Price: $7.99 |
| 39 |
532179095 |
SPRING.RETURN Price: $3.99 |
| 39 |
72-9420 |
VENT Price: $6.85 |
| 40 |
532155452 |
BELT.GUIDE.RH Price: $4.99 |
| 40 |
83-4910 |
COUPLER-PINION Price: $223.04 |
| 41 |
71-4330 |
SEAL Price: $36.26 |
| 41 |
874610516 |
SCREW Price: $3.99 |
| 42 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 42 |
93-3618 |
GEAR AND PINION ASM Price: $1,107.66 |
| 43 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
| 44 |
532178828 |
SPRING, BRAKE Price: $4.99 |
