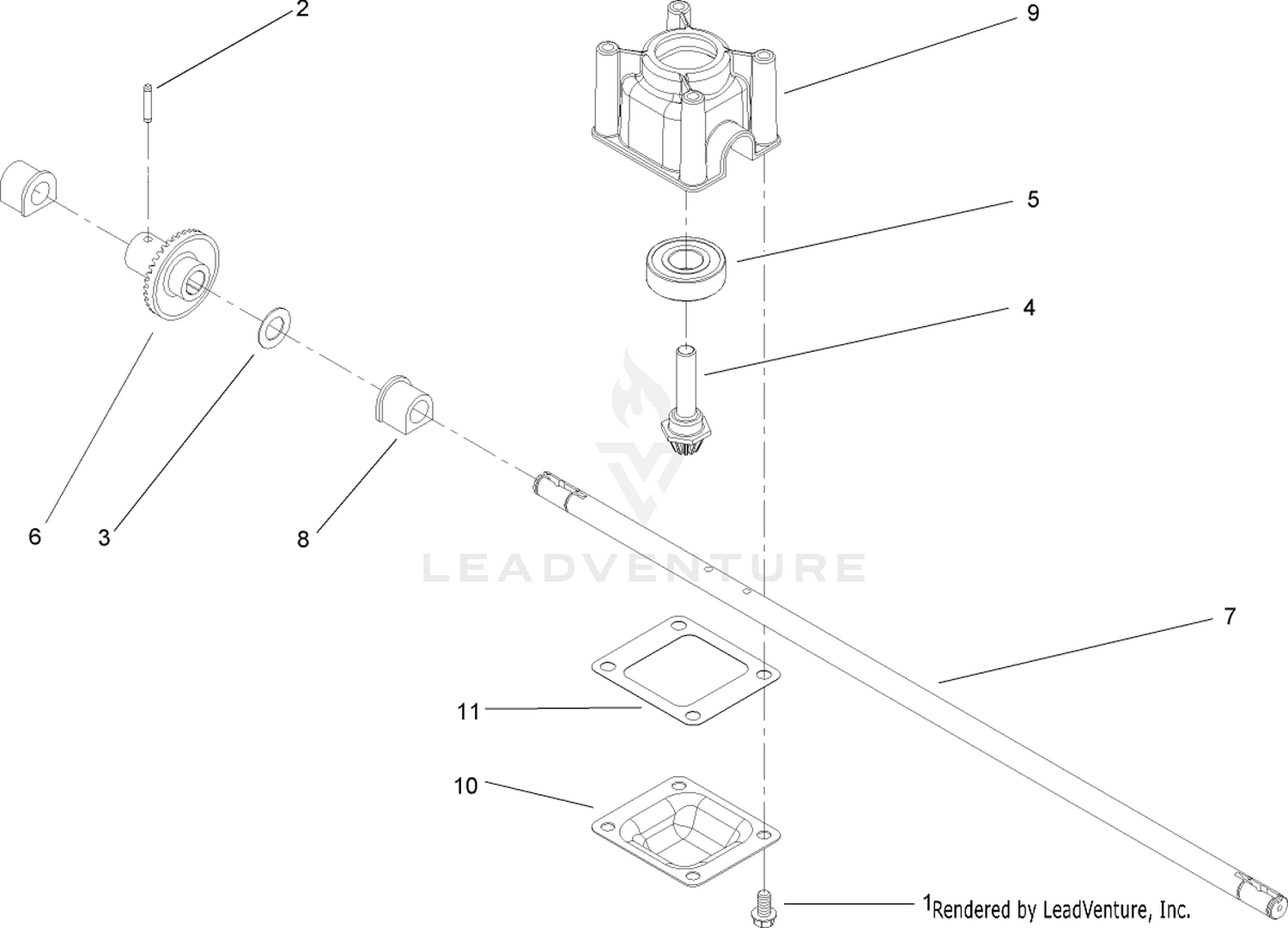

Transmission Assembly No. 106-3956
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 32144-4 | SCREW-HWH Price: $1.29 |
| 2 | 105-6817 | PIN-GROOVE Price: $1.99 |
| 3 | 36-4780 | WASHER-PLAIN Price: $6.59 |
| 4 | 92-5790 | PINION Price: $10.93 |
| 5 | 38-7820 | BEARING-BALL This part replaces 100-1048. Price: $13.99 |
| 6 | 104-8671 | GEAR-BEVEL, 37T Price: $29.54 |
| 7 | 106-3957 | SHAFT-OUTPUT Price: $53.29 |
| 8 | 104-8673 | BUSHING-SHAFT, OUTPUT Price: $3.42 |
| 9 | 104-8674 | GEARCASE-UPPER Price: $7.54 |
| 10 | 104-8675-03 | COVER-GEARCASE Price: $4.24 |
