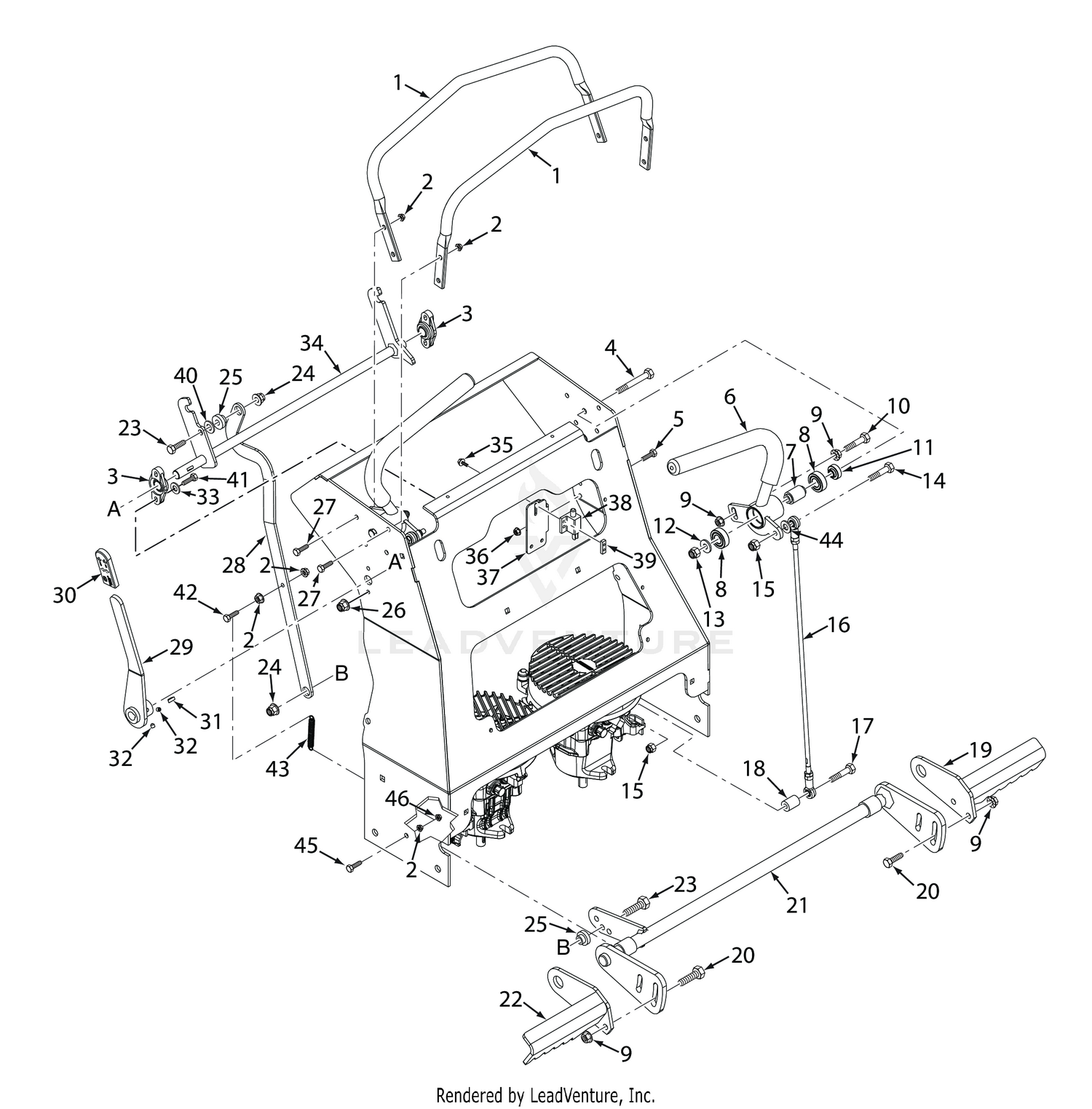

| Ref | Part Number | Description |
|---|
| 1 |
427189 |
Reference Bar Price: Call Us |
| 2 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 3 |
483504 |
Bearing Price: Call Us |
| 4 |
04001-62 |
Capscrew, Hex Head 3/8-16 x 3.25" Price: Call Us |
| 5 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 6 |
462912 |
Handlebar Assy., LH Price: Call Us |
| 7 |
43600 |
Spacer, Bearing Price: Call Us |
| 8 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 9 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 10 |
04001-45 |
Capscrew, Hex Head 3/8-16 x 2.0" Price: Call Us |
| 11 |
431024 |
Spacer, Controls Price: Call Us |
| 12 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 13 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 14 |
04001-10 |
Bolt, 5/16 - 18 x 1 - 1/4" Hex Head Price: Call Us |
| 15 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 16 |
485842 |
Linkage Assy., Steering Price: Call Us |
| 17 |
04001-17 |
Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI) Price: Call Us |
| 19 |
452842 |
Brake Paddle Weldment, RH Price: Call Us |
| 20 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 21 |
452829 |
Bellcrank Weldment, Brake Price: Call Us |
| 22 |
452841 |
BRAKE PADDLE WLMT, LH Price: Call Us |
| 23 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 24 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 25 |
48100-30 |
BUSHING, BRONZE - .376 ID X .627 OD Price: Call Us |
| 26 |
04117-03 |
Nut, Flanged Elastic Stop 1/4-20 Price: Call Us |
| 27 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 28 |
427547 |
Link, Brake Engage Price: Call Us |
| 29 |
463265 |
Lever Assembly, Brake, SVRII This part replaces 463020. Price: Call Us |
| 30 |
481548 |
Grip, Parking Brake Price: Call Us |
| 31 |
04063-12 |
KEY, WOODRUFF #61, 3/16 X 5/8 Price: Call Us |
| 32 |
04012-15 |
Set Screw 1/4-20 x 1/4" Price: Call Us |
| 33 |
04040-03 |
Flatwasher, 1/4 (.281 x .625 x .065) Price: Call Us |
| 34 |
452830 |
Lock Weldment, Neutral Price: Call Us |
| 35 |
04010-12 |
Screw, Hex-Slotted Washer Head #10 32 x 3/4" Price: Call Us |
| 36 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 37 |
427269 |
Bracket, Neutral Switch Price: Call Us |
| 38 |
481637 |
Switch, Interlock, Park Brake Normally Open Price: Call Us |
| 39 |
422373 |
Plate, Threaded Price: Call Us |
| 41 |
04001-14 |
Capscrew, Hex Head 1/4-20 x 1" Price: Call Us |
| 42 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 43 |
484038 |
Spring, Deck Lift Price: Call Us |
| 44 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V) Price: Call Us |
| 45 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 462913 |
Handllevar |
Assy., RH Price: Call Us 462913 |
