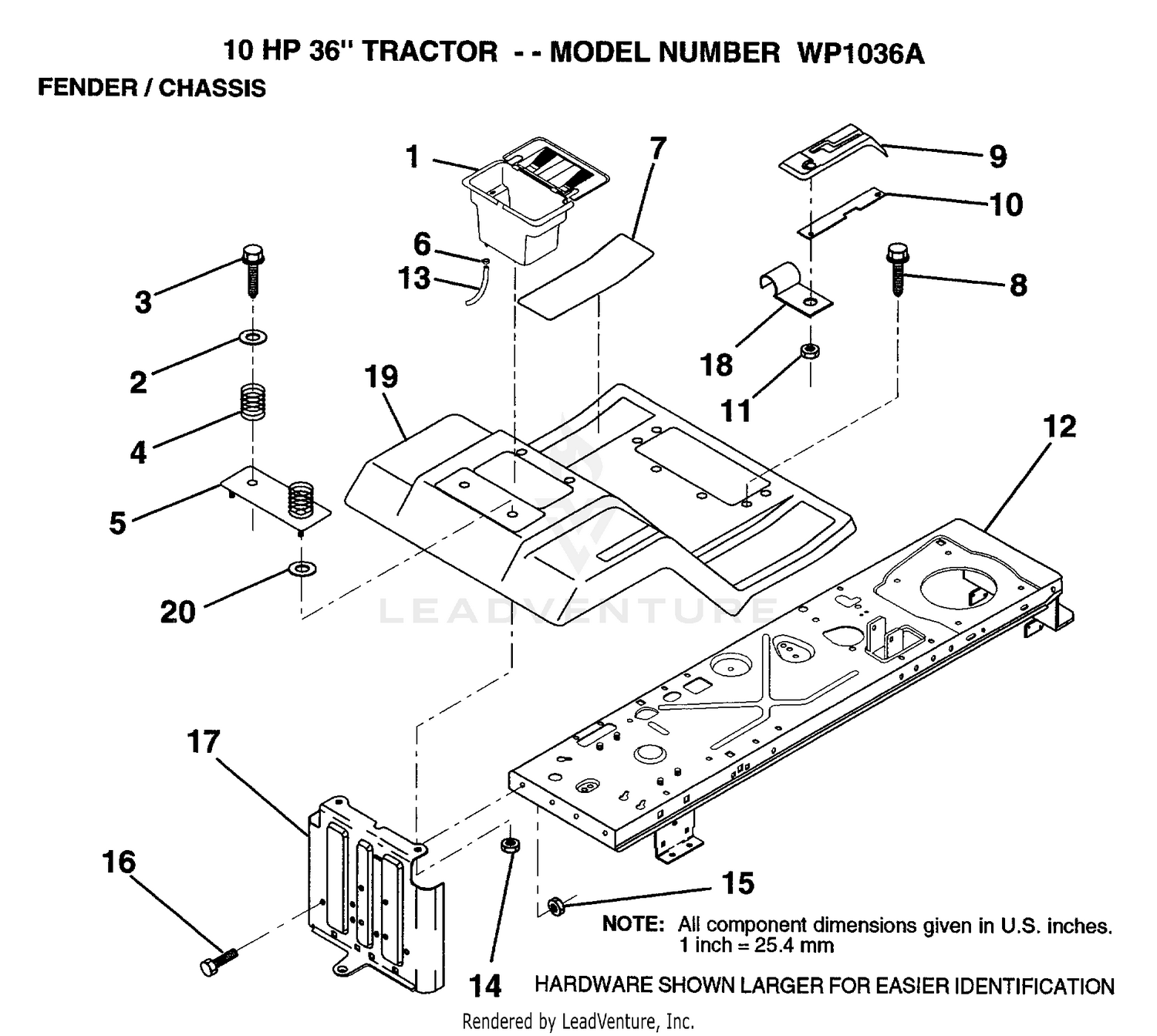

| Ref | Part Number | Description |
|---|
| 1 |
129965 |
SUB= 156417 Price: Call Us |
| 1 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 2 |
19132012 |
WASHER Price: Call Us |
| 2 |
69-8890 |
CAP-SPINDLE Price: $13.32 |
| 3 |
17490612 |
SCREW Price: Call Us |
| 3 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 4 |
124181X |
SPRING COMPRESSIO Price: Call Us |
| 4 |
256-304 |
WASHER-THRUST Price: $3.94 |
| 5 |
127115X505 |
BTRY FENDER PLATE Price: Call Us |
| 5 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 6 |
109596X |
HOSE CLAMP T Price: Call Us |
| 6 |
82-9850-03 |
AXLE-REAR Price: $1,614.33 |
| 7 |
124144X |
PAD FOOTREST Price: Call Us |
| 7 |
93-0311-03 |
SPINDLE-WHEEL, LH Price: $378.60 |
| 8 |
17490512 |
SCREW Price: Call Us |
| 9 |
117-8969 |
HUB ASM This part replaces 69-2960-03. Price: $336.24 |
| 9 |
126993X |
CONSOLE SHFT 4SP Price: Call Us |
| 10 |
124602X |
SUB= 139783 Price: Call Us |
| 10 |
93-0310-03 |
SPINDLE-WHEEL, RH Price: $584.69 |
| 11 |
106-6895-03 |
BALL JOINT ASM Price: $258.08 |
| 11 |
124346X |
NUT Price: Call Us |
| 12 |
133384 |
SUB= 139893 Price: Call Us |
| 12 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 13 |
105687X |
SUB= 109238X Price: Call Us |
| 13 |
23-7270 |
NUT-LUG Price: $10.37 |
| 14 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 14 |
73510400 |
NUT Price: Call Us |
| 15 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 15 |
73680500 |
SUB= 73690500 Price: Call Us |
| 16 |
74760512 |
BOLT Price: Call Us |
| 16 |
82-9210 |
SHAFT-PIVOT Price: $187.73 |
| 17 |
127880 |
DRAWBAR Price: Call Us |
| 17 |
3220-7 |
NUT-JAM Price: $4.09 |
| 18 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 19 |
128083X505 |
SUB= 140955X505 Price: Call Us |
| 19 |
60-3670 |
PIN Price: $12.56 |
| 20 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 21 |
58-6520 |
DECAL-GREASE Price: $2.57 |
| 22 |
115-8014 |
CYLINDER-HYDRAULIC This part replaces 77-4800. Price: $1,015.97 |
| 23 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 24 |
48-6660 |
WASHER Price: $5.22 |
| 25 |
48-6640 |
BEARING Price: $10.04 |
| 28 |
32136-13 |
NUT-SHH Price: $2.85 |
| 30 |
69-9870 |
WIDE WHEEL AND 6-PLY TIRE ASM Price: $513.71 |
| 32 |
110-9719-03 |
TIE ROD ASM This part replaces 82-9260-03. Price: $380.21 |
| 35 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 36 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 37 |
340-54 |
ELBOW-45 DEG Price: $40.72 |
| 38 |
69-2980 |
SEAL Price: $33.94 |
| 39 |
254-106 |
CONE-BEARING, TAPERED Price: $19.51 |
| 43 |
254-92 |
CONE-BEARING, OUTER Price: $15.84 |
| 44 |
69-2970 |
CAP-HUB Price: $20.74 |
| 45 |
3210-7 |
SCREW-HH Price: $0.61 |
