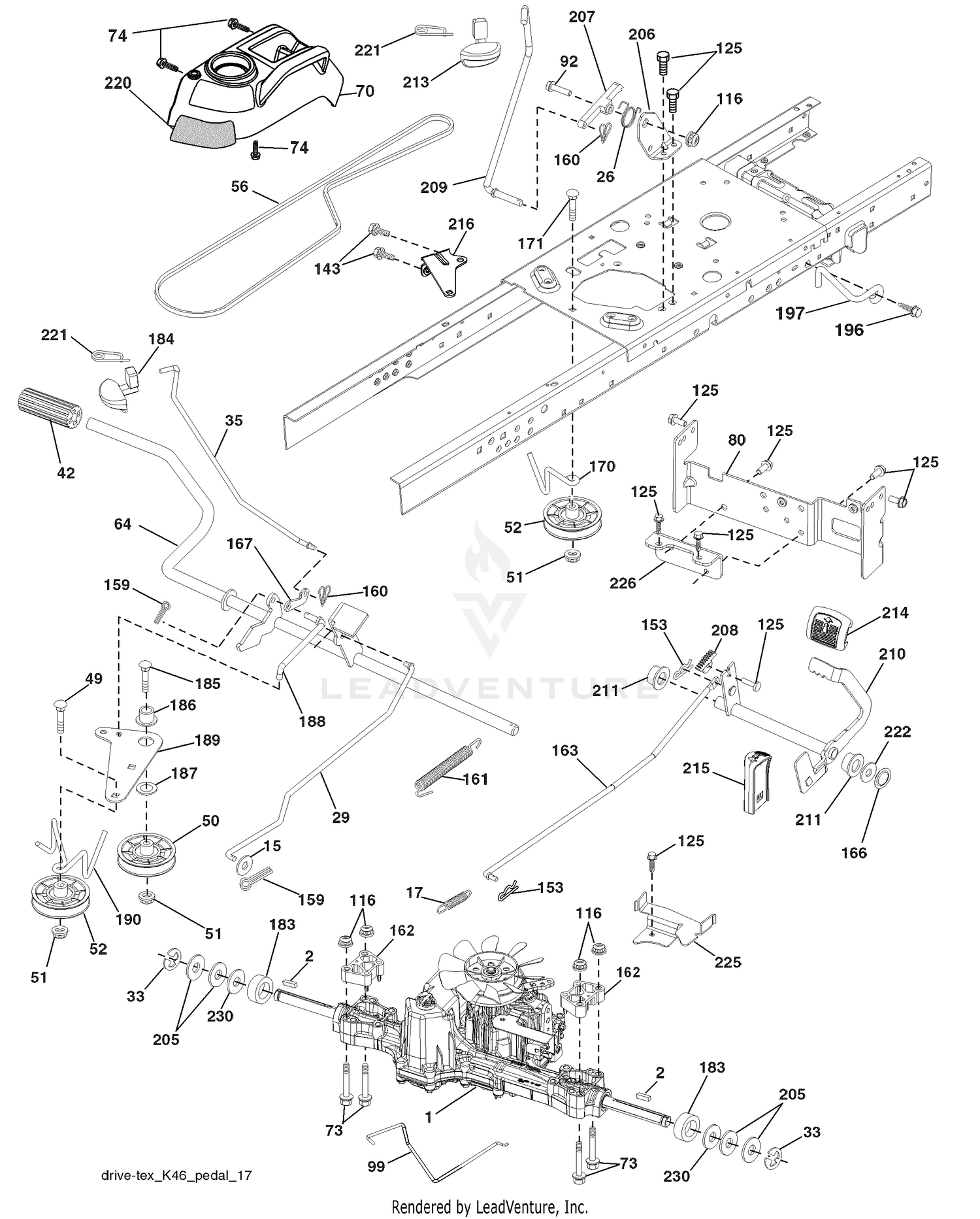

| Ref | Part Number | Description |
|---|
| 1 |
58-6940 |
COOLANT ONLY DECAL Price: $7.93 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
92-5655 |
TUBE-CANOPY Price: $15.47 |
| 3 |
58-3930 |
BUSHING-OILITE Price: $15.24 |
| 4 |
58-5330 |
SPACER-HINGE, CANOPY Price: $21.23 |
| 5 |
58-1970-01 |
PLATE-HINGE, LEFT This part replaces 58-1970. Price: $199.89 |
| 6 |
92-6086 |
REAR SCREEN ASM This part replaces 92-4793. Price: $2,609.76 |
| 7 |
92-5253 |
STRIP-SEALING Price: $59.20 |
| 8 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 9 |
58-3910 |
PIN-HINGE, CANOPY Price: $70.69 |
| 10 |
77-3620 |
KNOB-RETAINER Price: $15.13 |
| 11 |
49-2280 |
DECAL Price: $22.38 |
| 12 |
86-6130 |
BALL-STUD Price: $7.46 |
| 13 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 14 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 15 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 16 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 17 |
88-6760 |
SPRING-GAS Price: $143.68 |
| 18 |
92-5270-03 |
BAFFLE-LOWER BODY This part replaces 92-5270. Price: $65.31 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
3250-25 |
SCREW-PPH Price: $0.23 |
| 21 |
3253-2 |
WASHER-LOCK Price: $0.25 |
| 22 |
58-5380 |
LATCH-DRAW Price: $43.60 |
| 23 |
58-7070-03 |
SPACER-LATCH, RH This part replaces 58-7070. Price: $17.58 |
| 24 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
3250-31 |
SCREW-PPH Price: $0.25 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 26 |
68-6040 |
BRACKET Price: $13.03 |
| 27 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 28 |
3256-21 |
WASHER-FLAT Price: $0.25 |
| 29 |
3296-27 |
NUT-LOCK, NI Price: $0.27 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
92-5681 |
FOAM-HOOD, LH Price: $187.22 |
| 31 |
86-6470 |
DECAL - RM 4500D Price: $68.10 |
| 32 |
92-4713 |
CANOPY-FRONT This part replaces 92-4712. Price: $3,149.95 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 33 |
92-5673-03 |
SUPPORT-FOAM, FRONT This part replaces 92-5673. Price: $46.11 |
| 34 |
92-5679 |
FOAM-HOOD, FRONT Price: $166.50 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 35 |
92-5672-03 |
SUPPORT-FOAM, CANOPY This part replaces 92-5672. Price: $198.05 |
| 36 |
92-5678 |
FOAM-HOOD, TOP Price: $239.26 |
| 37 |
33024-00 |
NUT-LOCK, NI This part replaces 48-9510. Price: $0.75 |
| 38 |
92-5652-03 |
BRACKET This part replaces 92-5652. Price: $10.46 |
| 39 |
92-6060 |
STRIP-SEALING Price: $59.20 |
| 40 |
33114-025 |
SCREW-HH This part replaces 48-9460. Price: $0.70 |
| 41 |
3253-4 |
WASHER-LOCK This part replaces 48-9570. Price: $0.25 |
| 42 |
33094-00 |
WASHER-PLAIN This part replaces 48-8030. Price: $0.25 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ This part replaces 532400530. Price: $79.99 |
| 73 |
583613301 |
BOLT.HEX.FLNG.5/16-18X3.75 This part replaces 874490560. Price: $4.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
531064101 |
SERVICE KIT TORQUE STRAP BLACK This part replaces 532410024. Price: $19.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532415743 |
ROD.SPRING.BYPASS.K46.TEX.GT Price: $6.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532107509 |
Spring, Return, Clutch Price: Call Us |
| 162 |
580457401 |
SPACER.TRANSAXLE.1" This part replaces 532195785. Price: $12.99 |
| 163 |
593861001 |
Rods This part replaces 532401034. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
596435101 |
Bolts This part replaces 872110620. Price: $2.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX This part replaces 532401722. Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 226 |
529846701 |
SERVICE KIT BRKT.MOUNT.TORQUE. This part replaces 532400831. Price: $4.99 |
