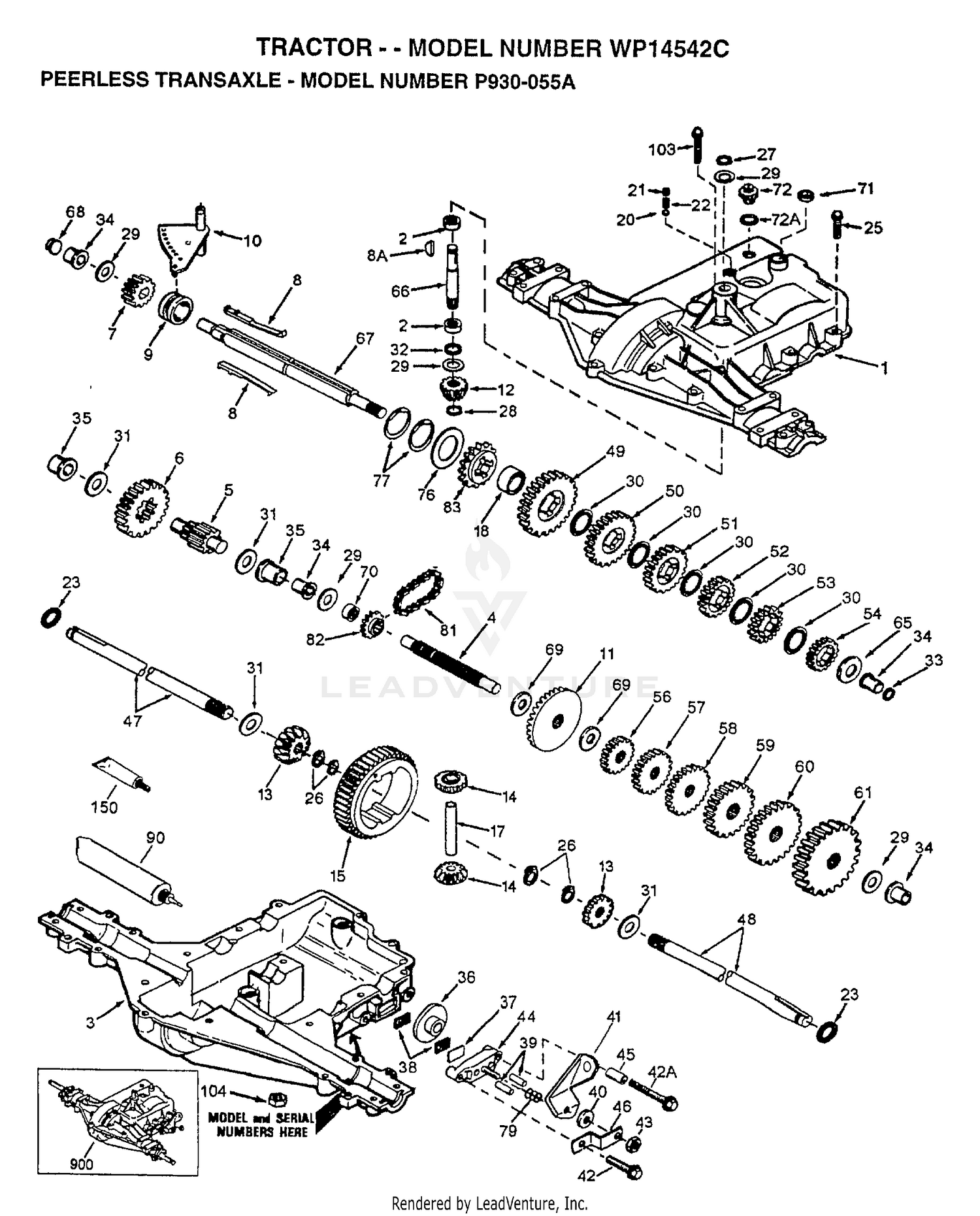

| Ref | Part Number | Description |
|---|
| 1 |
120-0018 |
BRAKE ROD KIT This part replaces 110-5498. Price: $82.04 |
| 1 |
772108A |
TRANSAXLE COVER Price: Call Us |
| 2 |
3219-3 |
NUT-HEX Price: $0.34 |
| 2 |
780086 |
BEARING, NEEDLE Price: Call Us |
| 3 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 3 |
770102A |
TRANSAXLE CASE Price: Call Us |
| 4 |
109-2230 |
SPRING-COMPRESSION Price: $8.99 |
| 4 |
776260 |
SHAFT, COUNTER Price: Call Us |
| 5 |
112-1676 |
SWIVEL Price: $41.95 |
| 5 |
776219B |
OUTPUT SHAFT AND PINION Price: Call Us |
| 6 |
120-0018 |
BRAKE ROD KIT This part replaces 110-5494. Price: $82.04 |
| 6 |
778139 |
GEAR, OUTPUT Price: Call Us |
| 7 |
32151-47 |
RING-RETAINING Price: $2.49 |
| 7 |
778136 |
GEAR, SPUR, 15 TEETH Price: Call Us |
| 8 |
65-2720 |
RING-RETAINING,CLIP This part replaces 32151-68. Price: $0.99 |
| 8 |
792136A |
SHIFT KEY Price: Call Us |
| 8A |
792047 |
KEY, WOODRUFF Price: Call Us |
| 9 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 9 |
784352 |
COLLAR, SHIFTER Price: Call Us |
| 10 |
323-6 |
SCREW-HH Price: $0.66 |
| 10 |
784355 |
ROD & FORK ASSY, SHIFT Price: Call Us |
| 11 |
1-633268 |
GRIP-LEVER Price: $13.99 |
| 11 |
778229 |
GEAR, BEVEL, 42 TEETH Price: Call Us |
| 12 |
108-5214-03 |
BRAKE HANDLE ASM Price: $81.91 |
| 12 |
778113A |
BEVEL PINION, INPUT Price: Call Us |
| 13 |
3250-35 |
SCREW-PPH Price: $3.24 |
| 13 |
778221 |
GEAR, BEVEL Price: Call Us |
| 14 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 14 |
778068 |
GEAR, BEVEL, PINION Price: Call Us |
| 15 |
778260 |
GEAR, RING Price: Call Us |
| 15 |
95-8900 |
SWITCH Price: $95.42 |
| 16 |
108-9824 |
NUT-SWITCH Price: $1.97 |
| 17 |
1-633102 |
BEARING-FLANGE, SIDE Price: $17.99 |
| 17 |
786139 |
PIN, DRIVE Price: Call Us |
| 18 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 18 |
786102 |
SPACER, NEUTRAL Price: Call Us |
| 19 |
110-9754 |
BRAKE PIVOT ASM Price: $32.85 |
| 20 |
1-513140 |
BEARING-CONTROL Price: $4.99 |
| 20 |
792077 |
BALL STEEL, 5/16" DIA. Price: Call Us |
| 21 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 21 |
792078 |
SCREW, 3/8-16 X 3/8" Price: Call Us |
| 22 |
1-633131 |
YOKE-LINKAGE, BRAKE Price: $14.99 |
| 22 |
792079 |
SPRING Price: Call Us |
| 23 |
788061 |
RING, SEAL Price: Call Us |
| 25 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 26 |
792125 |
RING RETAINER Price: Call Us |
| 27 |
792035 |
RING, RETAINER Price: Call Us |
| 28 |
788040 |
RETAINING RING Price: Call Us |
| 29 |
780072 |
WASHER THRUST Price: Call Us |
| 30 |
780108 |
WASHER THRUST Price: Call Us |
| 31 |
780001 |
WASHER Price: Call Us |
| 33 |
788095 |
SEAL, SQUARE CUT Price: Call Us |
| 34 |
780105A |
BUSHING, FLANGED Price: Call Us |
| 35 |
780118A |
BUSHING, FLANGED Price: Call Us |
| 36 |
790003 |
DISK, BRAKE Price: Call Us |
| 37 |
790007 |
PLATE BRAKE PAD Price: Call Us |
| 38 |
799021 |
BRAKE PAD Price: Call Us |
| 39 |
786026 |
PIN DOWEL Price: Call Us |
| 40 |
792076A |
WASHER Price: Call Us |
| 41 |
790079 |
BRAKE LEVER Price: Call Us |
| 42 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 42A |
792085A |
SCREW, 1/4-20 X 2-1/4 Price: Call Us |
| 43 |
792075 |
LOCKNUT 5/16-24 Price: Call Us |
| 44 |
790025 |
HOLDER BRAKE PAD Price: Call Us |
| 45 |
786066 |
SPACER Price: Call Us |
| 46 |
786086 |
BRKT BRAKE LEVER Price: Call Us |
| 47 |
774690 |
AXLE Price: Call Us |
| 48 |
774691 |
AXLE Price: Call Us |
| 49 |
778215 |
GEAR, SPUR, 37 TEETH Price: Call Us |
| 50 |
778125 |
GEAR, SPUR, 35 TEETH Price: Call Us |
| 51 |
778124A |
GEAR, SPUR, 30 TEETH Price: Call Us |
| 52 |
778123A |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 53 |
778122A |
GEAR, SPUR, 22 TEETH Price: Call Us |
| 54 |
778273 |
GEAR, SPUR, 19T Price: Call Us |
| 56 |
778230 |
GEAR, SPUR, 12 TEETH Price: Call Us |
| 57 |
778151 |
GEAR, SPUR, 15 TEETH Price: Call Us |
| 58 |
778126A |
GEAR, SPUR, 20 TEETH Price: Call Us |
| 59 |
778127A |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 60 |
778128A |
GEAR, SPUR, 28 TEETH Price: Call Us |
| 61 |
778163 |
GEAR, SPUR, 31 TEETH Price: Call Us |
| 65 |
780109 |
WASHER, THRUST Price: Call Us |
| 66 |
776135 |
SHAFT, INPUT Price: Call Us |
| 67 |
776315A |
SHAFT, BRAKE, 4 KEYED Price: Call Us |
| 68 |
786116A |
PLUG Price: Call Us |
| 69 |
780051 |
WASHER THRUST Price: Call Us |
| 70 |
786118 |
SPACER Price: Call Us |
| 71 |
788069 |
SEAL SQUARE CUT Price: Call Us |
| 72 |
792165 |
THREADED PLUG 9/16-18 Price: Call Us |
| 76 |
780090 |
WASHER, THRUST Price: Call Us |
| 77 |
788078A |
INVERTED RETAINING RING Price: Call Us |
| 79 |
792144 |
SPRING Price: Call Us |
| 81 |
786081 |
CHAIN, ROLLER Price: Call Us |
| 82 |
786082 |
SPROCKET 9T Price: Call Us |
| 83 |
786123 |
SPROCKET 18T (REV) Price: Call Us |
| 90 |
788067B |
GREASE BENTONITE, 32 OZ. Price: Call Us |
| 103 |
792166 |
SCREW Price: Call Us |
| 104 |
792167 |
LOCKNUT Price: Call Us |
| 150 |
510334 |
GASKET ELIMINATOR Price: Call Us |
