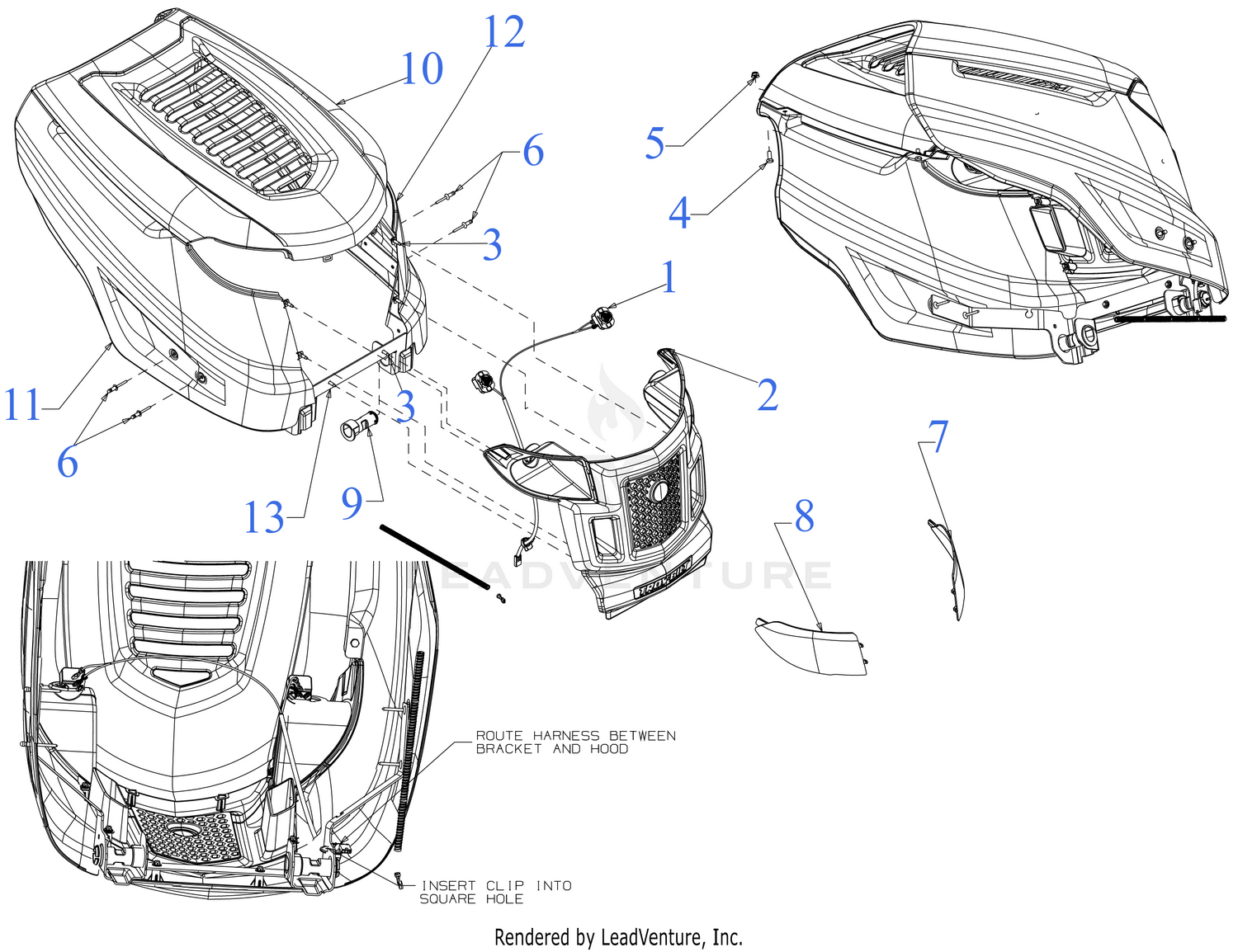

Hood
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 625P08864 | HEADLIGHT HARNESS (LED/3PIN) Price: $62.09 |
| 1 | 925-06095A | LED HEADLIGHT & SOCKET (150 LUMNES) Price: $46.17 |
| 2 | 631-04272 | GRILLE ASSEMBLY (TROY-BILT) Price: $61.79 |
| 2 | 777D13024 | LABEL-TROYBILT/GEAR Price: $7.62 |
| 4 | 710-0751 | SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 5 | 712-04064 | FLANGE LOCK NUT Price: $3.64 |
| 6 | 728-04063 | POP RIVET 6.4MM x 10MM Price: $3.45 |
| 7 | 731-06095 | LENS (LH) Price: $10.81 |
| 8 | 731-06096 | LENS (RH) Price: $10.74 |
| 9 | 731-10070A | HOOD PIVOT PIN Price: $5.18 |
