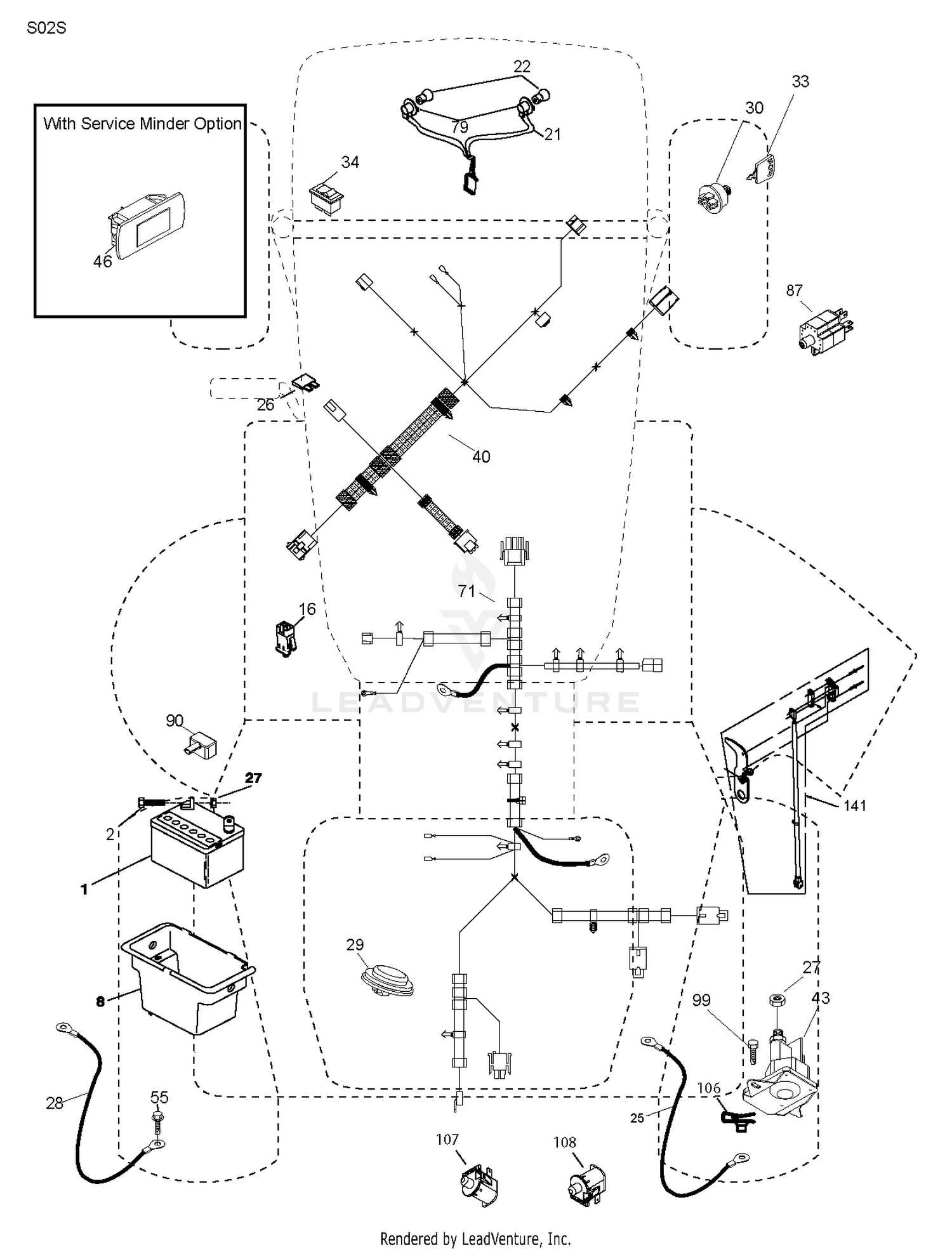

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144924. Price: $149.99 |
| 1 |
93-4032 |
SHAFT-JACK Price: $245.00 |
| 2 |
68-3220 |
KEY-STOCK Price: $4.60 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
67-7490 |
KEY-SQUARE Price: $2.30 |
| 4 |
3243-6 |
SCREW-SET, SQH Price: $4.23 |
| 5 |
3218-3 |
NUT-JAM Price: $0.25 |
| 8 |
13-6260 |
ADJUSTING SCREW ASM Price: $77.62 |
| 8 |
583377701 |
BOX.BATTERY.LT/SRD This part replaces 532419791. Price: $19.99 |
| 9 |
13-5520 |
SPACER-SCREW, ADJUSTING Price: $23.41 |
| 10 |
324-7 |
SCREW-HH Price: $1.79 |
| 11 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
13-0100 |
PIVOT-LINK, RAKE LIFT Price: $61.98 |
| 14 |
3219-3 |
NUT-HEX Price: $0.34 |
| 15 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 16 |
1-633131 |
YOKE-LINKAGE, BRAKE This part replaces 282-22. Price: $14.99 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
108-0930 |
LIFTING BELL CRANK-RH This part replaces 93-4440. Price: $337.37 |
| 19 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 20 |
3217-8 |
NUT-HEX Price: $1.34 |
| 21 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
3247-6 |
SCREW-SET Price: $1.02 |
| 24 |
13-4880-01 |
SPROCKET This part replaces 13-4880. Price: $784.22 |
| 25 |
13-0480 |
SPRING Price: $30.51 |
| 25 |
532416694 |
CABLE.BATTERY.20.RED.8 AWG Price: $17.99 |
| 26 |
13-3990-01 |
HANDLE-TRIP This part replaces 13-3990. Price: $189.07 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
108-0928 |
LIFTING BELL CRANK-LH This part replaces 13-5500. Price: $337.37 |
| 28 |
583390701 |
CABLE.GROUND.REAR.BATTERY.8GA This part replaces 532421686. Price: $8.99 |
| 29 |
13-0050 |
SPRING-EXTENSION Price: $93.83 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
13-5530 |
ROD-ADJUST, SPRING Price: $67.42 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
13-4490-01 |
DISCONTINUED This part replaces 13-4490. Price: Call Us |
| 32 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 33 |
322-7 |
SCREW-HH Price: $0.89 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 34 |
63-5210-01 |
DRIVE SIDE SPDL WA This part replaces 63-5210. Price: $150.53 |
| 35 |
56-6230 |
BEARING-ROLLER Price: $72.34 |
| 36 |
140-2208 |
PULLEY-DRIVE This part replaces 93-4033. Price: $163.75 |
| 37 |
13-3710 |
WASHER Price: $3.05 |
| 38 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 39 |
321-4 |
SCREW-HH Price: $0.99 |
| 40 |
93-4438 |
BRACKET WA - SUPPORT Price: $108.32 |
| 41 |
324-10 |
SCREW-HH Price: $1.97 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
532413931 |
Price: Call Us |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532429412 |
RP.HARNESS.ELEC.CHASSIS.SRD Price: $89.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 87 |
583385701 |
SWITCH.RAILMOUNT.NO-NC-NC This part replaces 532421060. Price: $17.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532400725. Price: $4.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 107 |
532421061 |
SWITCH.SNAPMOUNT.NO.#2 Price: $11.99 |
| 108 |
532421062 |
SWITCH.SNAPMOUNT.NC Price: $12.99 |
| 141 |
532416977 |
KIT T2.ROS 71677 Price: $119.99 |
