| Ref | Part Number | Description |
|---|
| 1 |
117-5199 |
HUB-PEDAL, TRACTION Price: $47.99 |
| 1 |

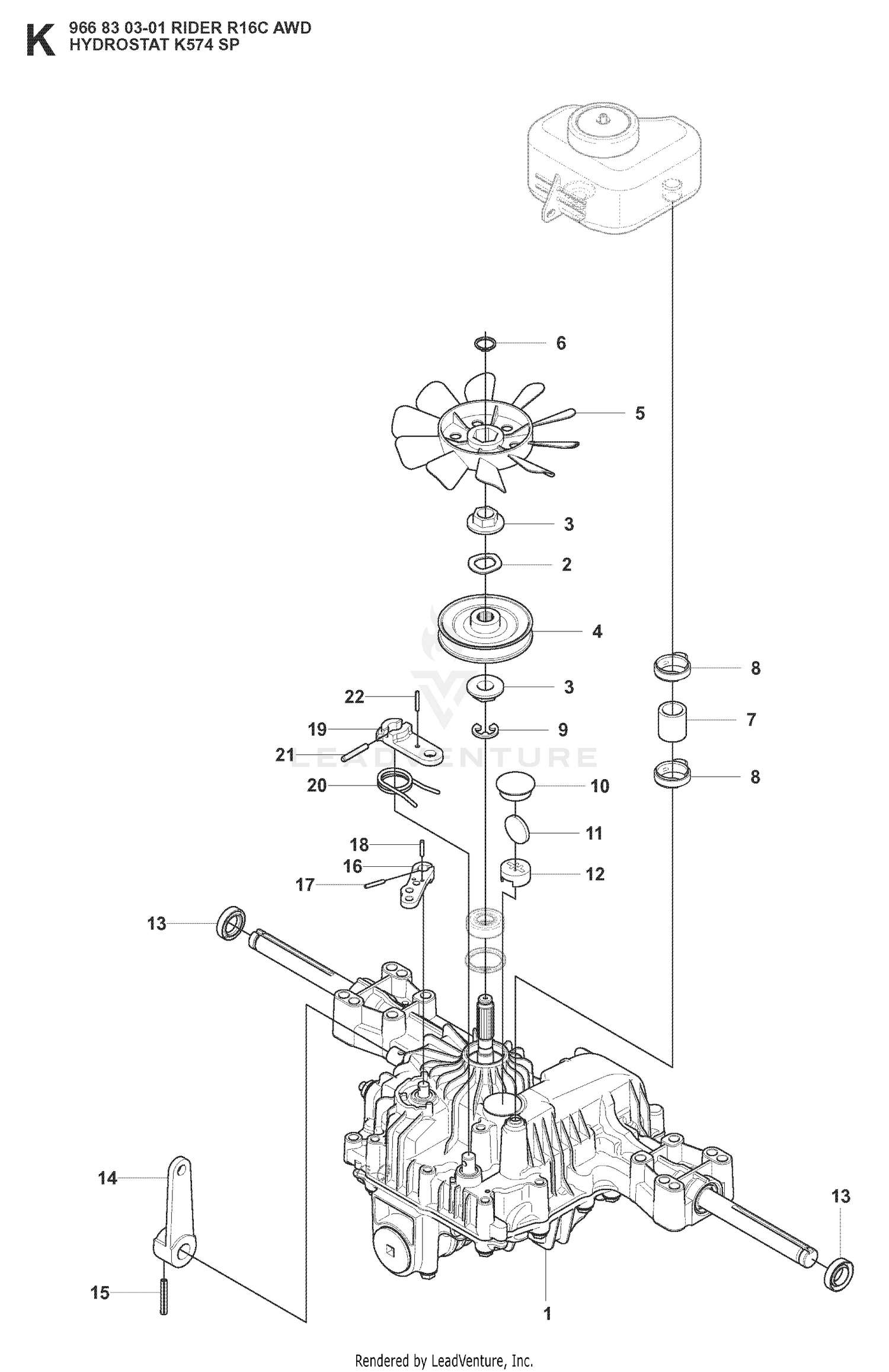

590716801 |
TRANSMISSION K574A This part replaces 544116101. Price: $849.99 |
| 2 |
117-9507 |
PEDAL-ACCELERATOR Price: $12.86 |
| 2 |
506986501 |
WASHER ** Price: $3.99 |
| 3 |
506986601 |
SLEEVE Price: $7.99 |
| 3 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 4 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 4 |
502451901 |
PULLEY B Price: $37.99 |
| 5 |
106-3840 |
PEDAL-TRACTION Price: $88.41 |
| 5 |
583350101 |
FAN.BLACK.1A646083070 This part replaces 506986801. Price: $27.99 |
| 6 |
735311500 |
RETAINING RING ** Price: $2.99 |
| 6 |
92-7305 |
SPRING-EXTENSION Price: $9.99 |
| 7 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 7 |
502451601 |
TUBE Price: $17.99 |
| 8 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 8 |
505131102 |
HOSE CLAMP 20-32 This part replaces 506987001. Price: $4.99 |
| 9 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 9 |
535402807 |
CLIP Price: $0.25 |
| 10 |
535402832 |
PLUG Price: $14.99 |
| 10 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 11 |
127-2721 |
CABLE-TRACTION Price: $141.82 |
| 11 |
535402829 |
MAGNET Price: $5.17 |
| 12 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 12 |
535402830 |
HOLDER Price: $4.55 |
| 13 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 13 |
583349301 |
SEAL.19, 19216334280 This part replaces 535402837. Price: $17.99 |
| 14 |
502453201 |
CONTROL LEVER Price: $34.99 |
| 14 |
66-8010 |
SPACER Price: $4.19 |
| 15 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 16 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 16 |
535402817 |
ARM Price: $19.99 |
| 17 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 17 |
535402816 |
PIN Price: $2.99 |
| 18 |
321-9 |
SCREW-HH Price: $0.27 |
| 18 |
535402833 |
PIN Price: $2.99 |
| 19 |
535402838 |
ARM Price: $14.99 |
| 19 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 20 |
115-0282 |
PROXIMITY SENSOR ASM Price: $155.22 |
| 20 |
535402839 |
RETURN SPRING Price: $11.99 |
| 21 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 21 |
535402840 |
PIN Price: $3.99 |
| 22 |
323-17 |
SCREW-HH Price: $2.05 |
| 22 |
535402841 |
PIN Price: $2.99 |
| 23 |
62-4420 |
WASHER Price: $6.69 |
| 24 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 25 |
117-8066 |
MOW-STOP Price: $62.29 |
| 26 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 27 |
106-3731 |
ROD-PIVOT Price: $36.19 |
| 28 |
110-8982 |
WASHER-SPRING Price: $2.71 |
| 29 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 30 |
115-0120-03 |
PEDAL-BRAKE Price: $158.58 |
| 31 |
125-8775 |
BUSHING-FLANGE Price: $1.09 |
| 32 |
104-7179 |
PIVOT-PEDAL Price: $43.97 |
| 33 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 34 |
99-7963-03 |
PEDAL-PARK Price: $26.63 |
| 35 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 36 |
115-0129 |
ROD-PAWL, BRAKE Price: $29.11 |
| 37 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 38 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 39 |
99-7214 |
PAWL-BRAKE Price: $28.35 |
| 40 |
99-7140 |
SPRING-TORSION Price: $21.98 |
| 41 |
52-2891 |
BUSHING-FLANGED, NYLON Price: $3.19 |
| 42 |
323-12 |
SCREW-HH Price: $1.14 |
| 43 |
117-0238 |
DETENT Price: $11.85 |
| 44 |
5-0652 |
SPACER Price: $5.35 |
| 45 |
283-14 |
PIN-CLEVIS Price: $2.92 |
| 46 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 47 |
117-0106 |
CABLE-BRAKE, RH Price: $117.67 |
| 48 |
117-0107 |
CABLE-BRAKE, LH Price: $113.33 |
| 49 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 50 |
115-8060 |
CLEVIS-DOUBLE Price: $15.64 |
| 51 |
115-8059 |
YOKE-CABLE Price: $11.28 |
