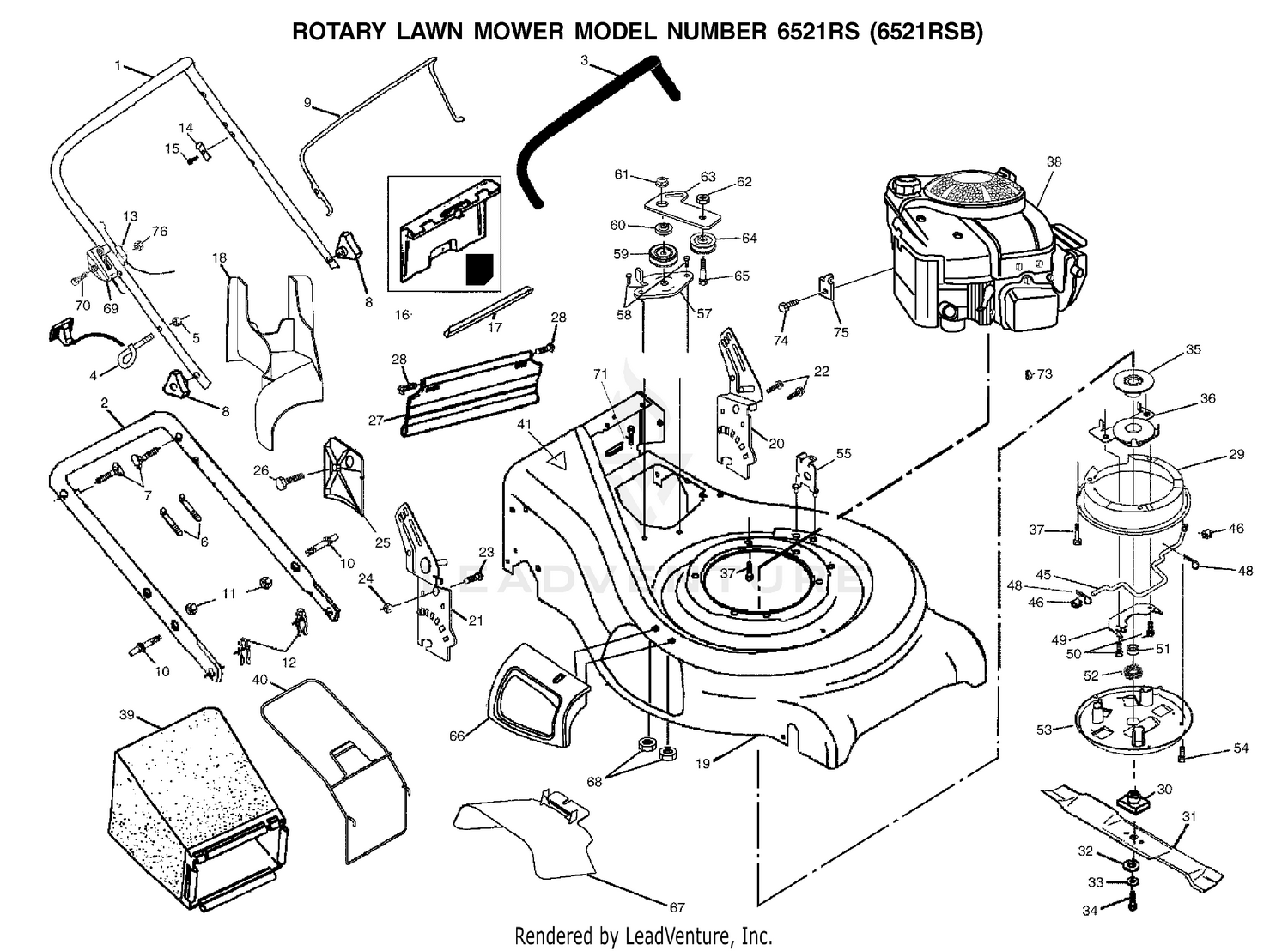

| Ref | Part Number | Description |
|---|
| 1 |
532167163 |
HANDLE, UPPER DLX COMF. (GRIP) Price: $37.99 |
| 2 |
532197202 |
HANDLE.LOWER.21.GREY This part replaces 532164556. Price: $19.99 |
| 3 |
585161003 |
GRIP.HANDLE.FOAM.438MM This part replaces 532164265. Price: $4.99 |
| 4 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532179585. Price: $7.99 |
| 5 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 6 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 7 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 8 |
532087692 |
KNOB Price: $8.99 |
| 10 |
532188821 |
BOLT This part replaces 532161551. Price: $4.99 |
| 11 |
596040501 |
Hardware This part replaces 873990500. Price: $2.99 |
| 12 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 13 |
532133107 |
ENGINE ZONE CONTROL Price: $17.99 |
| 14 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 15 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 16 |
532162085 |
KIT.DOOR.REAR.21.WRAPPED.BLACK Price: $40.99 |
| 17 |
532189059 |
SEAL.DOOR.21" (2 2MC) This part replaces 532161548. Price: $4.99 |
| 18 |
532198170 |
PLUG.MULCHER.RGD.21. This part replaces 532165261. Price: $32.99 |
| 20 |
532161568 |
HANDLE, BRACKET ASM. LEFT This part replaces 532164548. Price: $9.88 |
| 21 |
532181020 |
BRACKET.ASM.HNDL.21.RWGD.EZ.RT This part replaces 532169306. Price: $12.99 |
| 22 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 23 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 24 |
596040501 |
Hardware This part replaces 532063124. Price: $2.99 |
| 25 |
532161333 |
CLIPPING DEFLECTOR Price: $9.99 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 27 |
532408442 |
SKIRT.REAR.21.RWGD.BLACK(2 2M) This part replaces 532161550. Price: $8.99 |
| 28 |
532088652 |
HINGE SCREW Price: $3.99 |
| 29 |
532190930 |
COVER.BELT.BBC.AW.TOP This part replaces 532177652. Price: $22.99 |
| 30 |
532851514 |
BLADE ADAPTOR Price: $7.99 |
| 32 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 33 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 34 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 35 |
532169809 |
PULLEY, FIXED Price: $14.99 |
| 36 |
532179222 |
BEARING SUPT. This part replaces 532170045. Price: $48.99 |
| 37 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 39 |
532410686 |
GBAG.29510010.BLK.GEN.250C2 This part replaces 532169111. Price: $64.99 |
| 40 |
532161358 |
FRAME.GRASS.CATCHER.WALK.21" Price: $54.99 |
| 41 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 45 |
532166034 |
ROD.PULLEY.ENGAGE Price: $10.99 |
| 48 |
532169605 |
RETAINER CLIP Price: $2.99 |
| 49 |
532175787 |
CLAMP, PIVOT This part replaces 532177653. Price: $3.82 |
| 50 |
532054583 |
SCREW Price: $4.99 |
| 51 |
532169980 |
SPACER RING Price: $5.99 |
| 52 |
532170868 |
WASHER.WAVE.SPRING Price: $6.99 |
| 53 |
532173041 |
BELT COVER, BOTTOM (1 2) Price: $6.99 |
| 54 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 55 |
532166383 |
BRKT ASM, CABLE This part replaces 532177651. Price: $2.90 |
| 57 |
532166391 |
BRKT ASM, IDLER This part replaces 532177656. Price: $3.99 |
| 58 |
532057808 |
SCREW Price: $1.99 |
| 59 |
532166042 |
PULLEY.V-GROOVE.IDLER Price: $22.99 |
| 60 |
532166050 |
IDLER ARM SPACER Price: $7.99 |
| 61 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 62 |
873930500 |
NUT.CENTERLOCK.5/16- This part replaces 532155552. Price: $3.99 |
| 63 |
532166022 |
ARM.IDLER.YELLOW This part replaces 532177655. Price: $4.99 |
| 64 |
532166043 |
IDLER PULLEY Price: $27.99 |
| 65 |
532160829 |
SHOULDER BOLT Price: $4.99 |
| 66 |
532183058 |
DOOR.ASM.MULCH.21.RWD This part replaces 532171962. Price: $99.99 |
| 67 |
532169699 |
DEFLECTOR.21.MCUT.RWGD.GRAY This part replaces 532166028. Price: $8.99 |
| 68 |
532088349 |
NUT Price: $3.99 |
| 69 |
532168246 |
THROTTLE CONTROL Price: $12.99 |
| 70 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $4.99 |
| 71 |
532054583 |
SCREW Price: $4.99 |
| 73 |
532087677 |
HI PRO KEY PM WSL Price: $3.99 |
| 74 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 75 |
532111190 |
CABLE CLAMP(ENGINE) Price: $4.99 |
| 76 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
