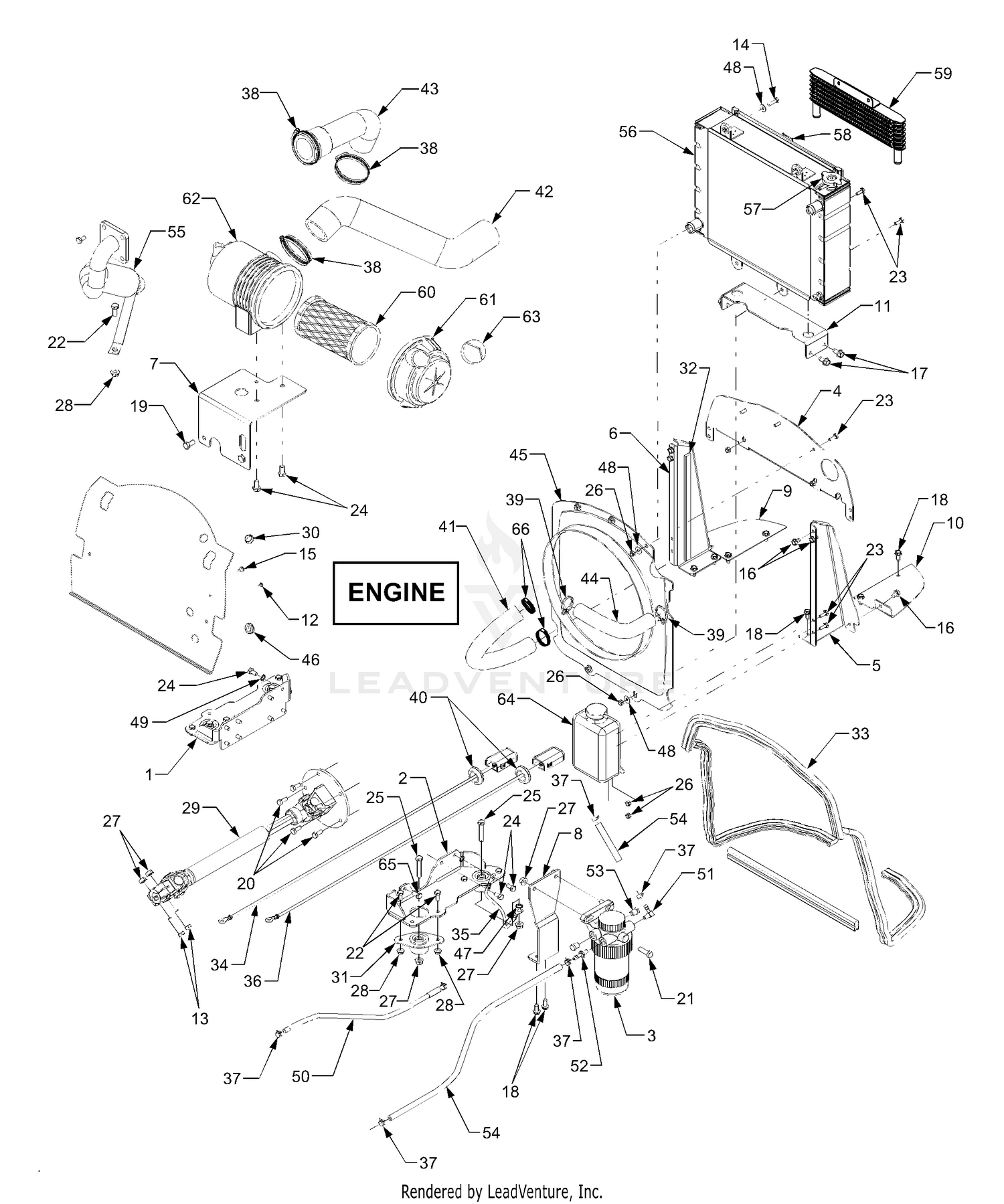

| Ref | Part Number | Description |
|---|
| 1 |
603-0744-0637 |
ENGINE BRACKET (LH) (POWDER BLACK) Not Available Price: |
| 1 |
93-5627 |
PLATFORM ASM Price: $3,445.16 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 2 |
603-0745-0637 |
ENGINE BRACKET (RH) (POWDER BLACK) Not Available Price: |
| 2 |
93-5310-01 |
COVER-TUBES Price: $85.03 |
| 3 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 3 |
651-0007 |
DIESEL FILTER ASSEMBLY Not Available Price: |
| 4 |
283-83 |
PIN-CLEVIS Price: $9.52 |
| 4 |
703-3483 |
RADIATOR BAFFLE PLATE Not Available Price: |
| 5 |
703-3484 |
BRACKET (RH) RADIATOR Not Available Price: |
| 5 |
98-2395-03 |
SEAT-BASE ASM Price: $229.69 |
| 6 |
240-5 |
GROMMET Price: $13.66 |
| 6 |
703-3485 |
RADIATOR BRACKET (LH) Not Available Price: |
| 7 |
703-05135 |
BRACKET-AIR CLEANER M Not Available Price: |
| 7 |
93-5338 |
ROD-PROP Price: $124.99 |
| 8 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 8 |
703-3603A-0637 |
FUEL FILTER BRACKET Not Available This part replaces 703-3603A. Price: |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
703-05140A-0637 |
BAFFLE PLATE (LH) (POWDER BLACK) Not Available This part replaces 703-05140. Price: |
| 9 |
93-5366 |
SHAFT-LATCH Price: $34.55 |
| 10 |
703-05141A-0637 |
BAFFLE PLATE (RH) (POWDER BLACK) Not Available This part replaces 703-05141. Price: |
| 10 |
93-5363 |
LATCH ASM Price: $171.01 |
| 11 |
703-3741 |
RADIATOR MOUNTING BRACKET Not Available Price: |
| 11 |
93-5367 |
SPRING-TORSION Price: $30.35 |
| 12 |
586478501 |
ENGINE.PULLEY Price: $27.99 |
| 12 |
910-0224 |
Screw, #10-16, .50 This part replaces 710-0224. Price: $3.19 |
| 12 |
93-5334 |
STRIP-FOAM, SEAT Price: $3.78 |
| 13 |
710-0347 |
Screw, Hex Cap 3/8-16 x 1.75 GR5 Price: $4.39 |
| 13 |
93-5335 |
STRIP-FOAM, SEAT Price: $3.33 |
| 14 |
33103-016 |
SCREW-HHF Price: $5.18 |
| 14 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 15 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99 |
| 15 |
710-0599 |
Screw, Hex Wash Hd Tapp 1/4-20 x .5 Price: $3.86 |
| 15 |
93-5348 |
ABRASIVE-FLOOR Price: $34.12 |
| 16 |
710-0607 |
Screw, Hex Wash Hd Tapp 5/16-18 x .5 Price: $6.06 |
| 16 |
93-5447 |
NUT-CLINCH Price: $0.95 |
| 17 |
710-0623 |
Screw, Hex Wash Hd Tapp 3/8-16 x .75 Price: $3.93 |
| 17 |
93-5449 |
NUT-CLINCH Price: $4.12 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 18 |
710-1260A |
Screw, Hex Wash Hd Tapp 5/16-18 x .75 Price: $3.34 |
| 18 |
93-3094 |
PLUG-CAP Price: $1.91 |
| 19 |
33115-060 |
SCREW-HH Price: $2.29 |
| 19 |
710-1376 |
Screw, Hex Cap, M8-1.25 x 16 Price: $6.06 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99 |
| 20 |
710-1681 |
Screw, Hex Cap, M8-1.25 x 20 Price: $5.22 |
| 20 |
93-5308 |
WASHER-ISO MOUNT Price: $1.07 |
| 21 |
104-0148 |
ISO MOUNT SERVICE ASM This part replaces 93-5307. Price: $35.22 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
710-3005 |
Screw, Hex Cap, 3/8-16 x 1/25 GR5 Price: $3.61 |
| 22 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 22 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 23 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 23 |
710-3015 |
Screw, Hex Cap 1/4-20 x .75 GR5 Price: $3.65 |
| 24 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 24 |
710-3138 |
Screw, Hex Cap,l M8-1.25 x 16 Not Available Price: |
| 25 |
710-3144 |
Screw, Hex Cap 3/8-16 x 2/0 GR5 Price: $4.02 |
| 25 |
93-5507 |
ABRASIVE-PLATFORM Price: $22.40 |
| 26 |
712-0324 |
Nut, Hex Insert Lock, 1/4-20 Price: $3.38 |
| 26 |
93-5349 |
ABRASIVE-FLOOR Price: $19.34 |
| 27 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 27 |
912-0431 |
Nut, Hex Flange Lock, 3/8-16 This part replaces 7120431. Price: $4.29 |
| 28 |
28-0570 |
SPRING-COMPRESSION Price: $33.04 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 28 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 29 |
32121-79 |
PIN-ROLL Price: $10.59 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
717-3524 |
Shaft, Drive Not Available Price: |
| 30 |
720-0425 |
CAP PLUG Not Available Price: |
| 30 |
95-3033 |
ROD Price: $69.93 |
| 31 |
722-0262 |
ENGINE MOUNT Not Available Price: |
| 31 |
92-5772 |
DISCONTINUED Price: Call Us |
| 31 |
93-7834 |
DECAL-FOOTREST, RH Price: $36.92 |
| 32 |
722-3022A-12 |
FOAM TAPE .625 WIDE x .25 THK BULK This part replaces 722-3022. Price: $16.02 |
| 32 |
93-5255 |
STRIP-FOAM, PLAT Price: $28.80 |
| 33 |
33114-020 |
SCREW-HH Price: $0.28 |
| 33 |
723-3061 |
Seal, Heat Baffle Price: $1.95 |
| 34 |
725-3281 |
POITIVE BATTERY CABLE Not Available Price: |
| 35 |
725-3283 |
Wire, Ground Price: $19.32 |
| 36 |
725-3287 |
NEGATIVE BATTERY CABLE Not Available Price: |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
726-0205 |
Clamp, Hose Price: $3.71 |
| 38 |
726-0476 |
HOSE CLAMP 2-3" Price: $10.68 |
| 39 |
726-0480 |
HOSE CLAMP Not Available Price: |
| 40 |
731-04018 |
GROMMET Not Available Price: |
| 41 |
731-04269 |
LOWER RADIATOR HOSE Not Available Price: |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 42 |
731-04232 |
AIR CLEANER INLET HOSE Not Available Price: |
| 43 |
731-04210 |
HOSE-AIR INLET Not Available Price: |
| 44 |
731-3350 |
RADIATOR UPPER HOSE Not Available Price: |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 45 |
731-04193 |
SHROUD-RADIATOR FA Not Available Price: |
| 46 |
735-0226 |
Grommet, Rubber Price: $9.09 |
| 47 |
736-0148 |
Washer, External Lock, 3/8 Price: $3.19 |
| 48 |
736-0173 |
Washer, Flat, .28 x .74 x .063 Price: $3.76 |
| 49 |
736-0607 |
Washer, External Lock, 5/16 Price: $3.66 |
| 50 |
751-0535 |
Hose, Fuel Line Price: Call Us |
| 51 |
751-0822 |
FUEL FITTING LINE Not Available Price: |
| 52 |
751-0823 |
FUEL FITTING LINE Not Available Price: |
| 53 |
751-3001 |
PLUG-HEX HEAD 1/4" Not Available Price: |
| 54 |
751-3130 |
FUEL LINE (BULK) Not Available Price: |
| 55 |
651-04010 |
EXHAUST MUFFLER Not Available Price: |
| 56 |
751-3165 |
RADIATOR ASSEMBLY Not Available Price: |
| 57 |
759-04129 |
Radiator Cap Not Available This part replaces 751-3192. Price: |
| 58 |
751-3193 |
RADIATOR SCREEN Not Available Price: |
| 59 |
918-3132 |
OIL COOLER Not Available This part replaces 718-3132. Price: |
| 60 |
751-3194 |
Element, Air Cleaner Price: $48.78 |
| 61 |
751-3195 |
AIR CLEANER CAP Not Available Price: |
| 62 |
931-04228 |
AIR CLEANER CANISTER Not Available This part replaces 731-04228. Price: |
| 63 |
751-3197 |
Nozzle, Air Cleaner Price: $33.14 |
| 64 |
BS-825462 |
RESERVE TANK Not Available Price: |
| 65 |
710-3206A |
Screw, Hx Cap, M8-1.25:25 GR8 Price: $3.64 |
| 69 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 122 |
532421922 |
EXTENSION DRAIN OIL Price: $24.99 |
| 777S30631 |
LABEL-BATT |
EXPLODE Not Available Price: 777S30631 |
| 777S30632 |
LABEL-ROTATING |
FAN Not Available Price: 777S30632 |
| 777S30633 |
LABEL-GAS |
EXPLODE Not Available Price: 777S30633 |
