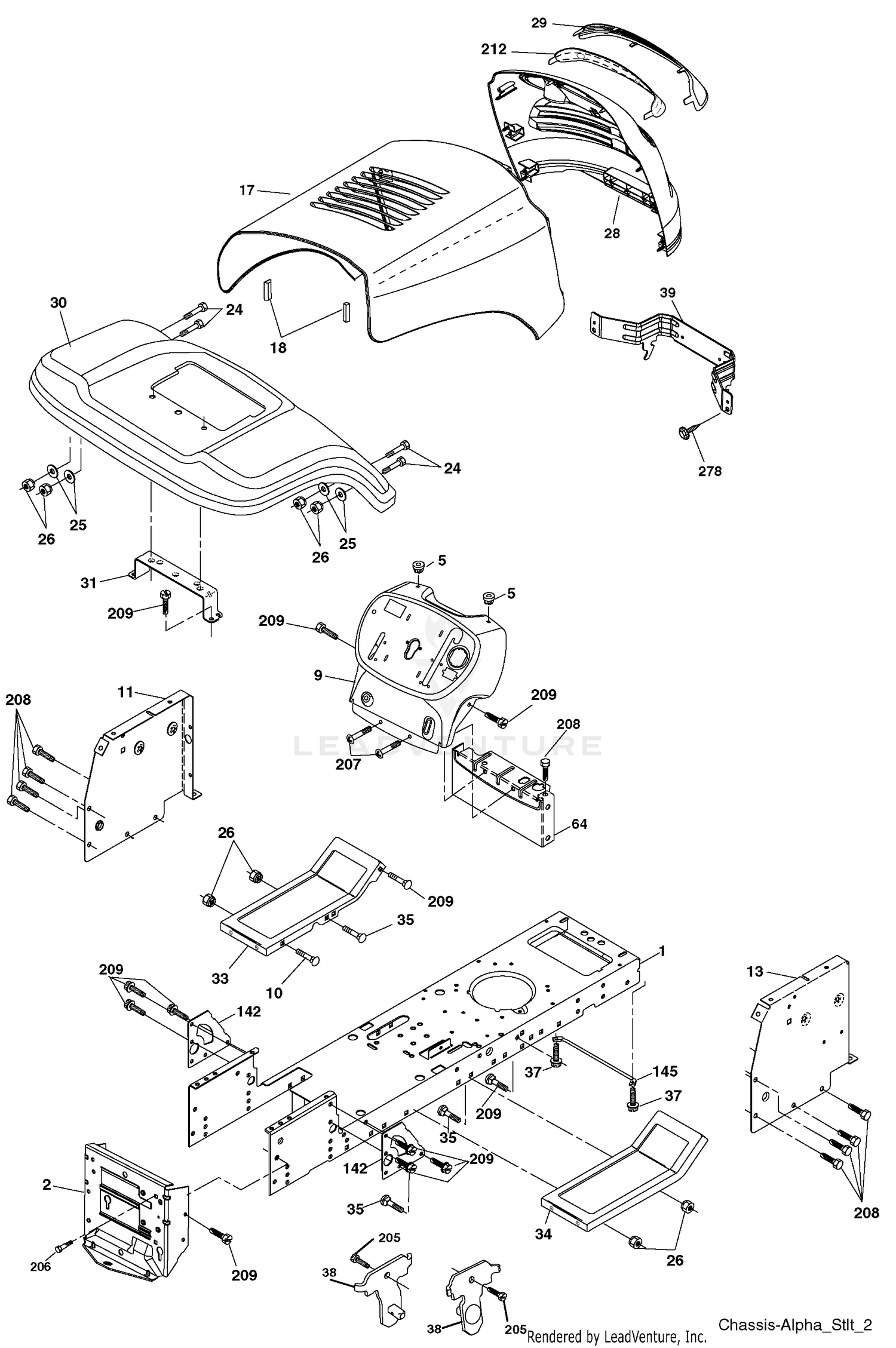

| Ref | Part Number | Description |
|---|
| 1 |
114-5052 |
HOUSING ASM This part replaces 75-0020. Price: $2,587.20 |
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar, Stretch Price: Call Us |
| 2 |
75-0030 |
GASKET-HOUSING Price: $20.85 |
| 3 |
75-0040 |
SECTION-CENTER Price: $2,817.90 |
| 4 |
83-4780 |
HOUSING-PUMP, CHARGE Price: $714.23 |
| 5 |
155272 |
Bumper, Hood/Dash Price: Call Us |
| 5 |
75-0060 |
PLUG Price: $22.19 |
| 6 |
104-2189 |
PLUG-THREAD, STRAIGHT This part replaces 75-0070. Price: $24.99 |
| 7 |
86-7520 |
RH TRUNNION COVER ASM Price: $486.26 |
| 8 |
75-0090 |
CAPSCREW-HH Price: $2.16 |
| 9 |
428394X010 |
Dash Price: Call Us |
| 9 |
86-7530 |
LH TRUNNION COVER ASM Price: $465.32 |
| 10 |
72140608 |
Bolt, Carriage 3/8-16 x 1 Price: Call Us |
| 10 |
75-0110 |
CAPSCREW-HH Price: $2.14 |
| 11 |
174996 |
Panel Dash LH Price: Call Us |
| 11 |
75-0120 |
CAPSCREW-HH Price: $7.11 |
| 12 |
75-0130 |
DISCONTINUED Price: Call Us |
| 13 |
110-6342 |
SPRING This part replaces 75-0140. Price: $9.45 |
| 13 |
172105X010 |
Panel Slkscr Dash RH Price: Call Us |
| 14 |
75-0150 |
GUIDE-SEAL Price: $270.30 |
| 15 |
75-0160 |
PLUG-PIPE Price: $4.39 |
| 16 |
75-0170 |
PLUG-THREAD, STRAIGHT Price: $18.20 |
| 17 |
187559X428 |
Hood Price: Call Us |
| 17 |
75-0180 |
CAPSCREW-HH Price: $19.18 |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 18 |
75-0190 |
PLUG-SPECIAL Price: $124.62 |
| 19 |
67-9090 |
PLUG This part replaces 75-0200. Price: $41.68 |
| 20 |
75-0210 |
O-RING Price: $7.35 |
| 21 |
75-0220 |
PIN Price: $77.53 |
| 22 |
75-0230 |
SEAL-LIP Price: $80.68 |
| 23 |
75-0240 |
O-RING Price: $2.36 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 24 |
75-0250 |
DISCONTINUED Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 25 |
75-0260 |
VALVE-RELIEF Price: $97.16 |
| 26 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 26 |
75-0270 |
SPRING Price: $9.79 |
| 27 |
75-0280 |
SPRING Price: $7.03 |
| 28 |
75-0290 |
DISCONTINUED Price: Call Us |
| 29 |
187567X599 |
Lens Grille Basic Bar Price: Call Us |
| 30 |
192526X428 |
Fender Price: Call Us |
| 30 |
75-0310 |
SHIM Price: $131.21 |
| 31 |
136619 |
Bracket Fender Repl 109873X Price: Call Us |
| 31 |
75-0320 |
NIPPLE Price: $89.72 |
| 32 |
75-0330 |
SEAL-LIP Price: $31.04 |
| 33 |
179716X428 |
Footrest Pnt LH Price: Call Us |
| 33 |
75-0340 |
BEARING-NEEDLE Price: $86.35 |
| 34 |
179717X428 |
Footrest Pnt RH Price: Call Us |
| 34 |
75-0350 |
PIN Price: $8.75 |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 35 |
75-0360 |
GEROTOR Price: $430.63 |
| 36 |
75-0370 |
O-RING Price: $10.08 |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 TYT Price: Call Us |
| 37 |
75-0380 |
PLATE-VALVE Price: $518.86 |
| 38 |
175710 |
Bracket Asm. Pivot Mower Price: Call Us |
| 38 |
75-0390 |
DISCONTINUED Price: Call Us |
| 39 |
187568 |
Bracket Pivot Price: Call Us |
| 39 |
75-0400 |
PLATE-THRUST Price: $41.27 |
| 40 |
75-0410 |
O-RING Price: $5.70 |
| 41 |
86-7540 |
SHAFT-PUMP Price: $910.85 |
| 42 |
75-0430 |
RING-RETAINING Price: $23.82 |
| 43 |
75-0440 |
SHAFT-MOTOR Price: $550.98 |
| 44 |
75-0450 |
COLLAR Price: $44.00 |
| 45 |
75-0460 |
BEARING-BALL Price: $175.71 |
| 46 |
75-0470 |
CYLINDER BLOCK KIT Price: $1,746.91 |
| 47 |
94-3975 |
PIN This part replaces 75-0480. Price: $5.80 |
| 49 |
75-0500 |
BEARING-NEEDLE Price: $83.78 |
| 50 |
75-0510 |
PIN Price: $8.40 |
| 51 |
75-0520 |
BEARING-BALL Price: $88.98 |
| 52 |
75-6930 |
VALVE-SCREW Price: $97.36 |
| 53 |
32120-74 |
RING-SNAP Price: $0.54 |
| 55 |
93-0097 |
VALVE-SCREW Price: $235.37 |
| 64 |
154798 |
Dash Lower Price: Call Us |
| 142 |
175702 |
Plate Reinforcement Price: Call Us |
| 145 |
409167 |
Rod Pivot Chassis/Hood Price: Call Us |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 212 |
187569 |
Insert Lens Reflect Price: Call Us |
| 278 |
416358 |
Screw #10 x 0.750 Single Lead-Hex Price: Call Us |
| 278 |
5479J |
Plug Button Blk 359 Dia Choke Price: Call Us |
