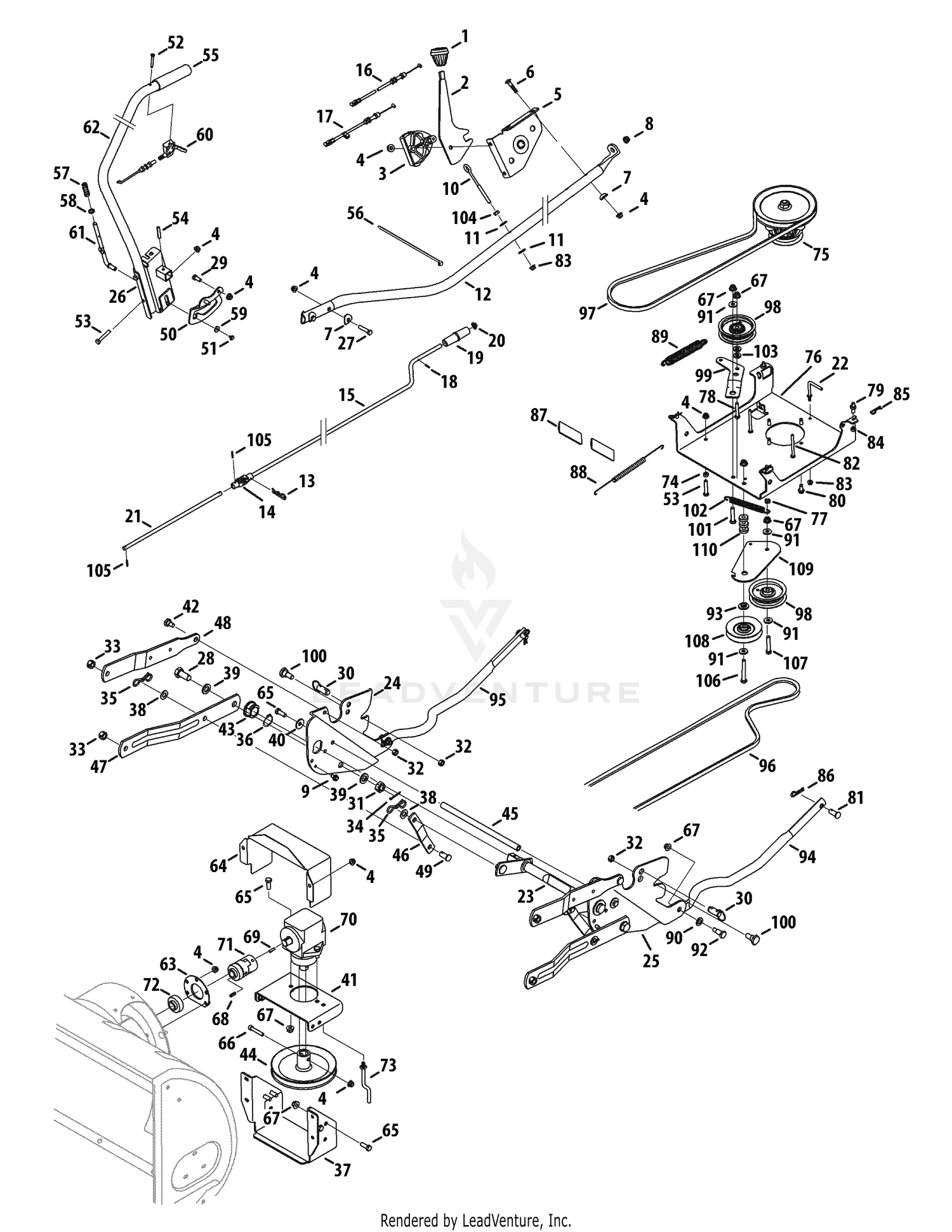

| Ref | Part Number | Description |
|---|
| 1 |
720-04039 |
Knob Price: $9.09 |
| 2 |
784-5604A-0637 |
Chute Tilt Handle Price: $22.34 |
| 3 |
731-1313C |
Chute Tilt Cable Guide Price: $10.46 |
| 4 |
712-04063 |
Nylon Hex Lock Nut, 5/16-18 Price: $3.56 |
| 5 |
603-0302A-0637 |
Assembly, Chute Tilt Bracket This part replaces 603-0302-0637. Price: $60.87 |
| 6 |
710-0262 |
Carriage Bolt, 5/16-18 x 1.5 Price: $3.66 |
| 7 |
736-0451 |
Saddle Washer This part replaces 936-0451. Price: $3.75 |
| 8 |
941-0475 |
Plastic Bushing Price: $3.74 |
| 9 |
710-0604A |
Self Tapping Screw Price: $3.96 |
| 10 |
710-05050 |
Eye Bolt Price: $6.88 |
| 11 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 12 |
750-04467 |
CHUTE SUPPORT TUBE Not Available Price: |
| 13 |
714-0101 |
Int. Cotter Pin This part replaces 914-0101. Price: $4.13 |
| 14 |
684-04350 |
Joint Block Assembly Price: $25.48 |
| 15 |
747-1201A |
Chute Crank Rod, .38 x 35 Price: $70.41 |
| 16 |
946-1108 |
CHUTE CABLE 62" This part replaces 746-1108. Price: $55.25 |
| 17 |
746P1109 |
CHUTE CABLE 62" W/CLIP This part replaces 746-1109. Price: $60.44 |
| 18 |
915-0138 |
Rolled Pin, 1/8 x .63 Price: $4.17 |
| 19 |
720-0201A |
Crank Knob Price: $9.62 |
| 20 |
726-0100 |
Push Cap This part replaces 926-0100. Price: $3.75 |
| 21 |
747-04400A |
Rod, .375 x 13.50 Price: $19.33 |
| 22 |
711-04741 |
Belt keeper Pin Price: $18.14 |
| 23 |
611-0132A-0637 |
Rod Assembly Price: $310.01 |
| 24 |
783-0880E-0637 |
RH - Support Plate Assembly This part replaces 783-0880D-0637. Price: $107.26 |
| 25 |
783-0879E-0637 |
LH - Support Plate Assembly This part replaces 783-0879D-0637. Price: $107.26 |
| 26 |
683-04150-0637 |
Lift Bracket Assembly Price: $73.03 |
| 27 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 28 |
710-0964A |
Hex Cap Screw, 5/8-18 x 1.31 Price: $10.02 |
| 29 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 30 |
714-04061 |
Quick Release Pin Price: $19.21 |
| 31 |
712-0386A |
Slotted Hex Nut, 5/8-18 Price: $6.99 |
| 32 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 912-3000. Price: $3.90 |
| 33 |
712-3022 |
Hex Lock Nut, 1/2-13 Price: $3.61 |
| 34 |
714-0470 |
Cotter Pin, 1/8 x 1.25 This part replaces 914-0470. Price: $3.90 |
| 35 |
714-04043 |
Cotter Pin, Bow Tie Price: $4.24 |
| 36 |
716-0102 |
Snap Ring This part replaces 916-0102. Price: $4.40 |
| 37 |
784-0402-0637 |
SKID PLATE Not Available Price: |
| 38 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 936-0272. Price: $4.37 |
| 39 |
736-0366 |
Flat Washer, .64 x 1.12 x .125 Price: $3.82 |
| 40 |
736-0452 |
Bell Washer, .396 x 1.14 x .095 This part replaces 936-0452. Price: $4.05 |
| 41 |
783-1014A-0637 |
Drive Mounting Bracket Price: $76.09 |
| 42 |
738-0234 |
Shoulder Screw, .5 x .29, 3/8-16 Price: $9.41 |
| 43 |
941-0170 |
Bearing, Flange w/Flats This part replaces 741-0192. Price: $17.84 |
| 44 |
756-1181A |
Drive Pulley, 7" Price: $99.41 |
| 45 |
747-1192 |
Rod, 1/2 x 11.55 Price: $44.07 |
| 46 |
783-0876 |
LINK Not Available Price: |
| 47 |
783-0877-0637 |
Link, 15.4 This part replaces 783-0877. Price: $76.72 |
| 48 |
783-0878B-0637 |
Link, 13.25 Price: $44.37 |
| 49 |
911-0332 |
Clevis Pin, .50 x .78 Price: $14.98 |
| 50 |
790-00110-0637 |
Snow Thrower Lift Bracket Price: $34.94 |
| 51 |
710-04460 |
Screw, self tapping, #10-24 This part replaces 01001864. Price: $3.95 |
| 52 |
710-3143 |
Pan Phillips Screw, #10-24 x .75 Price: $10.24 |
| 53 |
710-3180 |
Hex Cap Screw, 5/16-18 x 1.75 Price: $4.93 |
| 54 |
715-0114 |
Pin This part replaces 915-0114. Price: $8.68 |
| 55 |
720-0274 |
Handle Grip Price: $9.99 |
| 56 |
725-0157 |
Cable Tie Price: $3.46 |
| 57 |
932-0306A |
Compression Spring Price: $7.69 |
| 58 |
736-0140 |
Flat Washer, .385 x .62 x .063 This part replaces 936-0140. Price: $6.20 |
| 59 |
736-0400 |
Flat Wash. 1/4" I.D. This part replaces 936-0400. Price: $4.56 |
| 60 |
946-05201 |
LIFT CABLE This part replaces 746-1103A. Price: $64.53 |
| 61 |
747-1203 |
Lift Index Rod Price: $48.33 |
| 62 |
750-1221-0637 |
Lift Handle Tube Price: $245.11 |
| 63 |
05931A |
Bearing Housing, 1.85 ID Price: $9.73 |
| 64 |
703-2736-0637 |
Belt Cover Price: $29.12 |
| 65 |
710-0514 |
Hex Cap Screw, 3/8-16 x 1.0 Price: $3.78 |
| 66 |
710-3251 |
Socket Head Cap Screw Price: $5.50 |
| 67 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 68 |
714-0122 |
Square Key, 3/16 x .75 This part replaces 914-0122. Price: $3.07 |
| 69 |
714-0126 |
Key This part replaces 914-0126. Price: $4.05 |
| 70 |
917-1714B |
Right Angle Drive This part replaces 917-1714A. Price: $545.55 |
| 71 |
918-0691 |
Coupling Price: $149.83 |
| 72 |
941-0309 |
Flange Ball Bearing, .75 x 1.85 Price: $69.59 |
| 73 |
747-1257 |
Belt Keeper Rod Price: $19.12 |
| 74 |
712-3010 |
HEX NUT 5/16-18 This part replaces 912-3010. Price: $3.89 |
| 75 |
918-0411A |
Spindle Assembly This part replaces 618-0411. Price: $110.39 |
| 76 |
683-04605-0637 |
Pulley Mounting Bracket Price: $307.61 |
| 77 |
712-0266A |
JAM LOCK NUT This part replaces 912-0266. Price: $3.43 |
| 78 |
710-0347 |
Hex Cap Screw, 3/8-16 x 1.75 Price: $4.39 |
| 79 |
710-04511 |
Pin 5/16-18 Price: $30.43 |
| 80 |
710-1260A |
Carriage Bolt, 5/16-18 x .62 Price: $3.34 |
| 81 |
711-0310 |
Clevis Pin This part replaces 911-0310. Price: $9.46 |
| 82 |
911-1000 |
Belt Keeper Pin Price: $9.62 |
| 83 |
712-04064 |
Nylon Hex Lock Nut, 1/4-20 Price: $3.64 |
| 84 |
712-3009 |
Hex Lock Nut, 5/16-18 This part replaces 912-3009. Price: $5.99 |
| 85 |
714-0145 |
Click Pin This part replaces 914-0145. Price: $4.42 |
| 86 |
714-0147 |
Internal Cotter Pin, .125 x 1.75 Price: $4.20 |
| 87 |
930-3000 |
Reflector Price: $15.16 |
| 88 |
732-04237 |
Extension Spring .50 x 12.00 Price: $21.55 |
| 89 |
932-0594A |
Extension Spring .91 x 7.33 Price: $13.74 |
| 90 |
936-0192 |
Flat Washer, .531 x .93 x .09 Price: $3.75 |
| 91 |
736-3072 |
Flat Washer, .38 x .93 x .11 Price: $4.11 |
| 92 |
938-0145 |
Shoulder Screw, 3/8-16 Price: $6.01 |
| 93 |
938-0347 |
Shoulder Spacer, .625 x .169 Price: $8.93 |
| 94 |
749-1103-0637 |
LH Support Tube Price: $46.53 |
| 95 |
749-1104-0637 |
RH Support Tube Price: $46.53 |
| 96 |
954-3053 |
V-Belt Price: $50.36 |
| 97 |
954-0498 |
V-Belt Price: $40.96 |
| 98 |
756-0627D |
Idler Pulley 3.50 dia. Price: $28.58 |
| 99 |
783-1291A-0637 |
IDLER BRACKET This part replaces 783-1291-0637. Price: $11.65 |
| 100 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 101 |
710-3005 |
Hex Cap Screw, 3/8-16 x 1.25 Price: $3.61 |
| 102 |
732-0978 |
Extension Spring, .620 x 5.62 Not Available Price: |
| 103 |
736-3010 |
Flat Washer, .407 x .812 x .135 Price: $4.02 |
| 104 |
712-3006 |
HEX NUT Price: $4.05 |
| 105 |
715-04095 |
Spirol Pin, .156 x .875 Price: $4.39 |
| 106 |
710-3022 |
Hex Cap Screw, 3/8-16 x 2.75 Price: $4.09 |
| 107 |
710-3144 |
Hex Cap Screw, 3/8-16 x 2.00 Price: $4.02 |
| 108 |
756-0487 |
Idler pulley, 4" Diameter Price: $45.43 |
| 109 |
784-5727-0637 |
Idler Pivot Arm Price: $64.63 |
