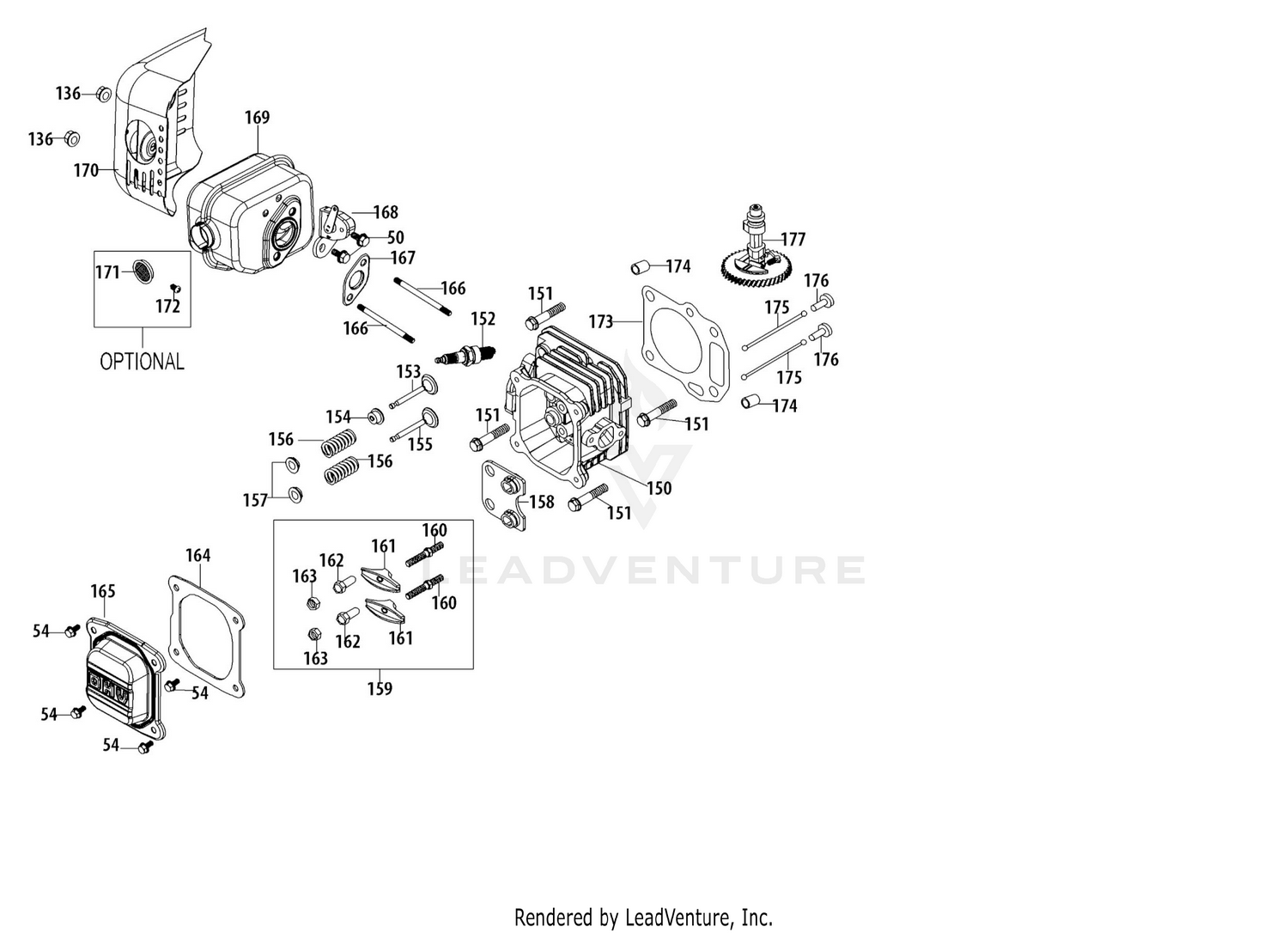

| Ref | Part Number | Description |
|---|
| 50 |
710-04915 |
Bolt M6X12 Multi-Purpose Price: $3.82 |
| 54 |
710-04916 |
Bolt M6X14 Multi-Purpose Price: $3.86 |
| 136 |
712-05015 |
Nut M6X10Mm Starter/Carb/Muff Price: $5.78 |
| 150 |
951-14639 |
CYLINDER HEAD This part replaces 751-14639. Price: $108.54 |
| 151 |
910-06185 |
BOLT-M8 x 54 This part replaces 710-06185. Price: $5.88 |
| 152 |
951-14437 |
Spark Plug/F5Rtc Price: $7.34 |
| 153 |
951-14640A |
INTAKE VALVE This part replaces 951-14640. Price: $8.71 |
| 154 |
921-04237A |
INTAKE VALVE SEAL This part replaces 721-04237. Price: $7.20 |
| 155 |
951-14641 |
Exhaust Valve Price: $8.71 |
| 156 |
751P12004A |
VALVE SPRING This part replaces 951-12004. Price: $1.74 |
| 157 |
951-11977 |
Valve Spring Retainer Price: $3.60 |
| 158 |
951-11687A |
PUSH ROD GUIDE This part replaces 951-11687. Price: $6.12 |
| 159 |
951-11606A |
ROCKER ARM This part replaces 951-11606. Price: $29.12 |
| 160 |
710-04902 |
Rocker Arm Stud Price: $5.94 |
| 161 |
951-12001 |
Rocker Arm Price: $6.65 |
| 162 |
751-11123 |
Fulcrum Nut Price: $9.09 |
| 163 |
751-11124 |
Jam Nut Price: $8.18 |
| 164 |
951-11551 |
VALVE COVER GASKET Price: $9.14 |
| 165 |
951-14609A |
VALVE COVER This part replaces 951-14609. Price: $14.42 |
| 166 |
710-05094 |
Muffler Stud M6X95 Price: $3.78 |
| 167 |
951-14427A |
MUFFLER GASKET This part replaces 951-14427. Price: $6.38 |
| 168 |
951-14428A |
CHOKE TEMP CONTROL THERMOSTAT This part replaces 951-14428. Price: $36.29 |
| 169 |
951-14429A |
MUFFLER ASSEMBLY This part replaces 951-14429. Price: $55.88 |
| 170 |
951-15072 |
MUFFLER SHIELD This part replaces 951-14430. Price: $22.38 |
| 171 |
951-10351A |
SPARK ARRESTOR This part replaces 951-10351. Price: $48.91 |
| 172 |
710-04983 |
Spark Arrestor Screw Price: $3.65 |
| 173 |
951-14431 |
Cylinder Head Gasket Price: $14.44 |
| 174 |
715-04108 |
Cylinder Head Dowel Pin ?10?16 Price: $3.65 |
| 175 |
747P04862A |
PUSH ROD This part replaces 747-04862. Price: $5.10 |
| 176 |
951-14432A |
TAPPET This part replaces 951-14432. Price: $7.49 |
| 177 |
951-11741 |
Camshaft Assembly Price: $57.97 |
