| Ref | Part Number | Description |
|---|
| 1 |
304-46 |
DRAINCOCK Price: $7.55 |

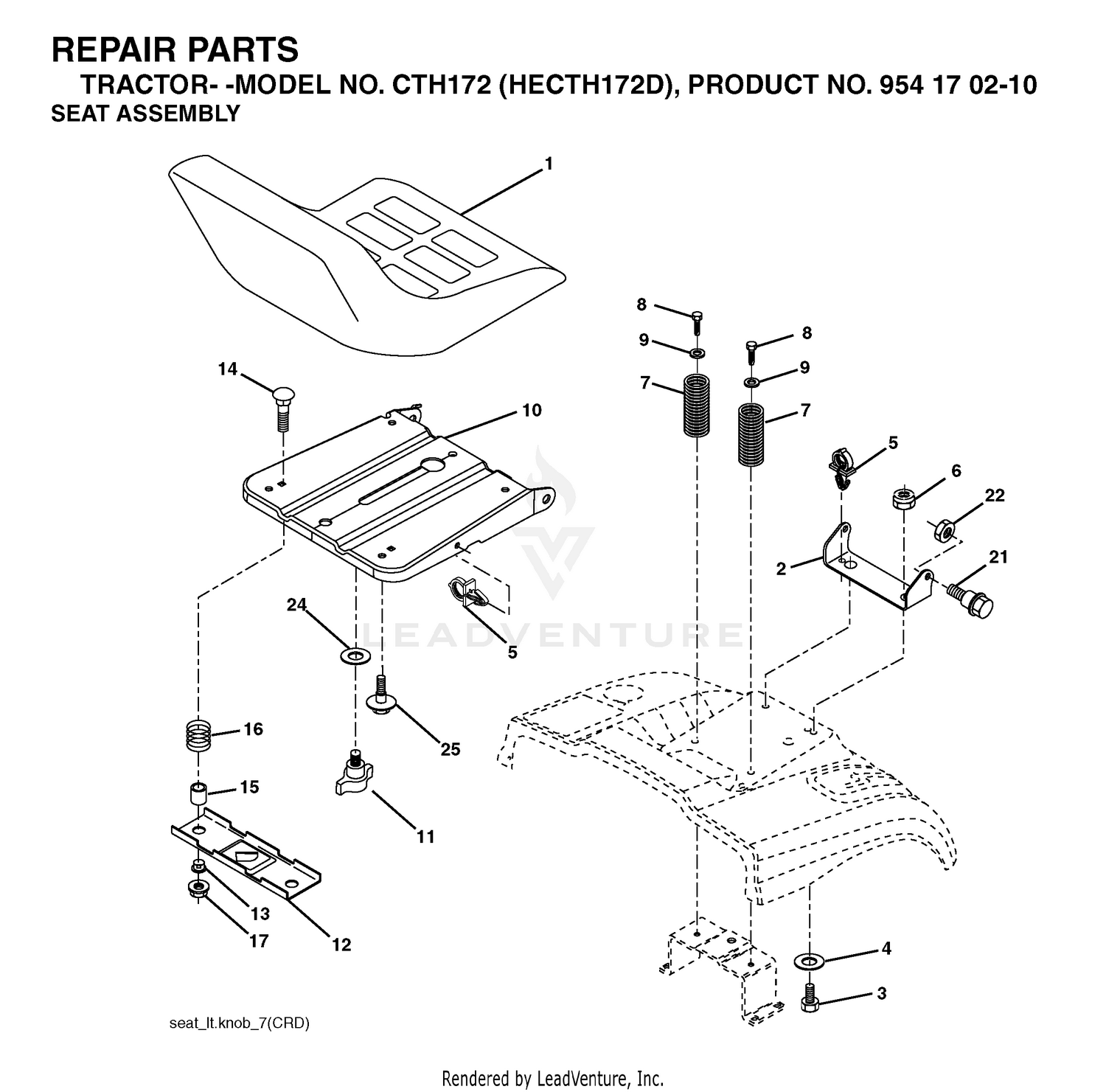

| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532184995. Price: $219.99 |
| 2 |
32104-116 |
SCREW-HWHTF Price: $0.55 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
32128-44 |
NUT Price: $2.69 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
119-2028 |
RADIATOR AND OIL COOLER ASM Price: $1,787.22 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
121-3556-0P |
SHROUD-FAN, UPPER This part replaces 121-3556-03. Price: $127.39 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
121-3552-0P |
SHROUD-FAN, LOWER This part replaces 121-3552-03. Price: $184.71 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 9 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 10 |
120-3530-0P |
BRACKET-RADIATOR, BOTTOM This part replaces 120-3530-03. Price: $78.45 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 12 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
121-3557-0P |
BRACKET-RESEVOIR This part replaces 121-3557-03. Price: $26.66 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 14 |
95-8702-0P |
SHIELD-RADIATOR, LOWER This part replaces 95-8702-03. Price: $47.95 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 15 |
99-3497 |
MAGNET Price: $20.22 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
121-3558 |
HOSE-RADIATOR, UPPER Price: $46.41 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
120-3399 |
HOSE-RADIATOR, LOWER Price: $41.62 |
| 19 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 20 |
340-9 |
FITTING-HYD, STRAIGHT Price: $67.47 |
| 21 |
340-142 |
FITTING-ELBOW-90 Price: $65.90 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 22 |
92-7536 |
HOSE-HYD Price: $196.76 |
| 23 |
99-7435 |
RELAY Price: $32.43 |
| 24 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
109-0274 |
HOSE-FUEL Price: $12.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 26 |
121-3609 |
TUBE-HYD This part replaces 121-3568. Price: $143.00 |
| 27 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 28 |
108-0638 |
BOTTLE-OVERFLOW This part replaces 104-9318. Price: $33.20 |
| 29 |
93-6681 |
DECAL-WARNING, FAN Price: $11.51 |
| 30 |
32128-20 |
NUT-HF Price: $0.99 |
| 31 |
120-3529-03 |
BRACKET-RADIATOR, TOP Price: $62.39 |
| 32 |
120-3531-0P |
BRACKET-RADIATOR, LH This part replaces 120-3531-03. Price: $54.92 |
| 33 |
120-3532-0P |
BRACKET-RADIATOR, RH This part replaces 120-3532-03. Price: $54.92 |
| 40 |
340-66 |
FITTING-STRAIGHT Price: $19.11 |
