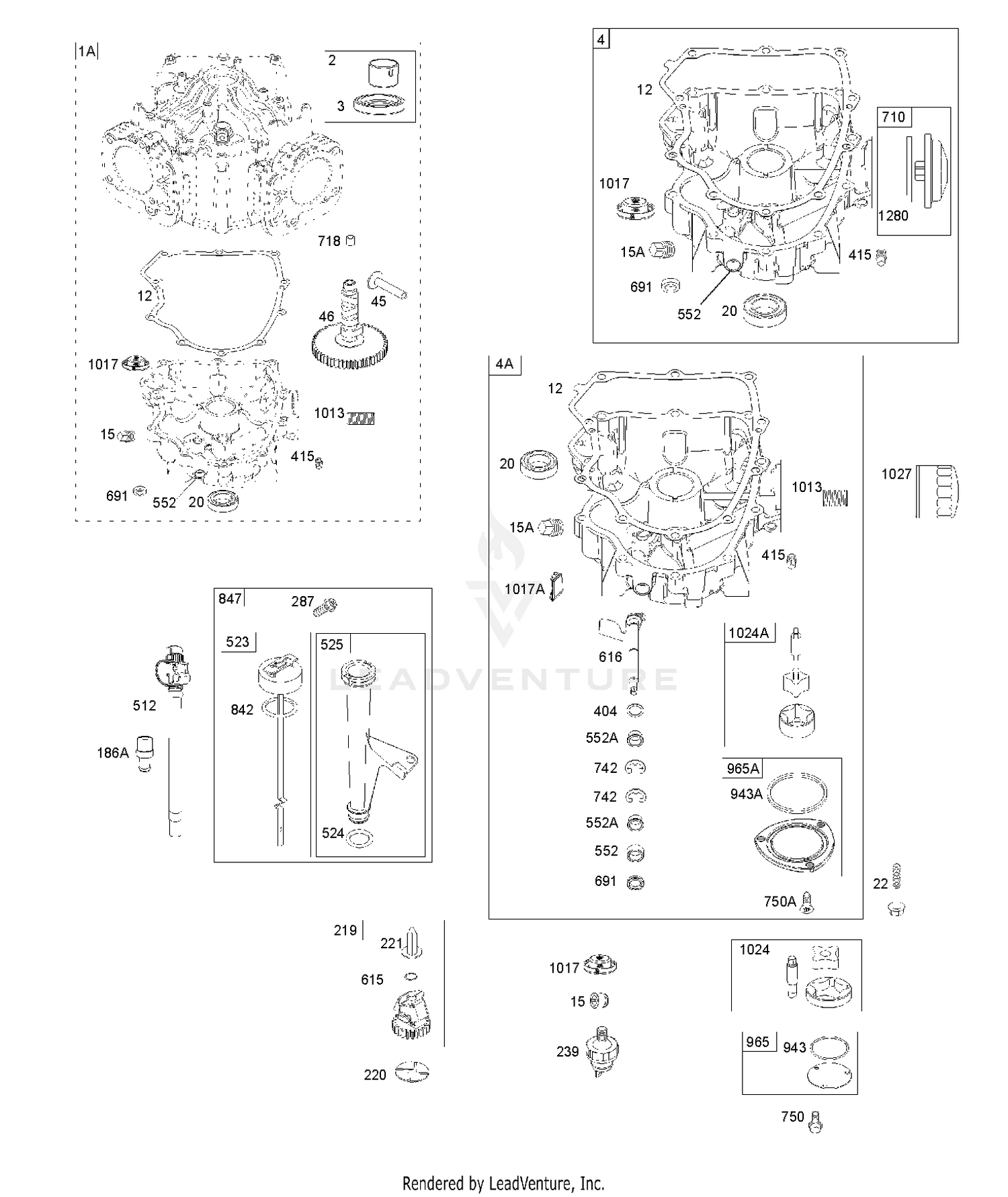

ENGINE SUMP, OIL PUMP, DIPSTICK/TUBE ASSEMBLY
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-4752 | CASE-GEAR, BEVEL Price: $237.26 |
| 2 | 110-4754 | SEAL-OIL Price: $10.36 |
| 3 | 104-2378 | BUSHING Price: $40.73 |
| 4 | 106-1069 | O-RING Price: $5.20 |
| 5 | 104-2373 | KNUCKLE Price: $58.69 |
| 6 | 104-2374 | BOLT Price: $6.33 |
| 7 | 100-3768 | LH STEERING ARM ASM Price: $207.28 |
| 8 | 100-3766 | RH STEERING ARM ASM Price: $207.28 |
| 10 | 95-7547 | SHIM 0.1 Price: $2.53 |
| 10 | 95-7548 | SHIM 0.2 Price: $3.52 |
| 10 | 95-7549 | SHIM 0.3 Price: $3.82 |
| 11 | 99-7597 | PIN-DOWEL Price: $3.74 |
| 12 | 104-2375 | BOLT Price: $18.54 |
| 12 | 576317001 | Gaskets Price: $8.99 |
| 13 | 99-7599 | BOLT Price: $3.17 |
| 14 | 99-7525 | STUD Price: $7.03 |
| 15 | 99-7526 | NUT Price: $1.29 |
| 16 | 99-7527 | WASHER-SPRING Price: $1.02 |
| 18 | 106-1141 | STEERING TIE ROD ASM Price: $642.02 |
| 45 | 576300101 | Valves Price: $6.99 |
| 46 | 587834701 | NEEDS DESCRIPTION Price: $84.99 |
| 219 | 576324401 | Gears Price: $24.99 |
| 221 | 585091501 | NEEDS DESCRIPTION Price: $7.99 |
| 239 | 598673422 | Switches Price: $22.99 |
| 415 | 576327901 | Plugs Price: $3.99 |
| 512 | 585097301 | NEEDS DESCRIPTION Price: $14.99 |
| 523 | 576302601 | Dipsticks Price: $17.99 |
| 524 | 576302401 | Seals Price: $3.99 |
| 552 | 576333501 | Bushings Price: $4.99 |
| 552A | 576297901 | Bushings Price: $5.99 |
| 615 | 576318101 | Retainers Price: $2.99 |
| 616 | 576302901 | Crankcases Price: $17.99 |
| 691 | 576320601 | Seals Price: $4.99 |
| 718 | 585078101 | NEEDS DESCRIPTION Price: $3.99 |
| 742 | 576297401 | Retainers Price: $2.99 |
| 847 | 585081701 | NEEDS DESCRIPTION Price: $22.99 |
| 1013 | 576299101 | Nipple Price: $4.99 |
| 1027 | 586458801 | Oil Filters Price: $11.99 |
