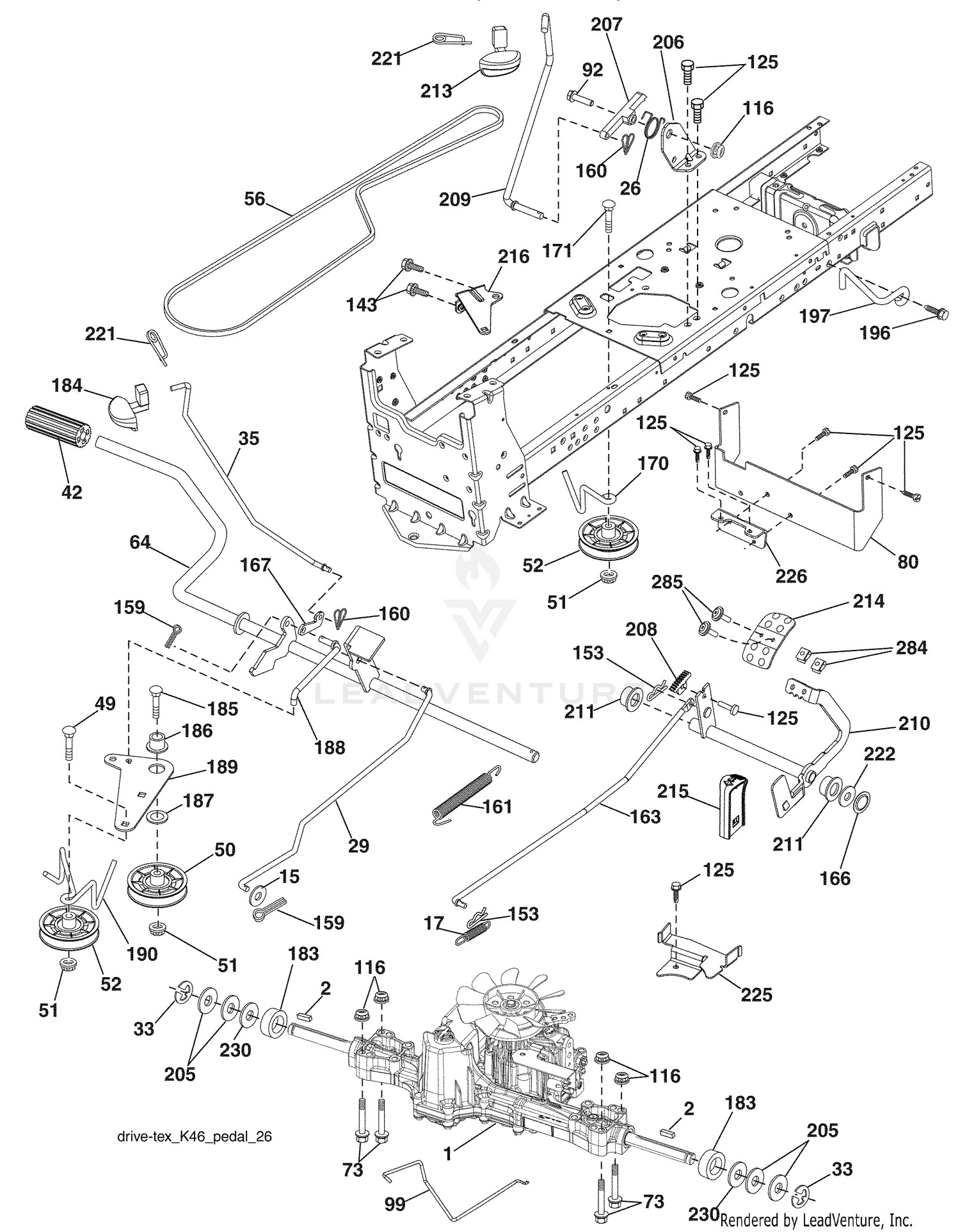

| Ref | Part Number | Description |
|---|
| 1 |
40-4010 |
ROLLER Price: $10.88 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
71-2180 |
BUSHING Price: $9.65 |
| 3 |
71-2190 |
PIN Price: $39.89 |
| 4 |
71-2290 |
FORK AND TRIPLE BEARING ASM Price: $199.01 |
| 5 |
40-4090 |
RIVET Price: $2.50 |
| 6 |
40-4080 |
U-TRACK Price: $16.69 |
| 7 |
40-4120 |
RUBBER Price: $5.47 |
| 8 |
71-2310 |
DISCONTINUED Price: Call Us |
| 9 |
71-2300 |
BUMPER-RUBBER Price: $17.78 |
| 10 |
71-2280 |
BAND-INDICATOR, WEIGHT Price: $18.88 |
| 11 |
40-4150 |
ROLLER Price: $7.98 |
| 12 |
40-4160 |
GUIDE-SLEEVE Price: $4.51 |
| 13 |
71-2210 |
DISCONTINUED Price: Call Us |
| 14 |
71-2230 |
RING-SNAP Price: $2.29 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 15 |
71-2240 |
KNOB ASM Price: $80.40 |
| 16 |
32121-23 |
PIN-ROLL This part replaces 71-2220. Price: $1.33 |
| 17 |
40-4230 |
PLUG Price: $6.02 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 18 |
71-2250 |
BRACKET-SPRING Price: $28.69 |
| 19 |
71-2330 |
RING-SNAP Price: $1.25 |
| 20 |
71-2340 |
ABSORBER-SHOCK Price: $317.85 |
| 21 |
71-2320 |
PIN Price: $7.60 |
| 22 |
71-2170 |
PIN Price: $18.37 |
| 23 |
71-2270 |
NUT-SPECIAL Price: $3.05 |
| 24 |
1-613235 |
WASHER This part replaces 40-4070. Price: $1.49 |
| 25 |
40-4310 |
BEARING-THRUST, NEEDLE Price: $36.99 |
| 26 |
40-4060 |
DISCONTINUED Price: Call Us |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
71-2260 |
SPRING Price: $84.32 |
| 28 |
40-4340 |
SPRING-COIL Price: $13.82 |
| 29 |
40-4350 |
SPRING-COIL Price: $6.64 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
40-4360 |
PLATE Price: $6.60 |
| 31 |
40-4370 |
BOLT Price: $1.05 |
| 32 |
40-4380 |
DISCONTINUED Price: Call Us |
| 33 |
71-2200 |
SWING ARM ASM Price: $366.84 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 80 |
532412170 |
STRAP TORQUE.ASM.K46/18"TEX Price: $12.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods This part replaces 532401034. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532416863 |
PEDAL.FORWARD.HUSQVARNA.DEALER Price: $32.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 284 |
532417693 |
NUT.U-CHNL.1/4-20.550DP.350PNL Price: $3.99 |
