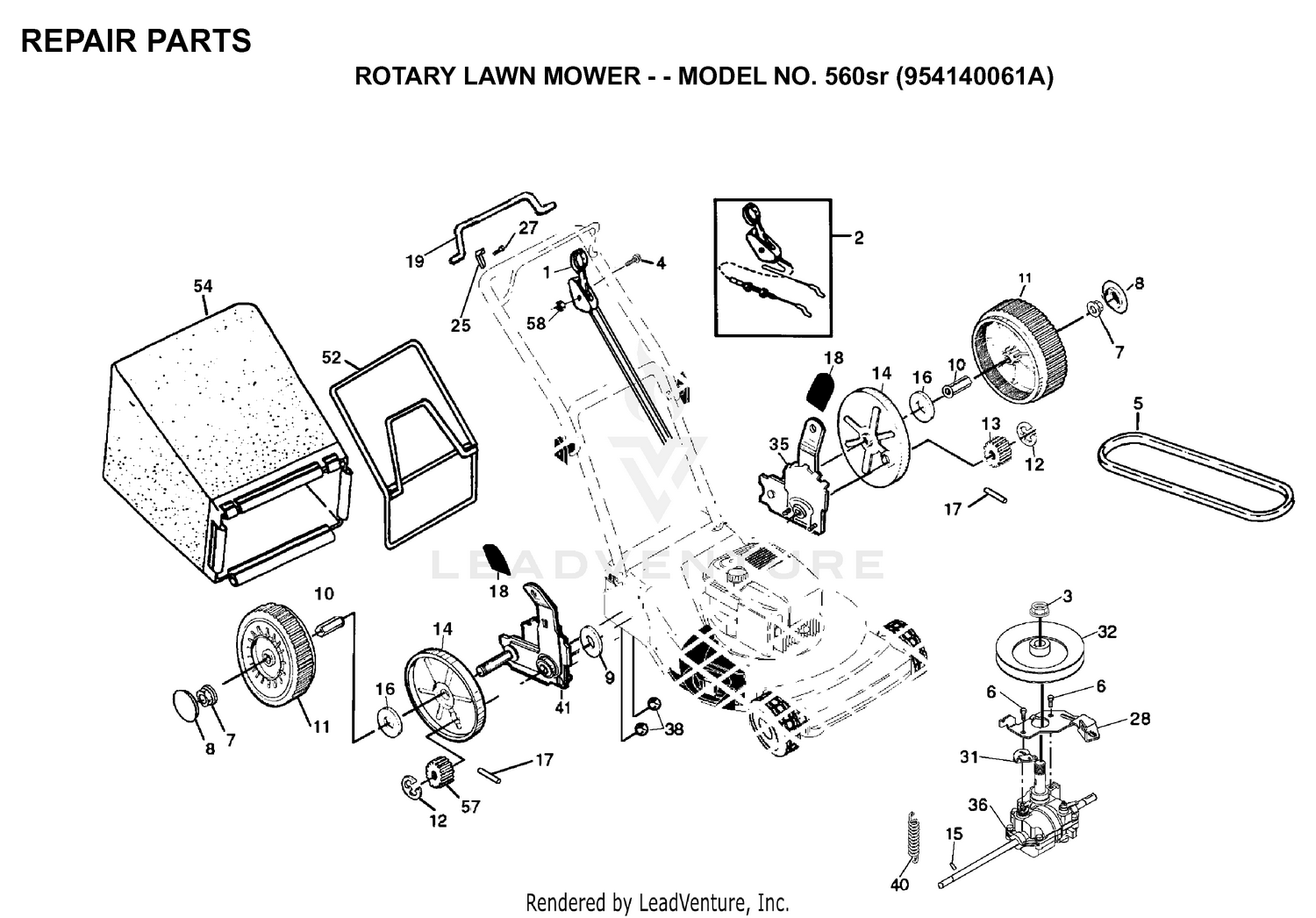

| Ref | Part Number | Description |
|---|
| 1 |
532163154 |
KIT.DRIVE.CONTROL This part replaces 532162716. Price: $64.99 |
| 2 |
532163154 |
KIT.DRIVE.CONTROL This part replaces 532147715. Price: $64.99 |
| 3 |
873031000 |
METRIC NUT Price: $1.99 |
| 4 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $4.99 |
| 5 |
532150327 |
DRIVE BELT Price: $17.99 |
| 6 |
532146315 |
SCREW Price: $8.99 |
| 7 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 8 |
532157008 |
HUBCAP.8".GREY Price: $3.99 |
| 9 |
532057079 |
THRUST WASHER Price: $1.99 |
| 10 |
532088446 |
BUSHING PM Price: $2.16 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532165097 |
PINION.DRIVE.LH This part replaces 532850017. Price: $7.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532088080. Price: $5.99 |
| 15 |
532145354 |
PIN.SPRING.THRUST Price: $3.99 |
| 17 |
532164795 |
DRIVE PAWL This part replaces 532851980. Price: $2.99 |
| 18 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 19 |
532162715 |
DRIVE CONTROL BAR Price: $4.99 |
| 25 |
532161462 |
BRACKET.DOWNSTOP This part replaces 532162868. Price: $3.99 |
| 27 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 28 |
532153822 |
BRACKET Price: $22.99 |
| 31 |
532153823 |
ARM Price: $9.99 |
| 32 |
532150326 |
PULLEY Price: $5.99 |
| 36 |
532150330 |
TRANSMISSION Price: $231.72 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 40 |
532144902 |
SPRING Price: $2.42 |
| 52 |
532088614 |
CATCHER.FRAME.WALK Price: $44.99 |
| 54 |
532134048 |
This part replaces 532800386. Price: $36.95 |
| 57 |
532165096 |
DRIVE PINION RH This part replaces 532850016. Price: $6.99 |
| 58 |
532191730 |
NUT.HEX.FLANGE.1/4 This part replaces 532751152. Price: $3.99 |
