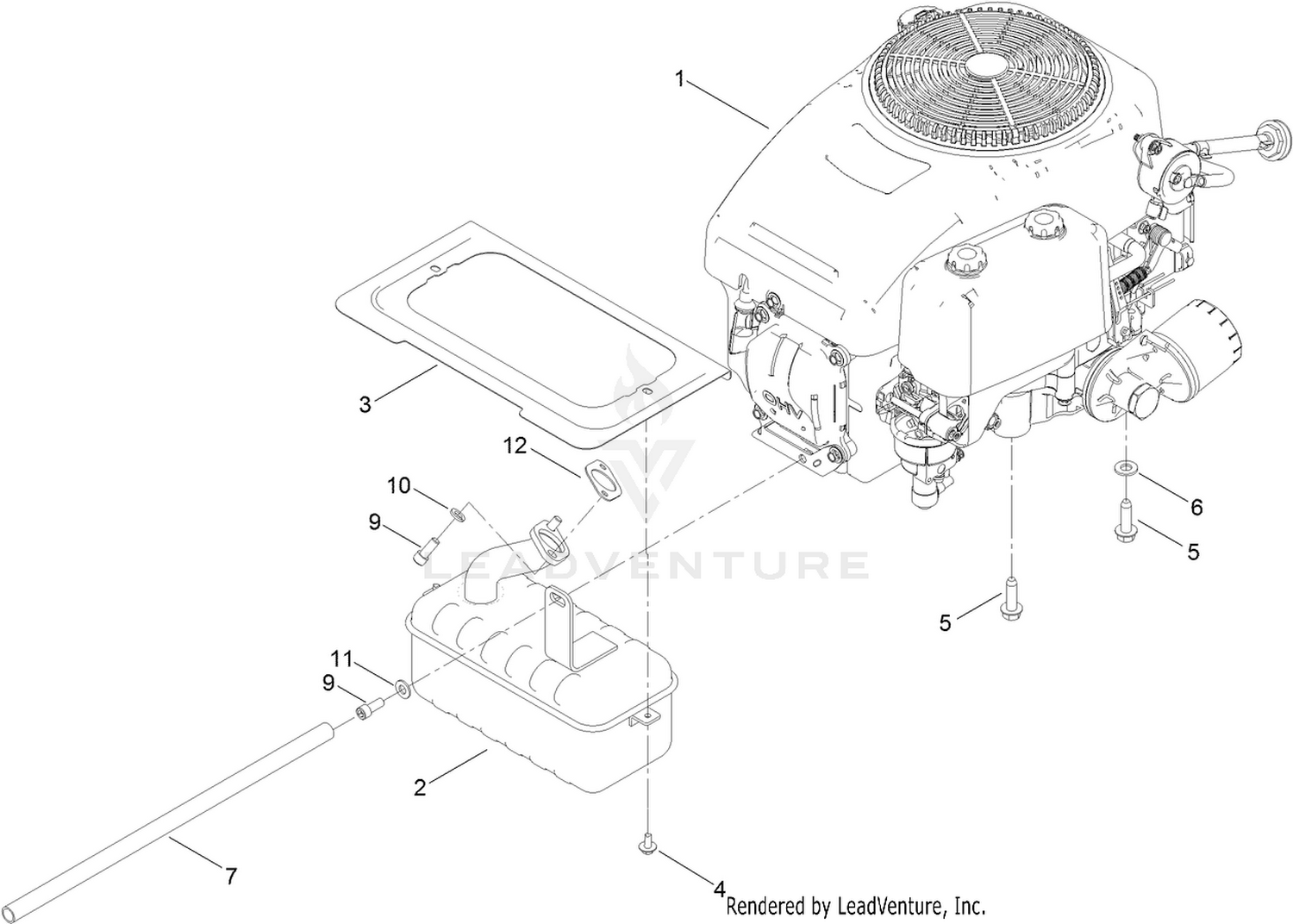

Engine and Muffler Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 133-9973 | ENGINE-LC1P92F-1 This part replaces 127-9358. Price: $1,259.06 |
| 2 | 130-0691 | MUFFLER Price: $80.05 |
| 3 | 131-1071-03 | SHIELD-HEAT Price: $8.40 |
| 4 | 46-8560 | SCREW-HHFTF Price: $1.79 |
| 5 | 32144-109 | SCREW-THD Price: $1.29 |
| 6 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 7 | 106-7022 | TUBE-DRAIN, OIL Price: $8.99 |
| 9 | 3274-10 | SCREW-HSH Price: $0.47 |
| 10 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 11 | 3256-23 | WASHER-PLAIN Price: $0.28 |
