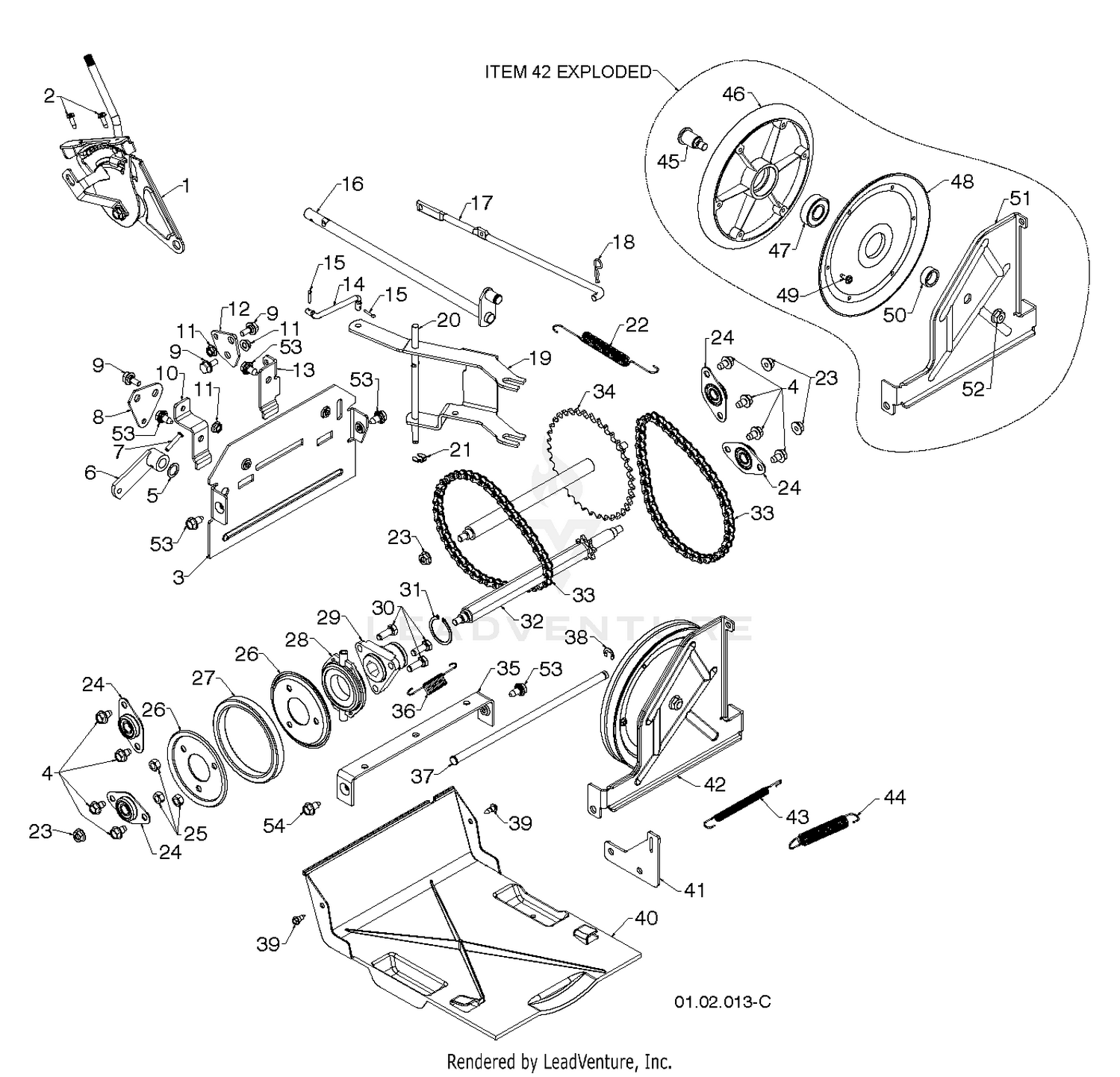

| Ref | Part Number | Description |
|---|
| 1 |
532429667 |
KIT.CONTROL.SPEED.SELECTOR.SNO This part replaces 532198875. Price: $66.99 |
| 1 |
94-2690 |
FILTER-FUEL Price: $4.69 |
| 2 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 2 |
817501010 |
SCREW #10-24 X 5/8 Price: $3.99 |
| 3 |
109-0275 |
HOSE-FUEL This part replaces 83-2041. Price: $12.99 |
| 3 |
532437074 |
Price: $17.99 |
| 4 |
115-5304 |
CAP-FUEL This part replaces 93-7170. Price: $26.87 |
| 4 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 5 |
105-8266 |
TANK-FUEL This part replaces 92-7189. Price: $466.98 |
| 5 |
532057079 |
THRUST WASHER Price: $2.99 |
| 6 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 6 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 7 |
532198580 |
CLEVIS PIN Price: $3.99 |
| 7 |
63-8410 |
WASHER Price: $1.76 |
| 8 |
2412-41 |
CLAMP-R Price: $4.82 |
| 8 |
532415450 |
PLATE.SHIFTER.BZP Price: $2.99 |
| 9 |
323-6 |
SCREW-HH Price: $0.66 |
| 9 |
532402881 |
BOLT.SHOULDER.3/X.25 Price: $2.99 |
| 10 |
33113-012 |
SCREW-HH Price: $0.71 |
| 10 |
532415433 |
BRACKET.SHIFTER.PLATE.BZP Price: $2.99 |
| 11 |
2412-94 |
CLAMP Price: $2.31 |
| 11 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 12 |
532415435 |
PLATE.CLUTCH.BZP Price: $2.99 |
| 12 |
83-2200 |
NUT Price: $9.81 |
| 13 |
3256-63 |
WASHER-FLAT Price: $0.25 |
| 13 |
532416864 |
BRACKET.CLUTCH.PLATE.BZP Price: $2.99 |
| 14 |
109-0304 |
HOSE-FUEL This part replaces 83-2040. Price: $1.99 |
| 14 |
532187101 |
LINK, SPEED CONTROL Price: $14.99 |
| 15 |
532700279 |
RETAINER CLIP Price: $3.99 |
| 15 |
83-1390 |
VALVE-SHUT-OFF, FUEL Price: $55.01 |
| 16 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 16 |
532429668 |
KIT.CONTROL.SHAFT.SNO This part replaces 532427542. Price: $28.99 |
| 17 |
532402568 |
ROD.CLUTCH.SWING.PLATE Price: $9.99 |
| 17 |
56-2230 |
HOSE-FUEL Price: $3.66 |
| 18 |
532169675 |
SPRING RETAINER Price: $3.99 |
| 19 |
581422501 |
BRACKET.YOKE.SHIFTER.BLACK This part replaces 532401732. Price: $17.99 |
| 20 |
532402310 |
ROD.PIVOT.SHIFTER Price: $3.99 |
| 21 |
812000036 |
KLIP RING TI Price: $3.99 |
| 22 |
532402878 |
SPRING.TRACTION.RETURN Price: $2.99 |
| 23 |
532751153 |
NUT, LOCK 5/16-18 Price: $1.99 |
| 24 |
532408981 |
BEARING FLANGE BALL Price: $5.99 |
| 25 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 26 |
532435789 |
RUBBER WHEEL PLATE This part replaces 532199509. Price: $6.99 |
| 27 |
532440620 |
RING.RUBBER.2-STG.SNW.DRV.WH Price: $12.99 |
| 28 |
532175344 |
TRUNNION BEARING ASSY Price: $19.99 |
| 29 |
532178613 |
HUB, RUBBER WHEEL Price: $19.99 |
| 30 |
874760514 |
BOLT Price: $3.99 |
| 31 |
812000012 |
RETAINING RING Price: $2.99 |
| 32 |
532402187 |
SHAFT.HEX.W/SPOCKET Price: $14.99 |
| 33 |
532401619 |
CHAIN.DRIVE.SNOWTHROWER.#420 Price: $11.99 |
| 34 |
532437303 |
SPROCKET.WELDMENT Price: $28.99 |
| 35 |
532435955 |
BRACKET.YOKE.SHIFTER.BLACK This part replaces 532415429. Price: $6.99 |
| 36 |
532180135 |
SPRING, BIAS Price: $2.99 |
| 37 |
532402652 |
ROD.PIVOT.SWING.PLATE Price: $12.99 |
| 38 |
532428288 |
E-RING.RETAINER.REINFORCED.375 Price: $2.99 |
| 39 |
532184471 |
SCREW, HEX HEAD, TAPPING Price: $2.99 |
| 40 |
532410877 |
PAN.BOTTOM.PLASTIC Price: $17.99 |
| 41 |
532416682 |
BRACKET.TRACTION.SPRING. Price: $3.99 |
| 42 |
532402689 |
PULLEY.PLATE.ASM.DRIVE Price: $77.99 |
| 43 |
532414557 |
SPRING.TRACTION.IDLER Price: $2.99 |
| 44 |
532178828 |
SPRING, BRAKE Price: $2.99 |
| 45 |
532402504 |
SHAFT.FRICTION.PULLEY.SNOW Price: $7.99 |
| 46 |
532402689 |
PULLEY.PLATE.ASM.DRIVE This part replaces 532401820. Price: $77.99 |
| 47 |
532198791 |
BEARING Price: $11.99 |
| 48 |
532402393 |
PULLEY.HALF.TRACTION Price: $59.99 |
| 49 |
817541008 |
SCREW Price: $2.99 |
| 50 |
532402511 |
SPACER BEARING Price: $2.99 |
| 51 |
532422941 |
SWINGPLATE Price: $7.99 |
| 52 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $2.69 |
| 53 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $2.49 |
