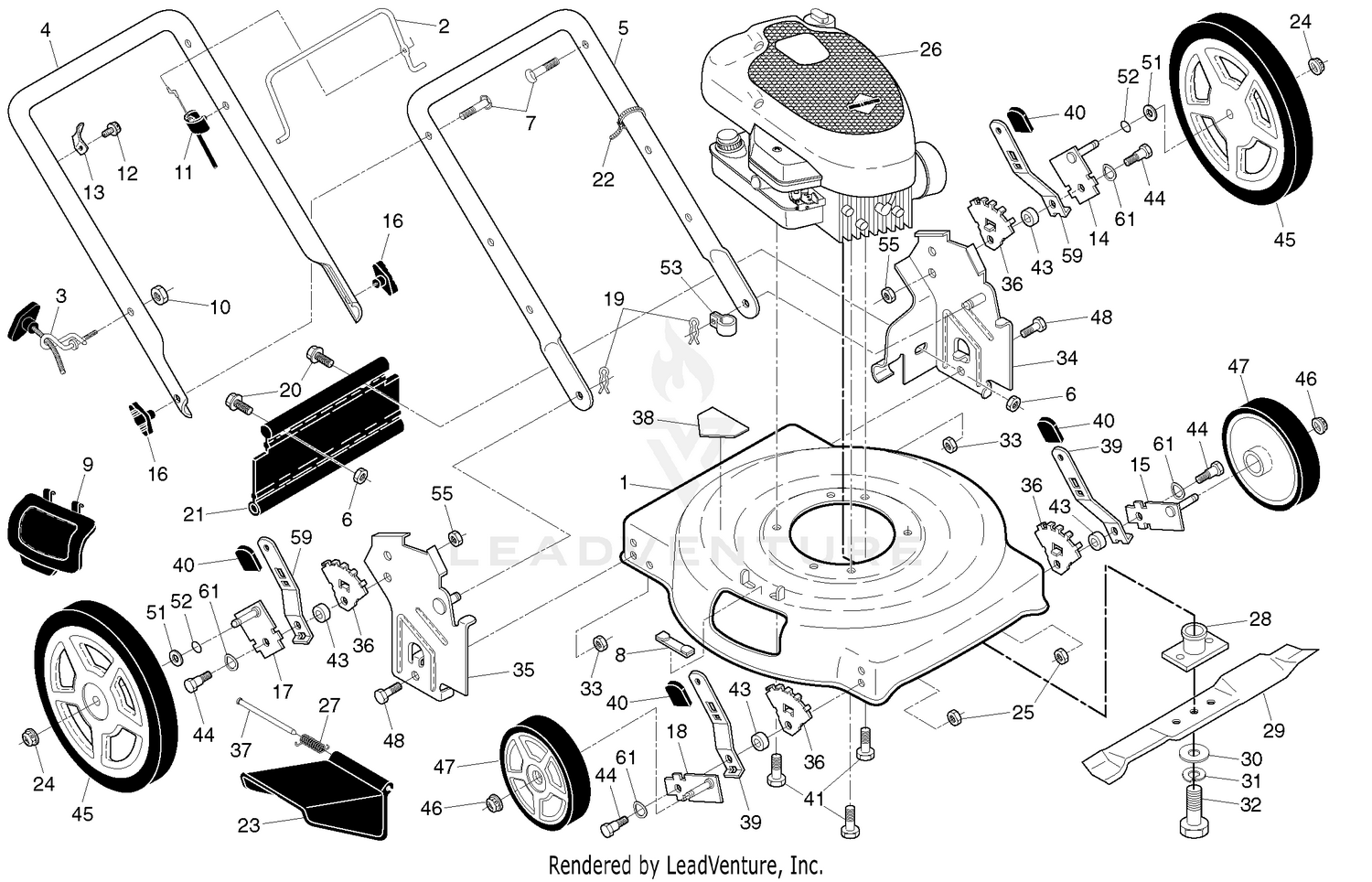

| Ref | Part Number | Description |
|---|
| 1 |
98-7734 |
STARTER ASM Price: $608.87 |
| 2 |
194177X421 |
Control Bar Price: Call Us |
| 2 |
98-7735 |
STUD Price: $1.36 |
| 3 |
194788 |
Rope Guide Price: Call Us |
| 3 |
98-7736 |
BOLT Price: $1.66 |
| 4 |
194179X479 |
Upper Handle Price: Call Us |
| 4 |
99-7526 |
NUT This part replaces 98-7737. Price: $1.29 |
| 5 |
169708X479 |
Lower Handle Price: Call Us |
| 5 |
98-7738 |
WASHER-SPRING Price: $0.24 |
| 6 |
73800400 |
Locknut, Hex 1/4-20 Price: Call Us |
| 6 |
98-7739 |
NUT Price: $1.08 |
| 7 |
191574 |
Handle Bolt 5/16-18 Price: Call Us |
| 8 |
161622 |
Clip, Closeout Price: Call Us |
| 9 |
160830 |
Mulcher Plate Price: Call Us |
| 10 |
132004 |
Nut, Hex 1/4-20 Price: Call Us |
| 11 |
183281 |
Engine Zone Control Cable Price: Call Us |
| 12 |
750634 |
Hex Washer Head Screw #10-24 x 1/2 Price: Call Us |
| 13 |
429930X004 |
Up-Stop Bracket Price: Call Us |
| 14 |
401176X004 |
Axle Arm Assembly, Rear, LH Price: Call Us |
| 15 |
401174X004 |
Axle Arm Assembly, Front, LH Price: Call Us |
| 16 |
189713X428 |
Handle Knob Price: Call Us |
| 17 |
401177X004 |
Axle Arm Assembly, Rear, RH Price: Call Us |
| 18 |
401175X004 |
Axle Arm Assembly, Front, RH Price: Call Us |
| 19 |
51793 |
Hairpin Cotter Price: Call Us |
| 20 |
74760412 |
Screw, Hex Cap Head 1/4-20 Price: Call Us |
| 21 |
413160 |
Rear Deflector Price: Call Us |
| 22 |
664-26 |
Wire Tie Price: Call Us |
| 23 |
160831 |
Discharge Guard Price: Call Us |
| 24 |
409149 |
Nut, Hex, Flangelock 3/8-16 Price: Call Us |
| 25 |
426589 |
Nut, Hex, Flangelock 5/16-18 Price: Call Us |
| 27 |
408585 |
Torsion Spring Price: Call Us |
| 28 |
851514 |
Blade Adapter Price: Call Us |
| 30 |
851074 |
Hardened Washer Price: Call Us |
| 31 |
850263 |
Helical Lockwasher 3/8 Price: Call Us |
| 32 |
851084 |
Screw, Hex Head, Grade 8, 3/8-24 x 1-3/8 Price: Call Us |
| 33 |
73800500 |
Nut, Hex, Nylock 5/16-18 Price: Call Us |
| 34 |
193083X479 |
Wheel Bracket Support, LH Price: Call Us |
| 35 |
193082X479 |
Wheel Bracket Support, RH Price: Call Us |
| 36 |
407494X005 |
Wheel Bracket Adjuster Price: Call Us |
| 37 |
160833 |
Hinge Rod Price: Call Us |
| 38 |
404763 |
Danger Decal Price: Call Us |
| 39 |
401621X004 |
Selector Spring, Front Price: Call Us |
| 40 |
170143 |
Selector Knob Price: Call Us |
| 41 |
150406 |
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1 Price: Call Us |
| 43 |
401629 |
Spacer Price: Call Us |
| 44 |
401638 |
Shoulder Bolt 5/16-18 Price: Call Us |
| 45 |
193926X428 |
Wheel & Tire Assembly, Rear, 12" Price: Call Us |
| 46 |
409148 |
Nut, Hex, Flangelock 3/8-16 Price: Call Us |
| 47 |
193931X428 |
Wheel & Tire Assembly, Front, 7" Price: Call Us |
| 48 |
74760514 |
Bolt, Hex Head 5/16-18 Price: Call Us |
| 51 |
88348 |
Washer, Flat 3/8 Price: Call Us |
| 52 |
197480 |
O-Ring Price: Call Us |
| 53 |
197991 |
Clip, Cable Price: Call Us |
| 55 |
751153 |
Nut, Hex Price: Call Us |
| 59 |
401624X004 |
Selector Spring, Rear Price: Call Us |
| 61 |
193732 |
Operator's Manual, English Price: Call Us |
| 61 |
193734 |
Operator's Manual, French Price: Call Us |
| 61 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
