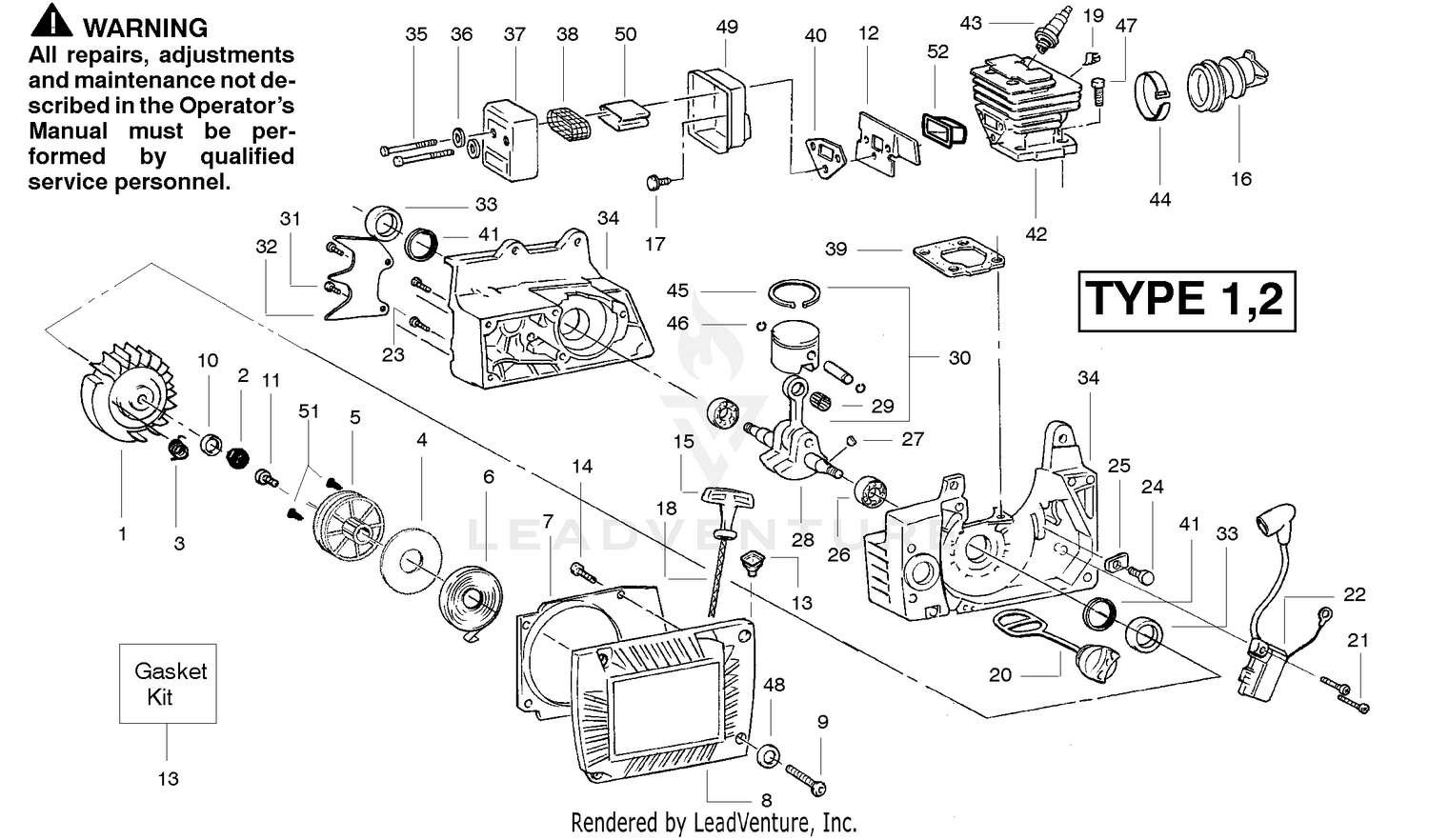

Engine Type 1-2
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 1 | 530054182 | FLYWHEEL ASSY This part replaces 530069890. Price: $29.99 |
| 2 | 530049819 | Nut-Flywheel Price: $1.99 |
| 2 | 93-8806 | WASHER-HARDENED Price: $1.62 |
| 3 | 140-6221 | LINK AND BUSHING ASSEMBLY This part replaces 16-9759. Price: $70.43 |
| 3 | 530023817 | Spring-Starter Dog Price: $1.99 |
| 4 | 530016242 | Washer Price: $2.99 |
| 4 | 93-6981 | SPACER Price: $4.69 |
| 5 | 3231-40 | BOLT-CARR, SHORT NECK Price: $1.27 |
| 5 | 530053728 | Starter Pulley Price: $13.50 |
| 6 | 115-4263 | PLATE-SIDE, RH Price: $329.24 |
| 6 | 545008012 | SPRING This part replaces 530042087. Price: $5.99 |
| 7 | 115-4260 | PLATE-SIDE, LH Price: $329.24 |
| 7 | 530052435 | Baffle Plate Price: $1.99 |
| 8 | 112-8936 | TUBE-SUPPORT Price: $46.12 |
| 8 | 530049938 | Fan Housing Ass'y. Price: $11.99 |
| 9 | 112-8935 | FRAME-CENTER Price: $455.11 |
| 9 | 530015812 | Screw Price: $1.99 |
| 10 | 530015441 | Washer-Conical Price: $1.99 |
| 11 | 530015920 | Screw Price: $1.99 |
| 12 | 110-4058 | BRACKET-CHAIN Price: $32.43 |
| 12 | 530053595 | Muffler Back Plate Price: $2.99 |
| 14 | 530015241 | Screw Price: $1.99 |
| 15 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 | 530056422 | Handle-Starter This part replaces 530049797. Price: $1.99 |
| 16 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 16 | 530030202 | Boot-Intake Price: $12.99 |
| 17 | 3234-11 | SCREW-HHF Price: $1.23 |
| 17 | 530016291 | Screw Price: $1.99 |
| 18 | 107-2979 | BOLT-SHOULDER Price: $3.94 |
| 18 | 530069919 | Rope Kit Price: $2.99 |
| 19 | 530015696 | Clip Price: $0.99 |
| 21 | 530015425 | Screw This part replaces 530015708. Price: $0.99 |
| 22 | 530039128 | Ignition Module Price: $36.99 |
| 23 | 530015707 | Screw Price: $1.99 |
| 24 | 530015306 | Screw Price: $1.99 |
| 25 | 530027264 | Clamp Price: $1.99 |
| 26 | 530032093 | Crankshaft Bearing Price: $7.99 |
| 27 | 530002595 | Flywheel Key Price: $1.99 |
| 28 | 530027143 | Crankshaft & Rod Ass'y. Price: $129.99 |
| 29 | 530032111 | Piston Pin Bearing Price: $12.99 |
| 31 | 530015875 | Screw Price: $1.99 |
| 32 | 952027846 | Spur Price: Call Us |
| 33 | 530019146 | Crankshaft Seal Price: $2.99 |
| 34 | 530069893 | Crankcase Ass'y. Price: $64.99 |
| 35 | 530016259 | Screw Price: $2.99 |
| 36 | 530015722 | Washer Price: $1.99 |
| 37 | 530053465 | Muffler Cover Price: $4.99 |
| 38 | 530030205 | Spark Arrestor Screen Price: $3.99 |
| 39 | 530069487 | Gasket Kit Price: $6.99 |
| 40 | 530069487 | Muffler Gasket Price: $6.99 |
| 41 | 530001516 | Snap Ring Price: $1.99 |
| 42 | 530403749 | Cylinder Ass'y. Price: $59.99 |
| 43 | 952030249 | Spark Plug (RCJ-6Y) This part replaces 952030164. Price: $3.99 |
| 44 | 530027285 | Clamp Ass'y. Price: $2.99 |
| 45 | 530030176 | Piston Ring Price: $3.99 |
| 46 | 530015697 | Retainer Price: $1.99 |
| 47 | 530001624 | Screw Price: $1.99 |
| 48 | 530015629 | Washer Price: $1.99 |
| 49 | 530053596 | Muffler Body Price: $5.99 |
| 50 | 530049362 | Muffler Diffuser Price: $3.99 |
| 51 | 530016080 | Screw Price: $1.99 |
| 52 | 530053710 | Exh Port Insulatora Price: $2.99 |
