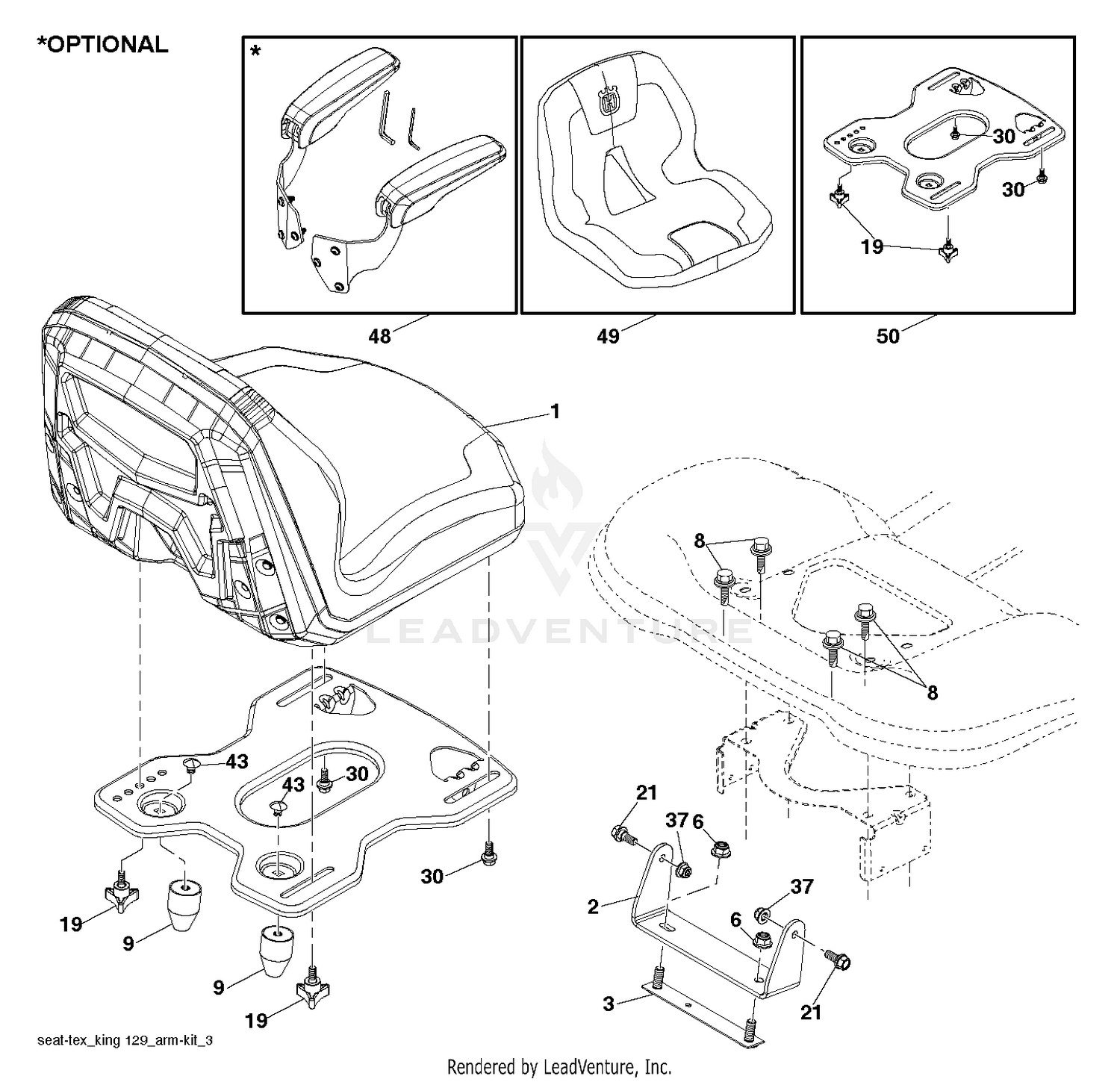

SEAT 2
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-6001 | HUB ASM Price: $116.39 |
| 1 | 597658101 | Seats Price: $249.99 |
| 2 | 597329902 | Brackets Price: $14.99 |
| 2 | 94-7285 | SEAL Price: $13.38 |
| 3 | 254-62 | BEARING-ROLLER, CONE Price: $12.61 |
| 3 | 590777602 | BRACKET ASSEMBLY REINFORCEMENT Price: $8.99 |
| 4 | HDW01814 | WASHER,FLAT,1.06X1.75X.12,YZN This part replaces 85-5770. Price: $1.65 |
| 5 | 3272-18 | PIN-COTTER Price: $0.54 |
| 6 | 119-6004 | CAP-DUST Price: $7.12 |
| 6 | 521996502 | GSPW Nuts Price: $2.99 |
| 7 | 119-6005 | NUT-SLOTTED, HEX Price: $22.60 |
| 8 | 532171877 | BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 | 597785101 | Bumpers Price: $14.99 |
| 19 | 597783101 | GSPW Knobs Price: $3.99 |
| 21 | 596240701 | Bolts Price: $3.99 |
| 30 | 597781801 | Hardware Price: $3.99 |
| 37 | 594944401 | NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 43 | 597869301 | Hardware Price: $2.99 |
| 49 | 597959401 | Seats Price: $109.99 |
| 50 | 598001601 | Service Kit Price: $64.99 |
