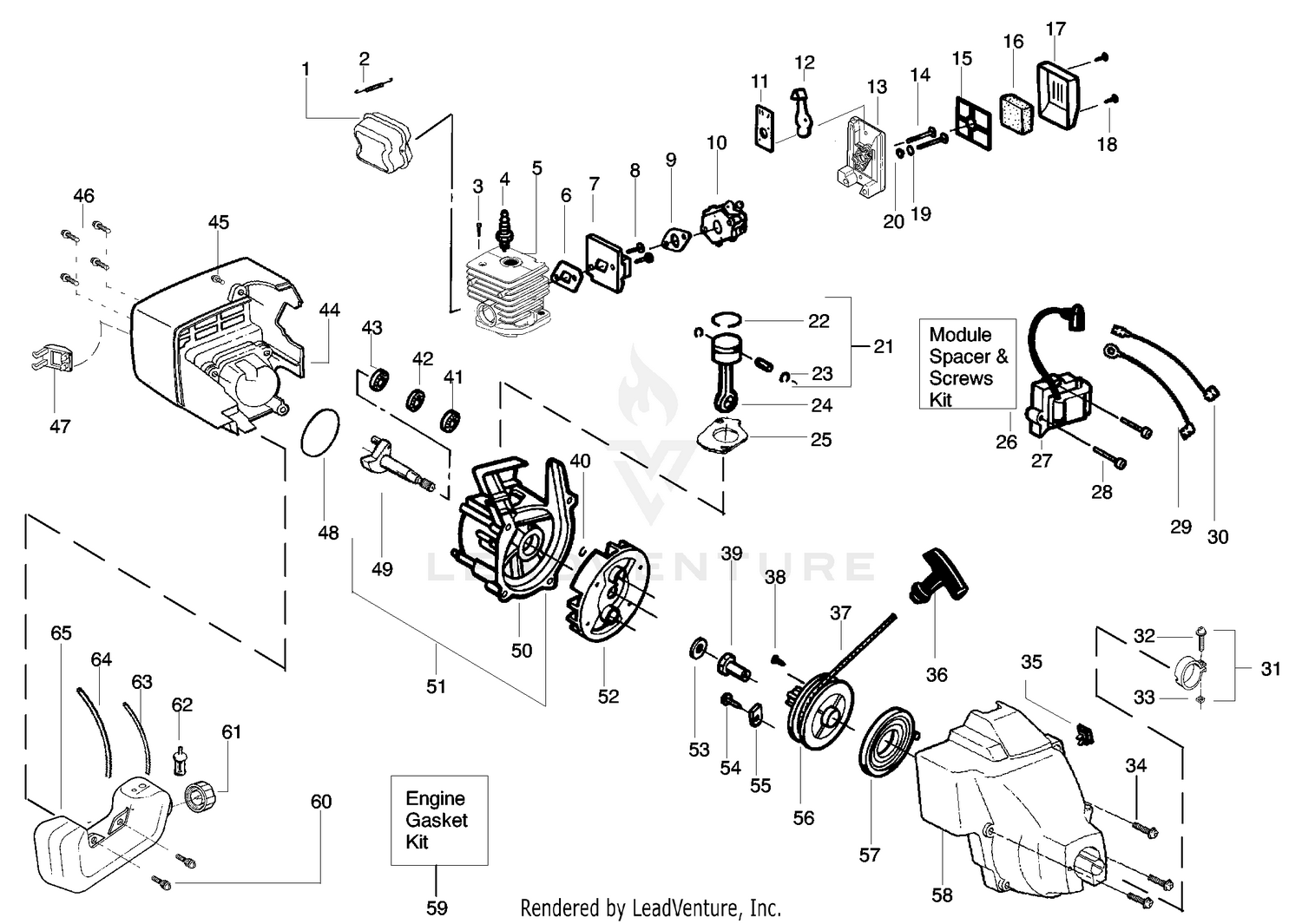

| Ref | Part Number | Description |
|---|
| 1 |
X-25-53 |
Washer Price: Call Us |
| 2 |
530042088 |
Spring-Muffler Price: $1.99 |
| 2 |
X-132-2 |
Screw-H.C. Price: Call Us |
| 3 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 3 |
X-132-6 |
Screw Price: Call Us |
| 4 |
235652 |
BaffLe side air Price: Call Us |
| 4 |
952030249 |
Spark Plug (RCJ-6Y) This part replaces 952030164. Price: $3.99 |
| 5 |
236676 |
Baffle cylinder Price: Call Us |
| 5 |
530012416 |
Cylinder This part replaces 530071359. Price: $17.99 |
| 6 |
236865 |
Housing, Blower Price: Call Us |
| 6 |
530071363 |
Gasket-Cyl/Carb.(kit) Price: $5.99 |
| 7 |
530057634 |
Adapter-Carb. Price: $8.99 |
| 8 |
530016014 |
Screw Price: $1.99 |
| 9 |
530071363 |
Gasket-Carb.(kit) Price: $5.99 |
| 10 |
530071635 |
Kit - Carburetor Ass'y (WT-631) Price: $54.99 |
| 11 |
530038747 |
Plate-Choke Mounting Price: $1.99 |
| 12 |
530038686 |
Shutter-Choke Price: $1.99 |
| 13 |
530052431 |
Box-Air Price: $1.99 |
| 14 |
530016393 |
Screw Price: $3.33 |
| 15 |
530036569 |
Plate - Filter Support Price: $1.99 |
| 16 |
530036575 |
Foam-Air Filter Price: $1.99 |
| 17 |
530036568 |
Cover-Air Filter Price: $1.99 |
| 18 |
530016349 |
Screw Price: $1.99 |
| 19 |
530015852 |
Spacer-Choke Price: $1.99 |
| 20 |
530015254 |
Washer Price: $1.99 |
| 22 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 23 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 24 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 25 |
530071363 |
Gasket-Cylinder (kit) Price: $5.99 |
| 26 |
530071731 |
Kit-Module Spacer & Screws Price: $4.99 |
| 27 |
530055160 |
Module-Ignition Price: $34.99 |
| 28 |
530016357 |
Screw Price: $1.99 |
| 29 |
581425901 |
SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 30 |
530014663 |
Assy-Leadwire Price: $5.99 |
| 32 |
530016381 |
Screw-Nose Cone Price: $2.99 |
| 33 |
530016382 |
Nut-Nose Cone Price: $2.99 |
| 34 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 35 |
530071356 |
Kit-Momentary Switch Price: $4.99 |
| 36 |
530027569 |
Handle-Starter Price: $1.99 |
| 37 |
530069232 |
Kit - Rope Price: $3.99 |
| 38 |
530016392 |
Screw Price: $1.99 |
| 39 |
530038604 |
Coupling-Drive Price: $1.99 |
| 40 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 41 |
530055728 |
Bearing-Outer Price: $6.99 |
| 42 |
530071615 |
Kit-C'case Seal Price: $4.99 |
| 43 |
530032125 |
Bearing-Inner Price: $11.99 |
| 44 |
530056543 |
Shroud-Rear Price: $8.99 |
| 45 |
530015934 |
Screw Price: $1.99 |
| 46 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 47 |
530054536 |
Guard-Muffler Price: $1.99 |
| 48 |
530071363 |
O-Ring-C'case (kit) Price: $5.99 |
| 49 |
530054753 |
Assy-Crankshaft Price: $27.99 |
| 52 |
545221701 |
FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 53 |
530015828 |
Washer-Flat Price: $1.99 |
| 54 |
530015775 |
Screw Price: $1.99 |
| 55 |
530027523 |
Retainer Price: $2.99 |
| 57 |
545008010 |
STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 58 |
530071525 |
KIT-Fan Hsg. Assy. Price: $22.99 |
| 60 |
530016379 |
Retainer-Fuel Tank Price: $2.99 |
| 61 |
530014347 |
Assy-Fuel Cap w/ret. Price: $4.99 |
| 62 |
530095646 |
Assy-Fuel Pickup Price: $2.99 |
| 63 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 64 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
