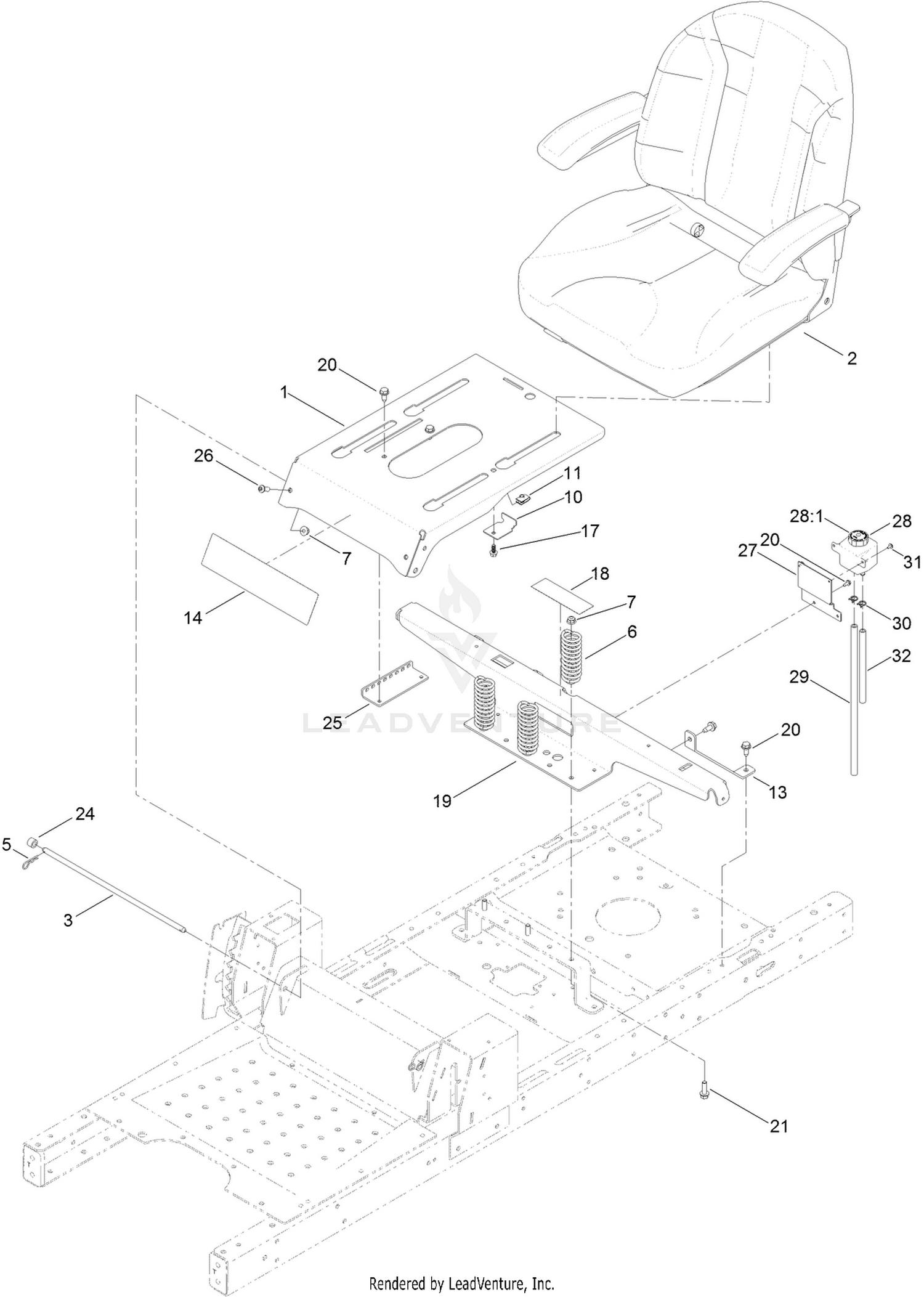

| Ref | Part Number | Description |
|---|
| 1 |
136-5571-03 |
PAN-SEAT, DELUXE This part replaces 132-0919-03. Price: $45.33 |
| 2 |
131-4147 |
SEAT ASM Price: $364.11 |
| 3 |
115-4966 |
ROD-STOP Price: $12.44 |
| 5 |
3290-250 |
PIN-COTTER Price: $5.59 |
| 6 |
92-7054 |
SPRING-COMPRESSION Price: $13.32 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 10 |
138-7214 |
BRACKET-STOP, SEAT This part replaces 131-1038. Price: $1.46 |
| 11 |
107069 |
CLIP Price: $1.79 |
| 13 |
119-3431-03 |
SUPPORT-TANK, REAR Price: $3.68 |
| 14 |
131-3660 |
DECAL-TIMECUTTER Price: $4.18 |
| 17 |
99-6810 |
SCREW-HHF Price: $3.09 |
| 18 |
106-8717 |
DECAL-SERVICE, CE Price: $4.87 |
| 19 |
131-1039-03 |
SUPPORT-POD, WIDE Price: $80.40 |
| 20 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 21 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 24 |
1-413088 |
BUSHING-LEVER, LIFT Price: $6.74 |
| 25 |
131-4008-03 |
BRACKET-LATCH, SEAT Price: $3.98 |
| 26 |
131-4080 |
SCREW-HSBH Price: $0.39 |
| 27 |
120-7970-03 |
MOUNT-TANK Price: $16.73 |
| 28 |
109-2250 |
TANK-HYD Price: $42.48 |
| 29 |
121-2951 |
HOSE-OVERFLOW Price: $6.15 |
| 30 |
117-1193 |
CLAMP-HOSE Price: $0.85 |
| 31 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
