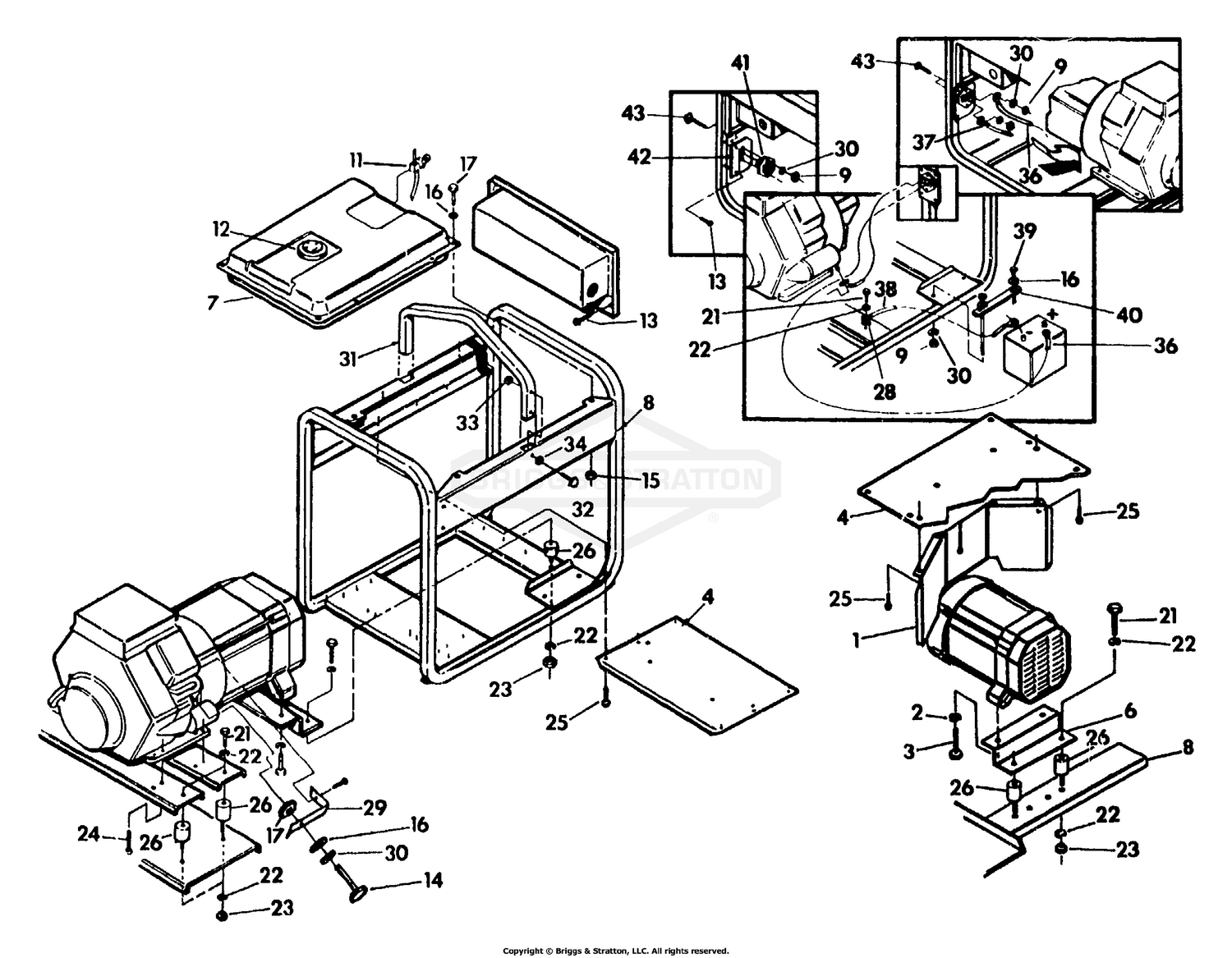

| Ref | Part Number | Description |
|---|
| 1 |
78513 |
Heat deflector shield Price: Call Us |
| 2 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 3 |
703988 |
CAPSCREW M8-1.25X16 This part replaces 39253. Price: $2.86 |
| 4 |
77316 |
Heat shield (gas tank) Price: Call Us |
| 5 |
77304 |
Engine support Price: Call Us |
| 6 |
78512GS |
SPPRT, ALT This part replaces 78512. Price: Call Us |
| 7 |
79568 |
Fuel tank Price: Call Us |
| 8 |
78508A |
V-Twin cradle Price: Call Us |
| 11 |
75938 |
Fuel shutoff valve Price: $12.67 |
| 12 |
76272 |
Gauge fuel cap Price: Call Us |
| 13 |
75494 |
No. 10-24 x 5/8" Self-drilling screw Price: $30.20 |
| 14 |
42568GS |
SCREW-M8 x 16 This part replaces 42568. Price: $3.06 |
| 15 |
52857GS |
NUT-M6 FLANGE This part replaces 52857. Price: $3.06 |
| 18 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 19 |
703988 |
CAPSCREW M8-1.25X16 This part replaces 39253. Price: $2.86 |
| 21 |
84010756 |
WHEEL ASSEMBLY This part replaces 23152. Price: $405.07 |
| 22 |
703454 |
LOCKWASHER, SPLIT 3/8 This part replaces 22237. Price: $2.95 |
| 23 |
5022241 |
DECAL, ProCut Z Text This part replaces 22241. Price: Call Us |
| 24 |
2828635SM |
SCREW-HEX WSHR HD TAP This part replaces 75246. Price: $4.26 |
| 25 |
63036GS |
CRIMPTITE, #8-18X1/4L This part replaces 63036. Price: $2.25 |
| 26 |
35097GS |
MNT, VBRTN, 30 DURO This part replaces 35097. Price: $15.30 |
| 28 |
22261GS |
WSHR, SHKPRF, INT 3/8 This part replaces 22261. Price: $2.49 |
| 29 |
78807 |
Wire shield Price: Call Us |
| 30 |
5022097SM |
CAP This part replaces 22097. Price: $2.75 |
| 31 |
80809 |
Lifting bar Price: Call Us |
| 32 |
39287GS |
SCREW This part replaces 39287. Price: $3.20 |
| 33 |
52858GS |
NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20 |
| 35 |
78282 |
V-Twin Engine (15 hp) Price: Call Us |
| 36 |
11553621GS |
WIRE-A, 6AWG, RED, #13, 330MM This part replaces 11553621. Price: $20.60 |
| 37 |
11453621 |
Starter to switch assembly cable Price: Call Us |
| 38 |
11653621GS |
WIRE-A, 8AWG, BLK, #0, 279MM This part replaces 11653621. Price: $14.05 |
| 39 |
45000GS |
HHCS, 1/4-20 X 7 This part replaces 45000. Price: $8.15 |
| 40 |
5044951B |
CONTROL, Hydro, Right This part replaces 44951. Price: $43.40 |
| 41 |
78289GS |
BRACKET, STARTER SWITCH This part replaces 78289. Price: Call Us |
| 42 |
77282 |
Starter switch Price: Call Us |
